As electric vehicles (EVs) rapidly move from niche to mainstream, the need for efficient, convenient, and reliable charging solutions has never been greater. While Level 1 chargers—those that plug into a standard 120-volt wall outlet—introduced many early adopters to the concept of home charging, they are simply too slow for today’s lifestyle demands and larger battery capacities. Enter the Level 2 charger: the workhorse of the EV charging ecosystem.
Operating on a 240-volt circuit—the same type of circuit that powers ovens, dryers, and other high-powered appliances—Level 2 chargers provide a much faster, safer, and more practical way to keep EVs ready for the road. Whether installed at home, at the workplace, or in public locations like shopping malls and parking garages, these chargers strike the perfect balance of speed, cost, and infrastructure requirements.
In fact, for most EV owners in the United States and across North America, Level 2 charging has become the standard. Not only do these chargers ensure that vehicles are fully powered overnight, but they also enable all-day top-ups and efficient charging while vehicles sit idle during work hours or errands.
But how long does it actually take to charge an EV with a Level 2 EV charger? What factors influence that time? And what makes Level 2 the go-to option compared to slower Level 1 charging and costly DC fast charging? This article explores these questions in detail, offering insights into charging times, influencing factors, benefits, and why Level 2 charging is crucial for the future of electric mobility.
The time required for a full charge depends primarily on the vehicle’s battery capacity and the maximum rate at which it can accept power. Generally, charging an EV from empty (0%) to full (100%) with a Level 2 charger takes between 5 and 13 hours.
This wide range is due to several variables, including battery size, state of charge, the vehicle’s on-board charger limits, and even environmental conditions. While the average commuter may not often need a complete 0% to 100% recharge, understanding these factors is essential to setting realistic expectations about charging times.
The most important determinant of charging time is the battery size, measured in kilowatt-hours (kWh). A vehicle with a 60 kWh battery will generally charge faster than one with a 100 or 130 kWh battery when using the same charging equipment, simply because there’s less “fuel tank” to fill.
For example:
A compact EV with a 60 kWh battery might fully charge in 6–8 hours on a Level 2 charger.
A large SUV or electric truck with a 100 kWh battery could take 10–13 hours.
As automakers continue increasing EV range by installing bigger batteries, the role of Level 2 chargers in ensuring practical overnight charging becomes even more critical.
Charging time also depends on how full the battery is when you plug in. Starting at 50% SoC usually means about half the charging time compared to starting at 0%. However, the relationship is not linear.
EV batteries follow a charging curve:
Fastest charging occurs between 20% and 80%.
Beyond 80%, the vehicle’s Battery Management System (BMS) deliberately slows charging to protect the cells from overheating and long-term degradation.
This tapering effect means that charging the final 20% (from 80% to 100%) can take nearly as long as charging the first 60% (from 20% to 80%). For daily use, most EV drivers avoid charging all the way to 100% unless planning a long trip.
Every EV comes equipped with an on-board charger (OBC)—a built-in component that converts the alternating current (AC) from your home or workplace outlet into the direct current (DC) the battery stores.
The OBC has a maximum power rating, which limits how quickly the car can accept power from a Level 2 charger. For instance:
A Level 2 charger may deliver 11.5 kW, but if the vehicle’s OBC is capped at 7.7 kW, then the car will only charge at 7.7 kW.
This “bottleneck” is often misunderstood but critical to keep in mind when selecting a Level 2 charger. Buying a more powerful charger than your EV can accept won’t increase charging speed, though it may future-proof your home setup if you plan to upgrade vehicles later.
Level 2 chargers typically range from 3.3 kW to 19.2 kW, depending on the unit and the electrical infrastructure available. The most common residential installations are in the 7.2 kW to 11.5 kW range, balancing cost and charging speed.
To achieve these higher power levels safely, chargers must be installed on dedicated 240-volt circuits, usually rated between 30 and 60 amps. Professional installation by a licensed electrician is mandatory both for safety and to comply with local electrical codes.
Other variables—such as temperature—also affect charging speed. Cold weather slows down charging as batteries are less efficient at low temperatures. Similarly, charging multiple EVs simultaneously on the same household circuit can reduce available power.
The most obvious advantage of Level 2 charging is speed. Compared to Level 1 chargers, which can take over 24 hours to fully charge some EVs, Level 2 chargers reduce that time to just 5–13 hours. For many drivers, this means plugging in at night and waking up to a full battery every morning.
Having a Level 2 charger at home transforms your garage or driveway into a personal fueling station. No more reliance on public charging stations, no waiting in line, and no disruptions to your daily schedule.
For commuters and families with busy routines, this convenience is invaluable. A quick top-up during dinner or while running errands can provide dozens of extra miles of range.
While DC fast charging offers even faster speeds, it is significantly more expensive both to install and to use regularly. Public fast charging rates can be two to three times higher than the cost of home electricity.
Level 2 chargers hit the sweet spot of affordability and practicality, allowing EV owners to minimize charging costs while still enjoying rapid charging.
Charging exclusively on DC fast chargers can accelerate battery degradation over time. In contrast, Level 2 charging provides a balanced, moderate charging rate that is far gentler on the battery, helping maintain long-term health and performance.
Virtually every EV on the market today supports Level 2 charging. Combined with the availability of universal connector standards (such as J1772 in North America), this ensures that Level 2 chargers are highly versatile and future-proof.

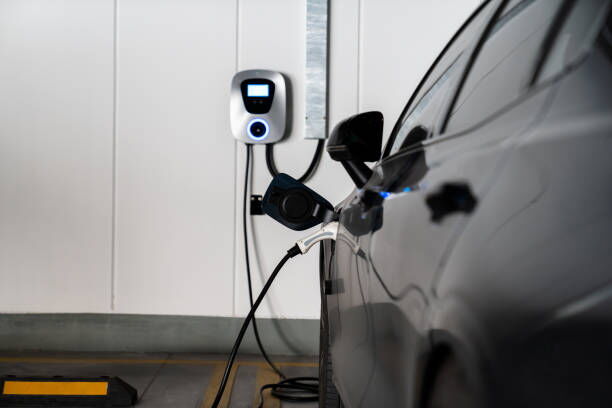

At Home: Ideal for overnight charging, offering maximum convenience.
At Work: Enables all-day top-ups, perfect for employees with longer commutes.
Public Locations: Shopping centers, hotels, parking garages, and transit hubs use Level 2 chargers to serve customers while their vehicles remain parked for hours.
These diverse applications highlight why Level 2 chargers are widely considered the backbone of EV infrastructure.
Installing a Level 2 charger requires:
A dedicated 240-volt circuit.
An electrical panel with sufficient capacity.
Professional installation by a licensed electrician.
Some modern chargers also come with Wi-Fi or Bluetooth connectivity, enabling smart features like:
Scheduling charging to off-peak hours for lower electricity rates.
Monitoring real-time energy usage.
Integrating with solar panels or home energy systems.
These features not only enhance convenience but also support sustainable energy management.
As EV adoption accelerates, the importance of reliable, accessible charging infrastructure cannot be overstated. While DC fast charging will remain crucial for long-distance travel, the vast majority of charging will continue to happen at home or work—where Level 2 chargers shine.
By offering a practical balance of speed, affordability, and compatibility, Level 2 chargers empower everyday EV use. They reduce range anxiety, lower costs, and encourage more drivers to make the switch to electric.
In essence, the transition to sustainable mobility depends not only on advances in EV technology but also on widespread access to Level 2 charging.
Level 2 chargers are far more than just an upgrade from basic Level 1 outlets—they are the workhorses of the EV world. They deliver the speed, safety, and convenience needed for electric vehicles to become a true replacement for traditional gasoline-powered cars.
By understanding charging times, the factors that influence them, and the many benefits of Level 2 charging, EV owners can make informed decisions that enhance their driving experience while supporting the broader shift to clean, sustainable transportation.
As battery sizes grow and EV adoption accelerates, Level 2 chargers will remain a cornerstone of the charging ecosystem, powering the road to a greener future.
