What Is a Level 3 EV Charger?
On this page
A Level 3 EV charger, often referred to as a DC fast charger, is a cutting-edge device designed to rapidly recharge electric vehicle (EV) batteries. Unlike Level 1 and Level 2 chargers, which rely on alternating current (AC) power, Level 3 chargers deliver direct current (DC) directly to the vehicle's battery. This allows for significantly faster charging times, making Level 3 EV chargers an ideal solution for long-distance travelers, commercial fleets, and high-traffic public charging stations.
However, Level 3 chargers differ in more ways than just speed. They are less standardized compared to their Level 1 and Level 2 counterparts, introducing unique considerations for EV owners and charging infrastructure providers.
Level 3 charging stations typically offer power levels ranging from 50 kW to over 350 kW. However, not all EVs can take full advantage of the higher power outputs, as charging speed depends on the vehicle’s battery capacity and thermal management system.
Given these differences, it’s essential for EV owners to ensure compatibility between their vehicle and the Level 3 charging station. Some stations offer multiple connector types, while others are exclusive to specific standards.
It’s worth noting that the higher cost reflects the value of convenience and speed provided by Level 3 chargers. For comparison, Level 1 and Level 2 charging at home or public stations is generally much cheaper, often costing just a few dollars per session. However, these slower options are not ideal for on-the-go charging, especially during long trips.
However, Level 3 chargers differ in more ways than just speed. They are less standardized compared to their Level 1 and Level 2 counterparts, introducing unique considerations for EV owners and charging infrastructure providers.
How Does Level 3 Charging Work?
Level 3 chargers bypass the vehicle’s onboard charger to deliver DC power straight to the battery. This is why they are capable of charging an EV to 80% capacity in as little as 20-40 minutes, depending on the vehicle and charger specifications. The speed of Level 3 chargers makes them invaluable in time-sensitive scenarios, such as road trips or fleet operations.Level 3 charging stations typically offer power levels ranging from 50 kW to over 350 kW. However, not all EVs can take full advantage of the higher power outputs, as charging speed depends on the vehicle’s battery capacity and thermal management system.
Types of Level 3 Charging Connectors
One of the key challenges with Level 3 chargers is the lack of universal connector standards. While Level 1 and Level 2 chargers predominantly use the SAE J1772 (J Plug) connector, Level 3 chargers utilize three main connector types:Tesla Plug
Tesla vehicles are equipped with proprietary connectors that work exclusively with Tesla’s Supercharger network unless adapters are used. Tesla Superchargers are among the fastest Level 3 charging options available, with some stations offering up to 250 kW of power. Tesla has also begun making its network more accessible to non-Tesla EVs by introducing CCS adapters at select locations.CHAdeMO Plug
CHAdeMO, short for "CHArge de MOve," is a standard developed in Japan and is widely used by Asian automakers like Nissan and Mitsubishi. While it offers reliable fast charging, its popularity has waned in favor of the CCS standard in many regions. CHAdeMO connectors support bidirectional charging, enabling vehicle-to-grid (V2G) and vehicle-to-home (V2H) applications, which are key for renewable energy integration.Combined Charging System (CCS) Plug

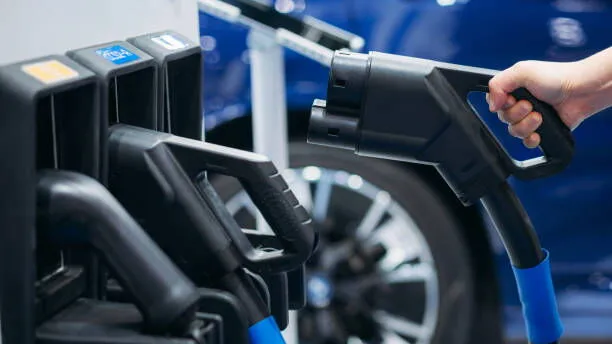

The CCS, often referred to as the “Combo” plug, builds on the J Plug standard by adding two additional DC pins for fast charging. It has become the dominant Level 3 connector in Europe and North America, as it is supported by major automakers like BMW, Volkswagen, and Ford. CCS chargers can deliver power levels of up to 350 kW, making them a versatile choice for a wide range of EVs.Given these differences, it’s essential for EV owners to ensure compatibility between their vehicle and the Level 3 charging station. Some stations offer multiple connector types, while others are exclusive to specific standards.
Cost of Charging with Level 3 Chargers
Level 3 charging is a premium service compared to Level 1 and Level 2 options. The cost of a full Level 3 charging session typically ranges from $25 to $50, depending on factors such as the charger’s power output, location, and the amount of electricity required. Pricing models may vary, with some stations charging per minute, per kilowatt-hour (kWh), or a flat fee for a session.It’s worth noting that the higher cost reflects the value of convenience and speed provided by Level 3 chargers. For comparison, Level 1 and Level 2 charging at home or public stations is generally much cheaper, often costing just a few dollars per session. However, these slower options are not ideal for on-the-go charging, especially during long trips.
Advantages of Level 3 Chargers
Ultra-Fast Charging: Charging an EV to 80% in under an hour is a game-changer for drivers, especially those on long journeys or with limited time.Convenient Locations
Level 3 chargers are strategically placed along highways, at rest stops, and in urban centers, ensuring accessibility where drivers need them most.
Supports High-Powered EVs
With increasing battery capacities in modern EVs, Level 3 chargers are essential to reduce downtime and maintain efficiency.
Challenges and Limitation
1. Higher Costs
The advanced technology and infrastructure required for Level 3 charging make it more expensive for both users and providers. This may limit widespread adoption in residential areas or less trafficked locations.
2. Compatibility Issues
The lack of a universal standard for connectors can create challenges for EV owners, requiring adapters or restricting access to certain charging stations.
3. Limited Availability
While growing rapidly, Level 3 charging networks are still not as ubiquitous as Level 2 stations. Expansion is often hindered by high installation costs and grid capacity constraints.
4. Battery Health Concerns
Frequent use of Level 3 chargers can accelerate battery degradation over time, as the intense charging speeds generate more heat compared to slower charging methods. To mitigate this, many EVs have built-in safeguards to manage battery temperature during charging.
The Future of Level 3 Charging
As EV adoption surges, the demand for Level 3 charging infrastructure is expected to grow exponentially. Innovations in battery technology, grid integration, and charging station design will likely drive down costs and improve accessibility. Additionally, governments and private enterprises worldwide are investing heavily in expanding charging networks, particularly in underserved regions.
With advancements such as solid-state batteries and ultra-fast chargers capable of delivering over 500 kW, the future of Level 3 charging is poised to become even more efficient and user-friendly. Furthermore, interoperability initiatives, like the introduction of CCS adapters for Tesla vehicles, are reducing compatibility barriers, paving the way for a more seamless EV charging experience.
With advancements such as solid-state batteries and ultra-fast chargers capable of delivering over 500 kW, the future of Level 3 charging is poised to become even more efficient and user-friendly. Furthermore, interoperability initiatives, like the introduction of CCS adapters for Tesla vehicles, are reducing compatibility barriers, paving the way for a more seamless EV charging experience.
Conclusion
A Level 3 EV charger represents the pinnacle of charging technology, offering unparalleled speed and convenience for electric vehicle owners. Despite its higher costs and compatibility challenges, it plays a critical role in accelerating the transition to a sustainable, electrified transportation system. As charging networks continue to expand and evolve, Level 3 chargers will become an indispensable component of the EV ecosystem, catering to the needs of modern drivers and supporting the global push towards greener energy solutions.
