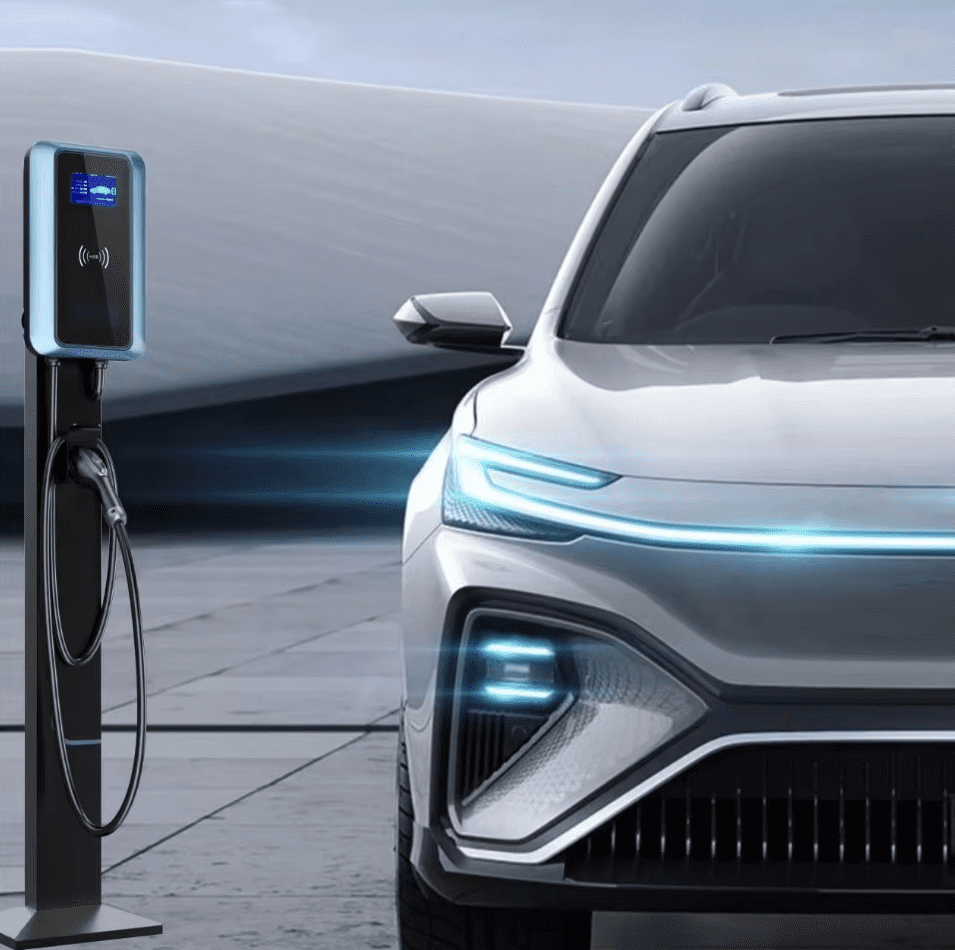

Portable AC EV Fast Charger, OCPP1.6, 7kW, 32A, 220V
Key Specifications / Features
We supply high-quality portable AC EV chargers that deliver 7kW of output power, adhering to the OCPP1.6 interface standard. Designed with a 32A rated input/output current, our chargers ensure efficient and robust charging for your electric vehicle. The IP54 rating guarantees durability and protection against dust and water, making them suitable for various environments. The 5-meter charging plug provides ample length for convenient use. As a trusted supplier from China, we are committed to innovation and quality, offering portable chargers that meet the modern demands of electric vehicle owners.
- Model No.: EVCC-ACEVC-20240808-02
- Hits: 99
- Categories: AC EV Chargers
Detail Information
On this page
Portable AC EV Fast Charger, OCPP1.6 Interface Standard, 7kW, 32A Intput/Output Current.Product Item: Portable 7kW AC EV Fast Charger
Output Power: 7kW
Interface Standard: OCPP1.6
Output Current: AC
Input Voltage: 220V±10%
Rated Intput Current: 32A
Rated Output Current: 32A
Rated Output Voltage: 220V±10%
Way of Communication: Ethernet/4G Optional/Offline
Screen Size: 4.3-inch Color Touch Screen
Length of Charging Plug: 5M
Size(H*W*D): 326*220*97mm
Weight: ≤6kg
IP Degree: IP54
Cooling: Natural Cooling
Operating Temperature: -20°C to +50°C
Storage Temperature: -20°C to +50°C
Multiple Protection: With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection.
Output Power: 7kW
Interface Standard: OCPP1.6
Output Current: AC
Input Voltage: 220V±10%
Rated Intput Current: 32A
Rated Output Current: 32A
Rated Output Voltage: 220V±10%
Way of Communication: Ethernet/4G Optional/Offline
Screen Size: 4.3-inch Color Touch Screen
Length of Charging Plug: 5M
Size(H*W*D): 326*220*97mm
Weight: ≤6kg
IP Degree: IP54
Cooling: Natural Cooling
Operating Temperature: -20°C to +50°C
Storage Temperature: -20°C to +50°C
Multiple Protection: With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection.
