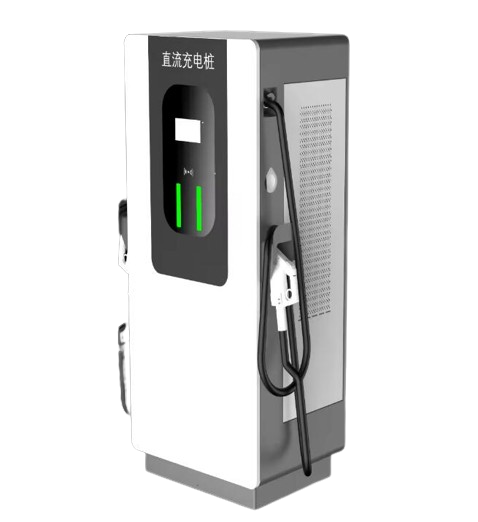

Floor-Mounted 2 Plug DC EV Charger,160kW, 250A, 150-1000V DC
Key Specifications / Features
Model no.: EVCC-DCEVC-20240808-08 hits: 2
We are a leading supplier of floor-mounted DC EV chargers, offering robust charging solutions with a 160kW output current. Our chargers are designed to comply with the OCPP1.6 interface standard, ensuring seamless integration with modern EV charging infrastructures. With an input voltage of 380V±10% and an output voltage range of 150-1000VDC, our chargers provide fast and efficient charging for a variety of electric vehicles. Engineered for reliability and performance, these chargers are built to meet the highest standards, making them the ideal choice for electric vehicle operators seeking dependable and powerful charging solutions.
Request a quoteDetail Information
160kW Floor-Mounted DC EV Charger, 250A Output Current, 150-1000V DC, OCPP1.6.
Product Item: Floor-Mounted DC EV Charger
Interface Standard: OCPP1.6
Output Power: 160kW
Input Voltage: 380V±10%
Rated Output Voltage: 150-1000V DC
Output Max Current of a Single Plug: 250A
Output Constant Power: 300-1000V DC
Rated Frequency: 45-60Hz
Output Efficiency: 96%
Screen Size: 7-inch
Way of Communication: Ethernet/4G Optional
Length of Charging Plug: 5 meters * 2
Size(H*W*D): 1800*730*514mm
Operating Temperature: -25°C to +55°C
Storage Temperature: -35°C to +65°C
Multiple Protection: With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection.
Product Item: Floor-Mounted DC EV Charger
Interface Standard: OCPP1.6
Output Power: 160kW
Input Voltage: 380V±10%
Rated Output Voltage: 150-1000V DC
Output Max Current of a Single Plug: 250A
Output Constant Power: 300-1000V DC
Rated Frequency: 45-60Hz
Output Efficiency: 96%
Screen Size: 7-inch
Way of Communication: Ethernet/4G Optional
Length of Charging Plug: 5 meters * 2
Size(H*W*D): 1800*730*514mm
Operating Temperature: -25°C to +55°C
Storage Temperature: -35°C to +65°C
Multiple Protection: With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection.
