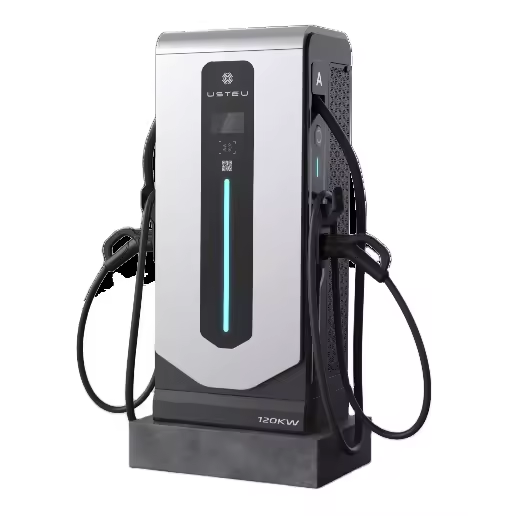

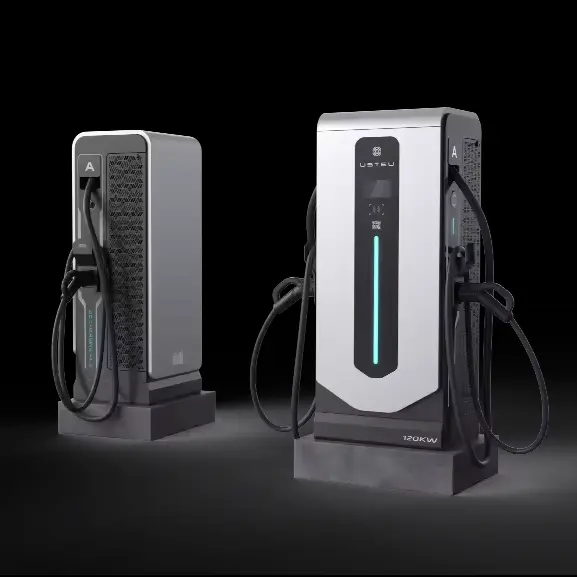

Floor-Mounted DC EV Charger, 120kW, Dual Plug, 200A, OCPP1.6
Key Specifications / Features
Model no.: EVCC-DCEVC-20240808-07 hits: 4
We are a top manufacturer of electric car DC EV chargers in China, providing high-performance solutions with 120kW output power. Our chargers adhere to the OCPP1.6 interface standard, ensuring seamless integration with modern EV charging networks. Designed to deliver 200A and an output voltage range of 150-1000VDC, our chargers offer fast and reliable charging for a variety of electric vehicles. With an IP55 rating, they are built to withstand challenging environmental conditions. Committed to innovation and quality, our chargers provide efficient and dependable charging, making them an ideal choice for electric vehicle owners and operators.
Request a quoteDetail Information
Floor-Mounted DC EV Charger, 120kW, 200A, IP55, OCPP1.6
Product Item: Floor-Mounted DC EV Charger
Interface Standard: OCPP1.6
Output Power: 120kW
Input Voltage: 380V±10%
Rated Output Voltage: 150-1000V DC
Output Max Current of a Single Plug: 200A
Output Constant Power: 300-1000V DC
Rated Frequency: 45-60Hz
Output Efficiency: 96%
Screen Size: 7-inch
Way of Communication: Ethernet/4G Optional
Length of Charging Plug: 2 Plug * 5 Meter
IP Degree: IP55
Size(H*W*D): 1800*730*514mm
Operating Temperature: -25°C to +55°C
Storage Temperature: -35°C to +65°C
Multiple Protection: With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection.
Product Item: Floor-Mounted DC EV Charger
Interface Standard: OCPP1.6
Output Power: 120kW
Input Voltage: 380V±10%
Rated Output Voltage: 150-1000V DC
Output Max Current of a Single Plug: 200A
Output Constant Power: 300-1000V DC
Rated Frequency: 45-60Hz
Output Efficiency: 96%
Screen Size: 7-inch
Way of Communication: Ethernet/4G Optional
Length of Charging Plug: 2 Plug * 5 Meter
IP Degree: IP55
Size(H*W*D): 1800*730*514mm
Operating Temperature: -25°C to +55°C
Storage Temperature: -35°C to +65°C
Multiple Protection: With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection.
