As electric vehicles (EVs) continue to move from niche adoption to mainstream mobility, charging infrastructure must keep pace. Among the many charging options available, one that is gaining attention is the 22 kW EV AC charger. Positioned between basic residential chargers and high-power DC fast chargers, a 22 kW AC charger offers a powerful middle ground for both home and commercial settings.
To appreciate what a 22 kW AC EV charger brings to the table, it helps to step back and distinguish between the two primary types of EV charging power: alternating current (AC) and direct current (DC).
AC charging is widely used for home, workplace, and many public charging points. It delivers electricity the same way household appliances do — the alternating current form. An EV charger equipped for AC delivers that current to the vehicle’s onboard charger, which converts it into direct current to charge the battery.
DC charging, by contrast, bypasses or supplements the vehicle’s onboard charger by converting grid AC into DC at the charging station itself. That allows for much higher power delivery and hence rapid charging, but the infrastructure is more complex and costly.
A 22 kW AC charger sits firmly in the AC charging domain — but at the high end. It offers substantially faster charging than common lower-power AC chargers while avoiding the expense and complexity of full DC fast-charging hardware.
In the context of rising EV adoption, expanding battery capacity, and growing expectations for charging convenience, 22 kW EV AC charging is quickly emerging as a compelling solution. This article explores what it is, how it works, where it can be deployed, the technical prerequisites, costs, benefits, limitations, and the future outlook.

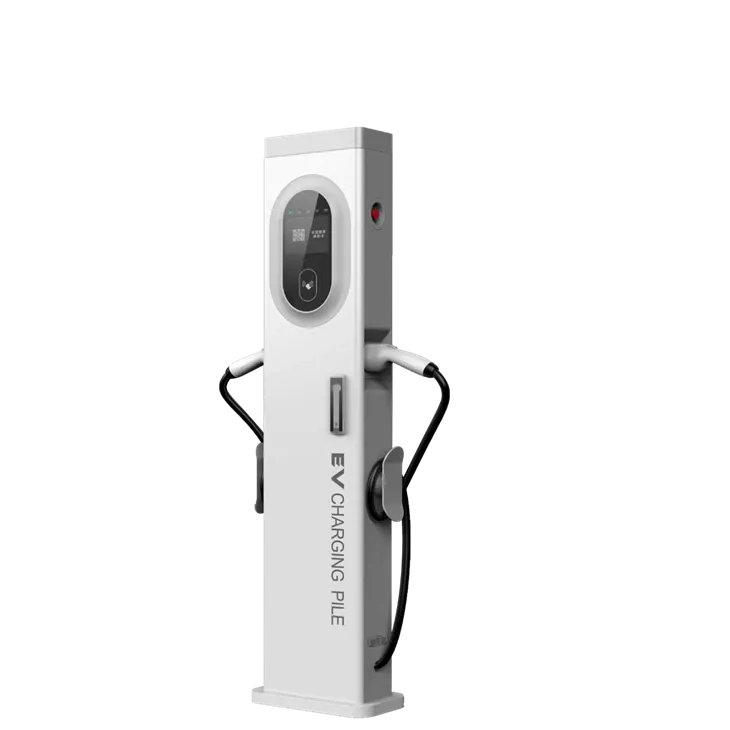

A 22 kW AC EV charger is an electric-vehicle charging station capable of supplying up to 22 kilowatts of alternating-current power to a vehicle equipped with an AC-compatible onboard charger. In practice, that means it can recharge EVs significantly faster than typical domestic chargers, which often deliver 3.7 kW or 7 kW.
Key technical and functional characteristics include:
High charging power: Up to 22 kW of AC output, roughly 3 to 4 times faster than a 7 kW charger.
Three-phase electrical compatibility: These chargers require a three-phase supply, which is more common in commercial or high-demand residential settings than in older single-phase homes.
Smart charging features: Many models support Wi-Fi or Ethernet connectivity, mobile or web app control, scheduling, usage monitoring, and load balancing.
Future-ready design: As EV battery capacities grow and faster AC charging becomes standard, 22 kW AC EV chargers offer a degree of future-proofing, reducing the need to upgrade infrastructure sooner.
Because of that higher throughput, a typical 22 kW AC EV charger can add roughly 100 to 150 kilometers of driving range per hour of charging, depending on the vehicle’s efficiency. For example, charging a 75 kWh EV battery from 20 percent to 80 percent might take just 2 to 3 hours using a 22 kW AC EV charger — compared to 8+ hours on a slower 7.4 kW unit.
That dramatic reduction in charging time can be a game-changer for homeowners, workplaces, or commercial sites that want to support frequent or daily EV charging without relying solely on overnight cycles.
One of the most compelling questions is: Can you install a 22 kW charger at home? The short answer is — yes, under the right conditions. But those conditions limit its widespread adoption in many conventional residential settings.
Here’s what you need:
Most homes in North America (including the U.S.) and the U.K. are supplied with a single-phase electrical service. Single-phase systems typically support up to around 7 kW for EV charging without major upgrades. A 22 kW EV charger requires three-phase supply, which involves three “live” wires instead of one. Homes that already have or only require minor upgrades to accommodate three-phase power are much better candidates.
The home’s distribution board or electrical service panel must be able to support the increased current. That often means a 400-volt supply (common in Europe) or equivalent three-phase voltage in other jurisdictions, plus heavier gauge cabling such as 16 mm² or 25 mm² multi-core wiring to handle sustained higher loads safely.
Not all EVs accept 22 kW AC EV charging. Many electric vehicles limit AC charging via their onboard charger to 11 kW or less. If your EV is limited to 11 kW AC intake, a 22 kW station will simply provide its maximum accepted rate — not full 22 kW. Tesla Model 3 in certain markets is an example of such a limit.
Because of the higher currents, professional installation by a licensed electrician is required. Wiring upgrades, local permits, and compliance with electrical codes may add to cost.
If you have a modern house with three-phase wiring (or can upgrade), and drive an EV with multi-phase AC charging capability, a 22 kW home charger could enable nearly “just-plug-in” convenience with far shorter charging windows than typical overnight-only solutions.
The opportunity for 22 kW AC EV chargers is arguably strongest in workplaces, apartment buildings, shopping centers, small fleets, and public charging hubs where vehicles dwell for several hours — yet demand faster turnaround than slow AC chargers allow.
Office buildings: Employees might park for 4–8 hours. A 22 kW EV charger can replenish a significant portion of battery capacity during the workday.
Apartment buildings / multi-unit dwellings (MUDs): Shared chargers in underground garages or parking lots can accelerate turnover and reduce congestion.
Retail / hospitality venues: Customers might stay 1–2 hours — faster AC charging improves convenience and enhances customer satisfaction.
Fleet operations: Light-duty fleets that return to base daily can benefit from overnight plus daytime top-ups without resorting to DC fast charging for routine operations.
In commercial settings, three-phase power is often already available or easier to justify upgrading. Because 22 kW AC EV chargers are less costly than DC fast chargers (both in hardware and ongoing maintenance), they strike a practical balance between speed, cost, and infrastructure complexity.
By delivering 3–4 times more charging power than a typical home-level AC charger, a 22 kW station can dramatically reduce charging dwell time and increase throughput.
While DC fast charging can deliver many dozens or even hundreds of kilowatts, the price tag for equipment, installation and utility connections is much higher. A 22 kW AC EV charger delivers a more moderate but still meaningful increase in speed at far lower cost and simpler installation requirements.
It works well for overnight charging, daytime top-ups, and mixed-use scenarios (e.g. vehicles parked 8+ hours, as well as short-stay charging).
Modern 22 kW EV chargers often support load-management, dynamic scheduling (e.g. based on variable electricity rates), demand response participation, and remote monitoring — helping owners optimize energy use and cost.
For site operators planning expansion, deploying several 22 kW units can scale up charging capacity without immediately jumping to high-cost DC infrastructure.
The biggest hurdle is whether the building’s wiring, panel, and utility service can safely handle the increased load. Upgrading to three-phase service (or enhancing existing three-phase capacity) is more complex than simply swapping a lower-power charger.
Even if the charging station can supply 22 kW, the EV may accept only part of that. Many EVs limit AC charging to 7 kW or 11 kW. In those cases, the extra capacity is underutilized. That can limit return-on-investment unless multiple EVs capable of 22 kW AC are present.
While cheaper than DC fast chargers, 22 kW AC stations are still more expensive than simple 7 kW units. Prospective buyers must carefully assess whether the increased throughput justifies the extra installation complexity and upfront cost.
Depending on local rate structures, high-power charging may attract demand charges or higher tariff tiers. Without intelligent load-management or scheduling, running multiple high-power chargers simultaneously could drive up electricity costs.
Codes for high-power EV charging are still evolving in many jurisdictions. Permitting, inspection, and compliance may require additional time or expense.
As EV adoption accelerates globally, stakeholders are increasingly looking for charger solutions that strike an optimal balance between cost and performance. Some of the trends influencing adoption of 22 kW AC EV charging include:
Growing battery sizes and ranges: Newer EV models are arriving with larger batteries and higher capacities. Long-range EVs can benefit more from faster AC charging to maintain user convenience without jumping to DC fast-charge all the time.
Increased workplace and multi-unit dwell hours: As more employers and property owners provide charging infrastructure, overnight-only charging often doesn’t suffice. A charger that can add meaningful range during daytime occupancy is more attractive.
Grid modernization and smart-energy integration: Intelligent charging systems that integrate with renewable generation, demand-response programs, or dynamic pricing are becoming more common. A 22 kW EV charger with load-balancing, scheduling, and “vehicle-to-grid” or “vehicle-to-building” readiness can help tie EV charging into broader energy management strategies.
Scaling fleets and shared mobility: Commercial fleets, ride-sharing operators, delivery services, and municipal vehicle programs are exploring faster AC charging to supplement DC infrastructure—offering flexible capacity without the high capital cost of full DC fast-charging banks.
Cost pressure on DC roll-out: Deploying DC fast-charging infrastructure is expensive, especially for rural or low-traffic locations. In such environments, multiple moderate-power AC chargers (like 22 kW units) become an appealing alternative or interim measure.
Real-world pilot and rollout projects have begun to feature 22 kW EV chargers in residential complexes, university campuses, workplace parking, and retail-parking hubs. These deployments help test integration with solar rooftop generation, battery energy storage systems (BESS), and demand-side management systems.
(Note: The following is hypothetical / illustrative. You may substitute real-site data if available.)
GreenTech Offices, Portland, OR
A mid-size tech company retrofits its employee parking garage with six 22 kW AC EV chargers to support staff EVs. Since installation:
Average dwell time per user is eight hours (workday), during which each charger delivers ~60 kWh per session.
Prior to upgrade, employees used slower 7 kW chargers and often needed overnight charging at home. With the new 22 kW units, about 70 percent of employees report staying topped up comfortably by end of day.
Employee satisfaction rises; peak charging demand is managed via an integrated load-balancing app to avoid overloading the main electrical feed.
Municipal utility approval required minor panel upgrade; payback period for the charger hardware and installation is estimated at ~5 years via energy-use savings and staff satisfaction benefit.
Sunset Apartments, Los Angeles, CA
A multi-unit residential building converts two visitor-parking bays into EV charging bays with dual-port 22 kW AC stations. Benefits:
Residents without home chargers can top-up during daytime visits or guest stays.
Building manager integrates billing and usage tracking via networked charger software, charging nominal monthly fees per kWh plus service.
After six months, 40 percent of usage originates from residents with heavy commuting patterns; building owners report the system is nearing break-even after accounting for installation and electricity cost recovery.
These case studies underscore how 22 kW AC EV chargers can unlock new value in diverse real-world settings — not just for early adopters, but for scaling EV readiness in residential, commercial, and mixed-use buildings.
As utilities and regulators push for decentralized energy management, EV chargers will increasingly participate in demand-response, time-of-use pricing, and renewable-energy integration. High-power AC chargers that support software-driven scheduling, smart load-balancing, and two-way power flow (vehicle-to-grid or vehicle-to-building) will increasingly be the norm.
Governments and building code authorities are gradually updating standards to accommodate higher-power AC charging in residential and mixed-use settings. This will reduce friction in permitting and help accelerate adoption.
Component costs continue to fall, and charger manufacturers are optimizing thermal, safety, and connectivity features. That is likely to reduce price premiums for 22 kW-capable units and lower the barrier for home or small business owners.
Pairing 22 kW EV chargers with onsite solar arrays or battery storage systems helps mitigate peak demand, reduce energy costs, and improve sustainability metrics — a compelling proposition for environmentally conscious building owners.
As more EVs come to market with onboard chargers rated for 22 kW AC (or higher), the full potential of such chargers will be unlocked. That increases ROI for deploying higher-power AC charging infrastructure.
Homeowners: If your house is modern or you plan to upgrade your electrical panel, assess whether three-phase service is available. Contact a certified electrician to evaluate whether a 22 kW charger makes financial sense given your driving habits, vehicle model, and anticipated resale value.
Businesses & landlords: Conduct a needs assessment of dwell times, number of EVs, projected growth, and utility rate structures. If many vehicles stay parked 4+ hours, a 22 kW AC charger may improve throughput and satisfaction without the high investment of DC fast chargers.
Site developers: Incorporate high-power AC charging into building plans from the start — particularly in commercial or multifamily projects. Early coordination with electrical utility providers can avoid costly retrofits later.
Policy-makers & regulators: Encourage inclusion of high-power AC charging infrastructure in building codes, offer incentives or rebates targeted at 22 kW AC (not only DC fast chargers), and support pilot programs that integrate these chargers with smart-grid technologies.
In the rapidly evolving landscape of electric mobility, the case for 22 kW AC EV charging is becoming increasingly compelling. It bridges the divide between slow, overnight-only AC charging and high-cost DC fast charging — enabling faster turnaround, higher convenience, and greater flexibility for homeowners, business operators, fleet managers, and developers alike.
While certain constraints remain (electrical infrastructure, vehicle compatibility, permitting), many of those barriers are gradually falling away with modern building practices, smarter energy management systems, and a wave of EVs built to accept higher AC charging rates.
The deployment of 22 kW AC EV chargers represents not just a technology upgrade — it’s an investment in the everyday practicality of EV ownership. Whether in a suburban garage, a workplace parking lot, or a multi-unit residential complex, 22 kW AC charging is poised to play a central role in scaling EV infrastructure more intelligently, more affordably, and more sustainably.
As more stakeholders recognize the value of speed, flexibility, and cost-efficiency, 22 kW AC EV charging could shift from being a “next-tier premium” to a baseline expectation for many new EV-ready sites.
