Introduction

As electric vehicles (EVs) continue to gain popularity worldwide, the need for standardized and reliable charging infrastructure is more important than ever. One of the most widely recognized and utilized charging systems in North America and other parts of the world is the J1772 charger. This charger has become an industry standard, ensuring that EV owners have a seamless and safe charging experience wherever they go. In this article, we will explore the key features, advantages, and functionality of J1772 chargers, as well as their role in the growing EV market.

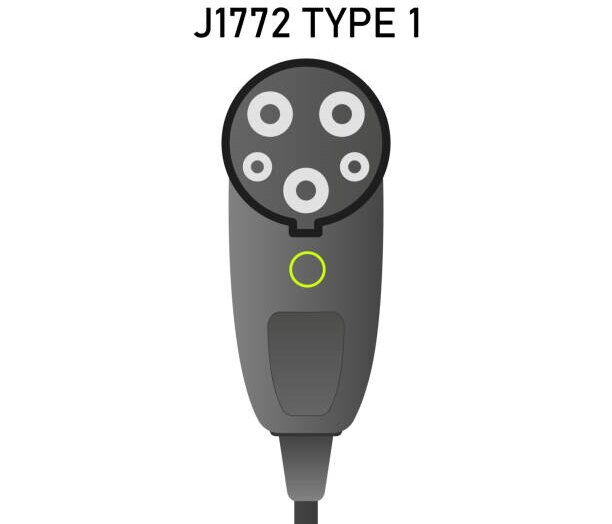

J1772 charger

What is a J1772 Charger?

The J1772 charger, officially known as the SAE J1772, is a standardized EV charging connector developed by the Society of Automotive Engineers (SAE). This connector serves as a universal interface between electric vehicles and charging stations. The J1772 standard covers AC Level 1 and AC Level 2 charging, which are the most common methods for charging electric vehicles in homes, workplaces, and public charging stations.

AC Level 1 charging uses a standard household outlet and is typically slower, making it suitable for overnight charging. AC Level 2 charging, on the other hand, uses a higher voltage outlet and charges the vehicle more quickly, making it ideal for daily use in both residential and commercial settings.

J1772 chargers provide the infrastructure necessary to accommodate the growing number of electric vehicles on the road, offering a reliable, efficient, and easy-to-use solution for EV charging.

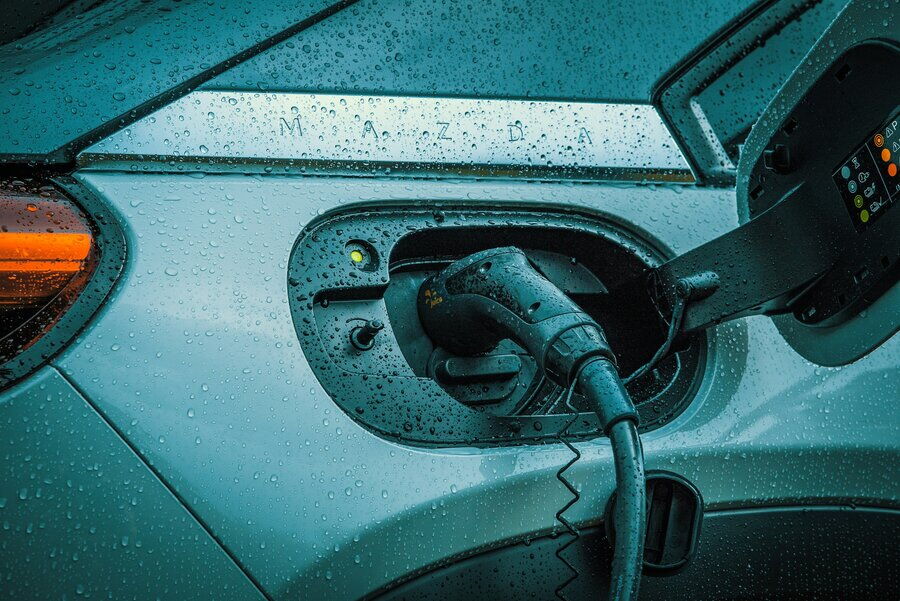

EV Charger

How Does it Work?

The J1772 charging system is designed with simplicity and safety in mind. It works by connecting the charger to the vehicle via a J1772 connector, which securely attaches to the EV’s charging port. Once connected, communication between the charger and the vehicle begins, allowing the vehicle to determine the appropriate charging rate based on the available power and battery capacity.

One of the key safety features of the J1772 system is the presence of interlocking mechanisms that prevent the charger from being disconnected while the vehicle is charging. Additionally, J1772 chargers have built-in ground fault protection to avoid electrical hazards during charging. These safety measures ensure that users can charge their vehicles without the risk of electrical shock or fire hazards.

Types of J1772 Chargers

There are primarily two types of J1772 chargers:

AC Level 1 Chargers

These chargers operate on a standard 120-volt outlet and provide a charging rate of about 4 to 5 miles of range per hour. While slower, Level 1 charging is ideal for overnight use or for users who don’t drive long distances daily.

AC Level 2 Chargers

Operating on a 240-volt outlet, these chargers deliver a faster charging rate of 12 to 60 miles of range per hour, depending on the charger’s power output and the vehicle’s charging capacity. AC Level 2 chargers are commonly installed in homes, commercial spaces, and public charging stations.

Both types of chargers use the same J1772 connector, ensuring compatibility across various charging environments.

Advantages of J1772 Charger

1. Compatibility

One of the key advantages of J1772 chargers is their broad compatibility. The J1772 standard was created to work with a wide range of electric vehicles, from compact cars to larger SUVs and trucks. This universal compatibility ensures that EV owners can charge their vehicles at any J1772-equipped charging station, regardless of the make or model of their EV. This versatility makes J1772 chargers a future-proof option, as they are expected to remain compatible with new and evolving EV models for years to come.

2. Safety

Safety is a critical factor in EV charging, and J1772 chargers deliver with a host of built-in safety features. These chargers come equipped with interlocking mechanisms that prevent disconnection during charging, ensuring a secure connection at all times. Additionally, ground fault protection detects any electrical issues and shuts down the charging process to prevent potential hazards like electrical shocks or fires. With these safety measures, J1772 chargers provide users with a worry-free charging experience.

3. Ease of Use

The user-friendly design of J1772 chargers makes them highly accessible to a wide range of EV owners. The connector itself is designed for simplicity, allowing for quick and easy plug-in and disconnection actions. This seamless interface helps reduce the learning curve for new EV owners and encourages more people to switch to electric vehicles, knowing that charging is hassle-free.

4. Integration with Existing Infrastructure

Another significant advantage of J1772 chargers is their widespread integration with existing charging infrastructure. Many public and private charging stations across North America are equipped with J1772 connectors, making it convenient for EV owners to find charging points that work with their vehicles. This widespread adoption helps create a cohesive network of charging stations that ensures EV drivers can travel long distances without worrying about finding compatible chargers.

5. Reliability

J1772 chargers have a proven track record of reliability and durability. These chargers are built to withstand the wear and tear of daily use, whether installed in homes, workplaces, or public charging stations. This long-lasting performance has earned J1772 chargers their reputation as a dependable standard in the EV charging world.

Can You Use a J1772 Charger at Home?

Absolutely. J1772 chargers are widely used in residential settings, particularly AC Level 1 and AC Level 2 chargers. Many EV owners choose to install a J1772 Level 2 charger at home for faster and more convenient charging. The installation process typically involves hiring an electrician to set up a 240-volt outlet or a dedicated EV charging circuit. Once installed, the J1772 charger allows EV owners to conveniently charge their vehicle overnight or during the day without relying on public charging stations.

Additionally, many portable J1772 chargers are available on the market, allowing users to carry their charger and plug into a standard outlet while on the go. This flexibility makes J1772 chargers an ideal solution for both home and travel use.

Conclusion

The J1772 charger is an essential component of the electric vehicle ecosystem, providing a universal, reliable, and user-friendly solution for EV charging. With its broad compatibility, robust safety features, ease of use, and integration with existing infrastructure, the J1772 charger has become the standard for EV charging across North America and beyond. Whether you’re charging at home or on the road, the J1772 charger offers a convenient and dependable way to keep your electric vehicle powered and ready to go.

As the EV market continues to grow, the J1772 charger will remain a cornerstone of charging infrastructure, supporting the transition to a cleaner, more sustainable future of transportation.
