AC EV Wallbox Charger, OCPP1.6, 3.5-22kW, 50-60Hz, 230V AC

AC EV Wallbox Charger, OCPP1.6, 3.5-22kW, 50-60Hz, 230V AC

Key Specifications / Features

Model no.: EVCC-ACEVC-20240812-04 Hits: 19

As a leading AC EV Wallbox Supplier from China, we offer a high-quality wall-mounted EV charger designed for efficient home and commercial use. This charger provides a 7kW output, delivering fast and reliable charging for your electric vehicle. It operates on a 230V AC ±10% input with a 32A output, ensuring consistent performance. Equipped with a Type 2 socket, it offers broad compatibility with various EV models. The charger supports the OCPP 1.6 protocol, allowing easy integration with smart charging networks. Built with an IP65 protection rating, it is resistant to dust and water, making it suitable for both indoor and outdoor installation. This wallbox combines durability, efficiency, and advanced features for optimal EV charging.

Request a quote

Detail Information

Wall-mounted EV Charger, AC Wallbox, 7kW, OCPP1.6, 32A, Type 2 Socket.

Product Specification

Voltage: 230V AC±10%
Output Current: 32A
Frequency: 50/60Hz
Output Power: 7kW
Residual Current Protection: TYPE A(30mA AC)
Charging Outlet: 4.5M charging cable with type 1/2 plug or Type 2 Socket
Installation Method: Wall-mounted/Floor Stand
Communication Protocol: OCPP 1.6J-SON
Protection Level: IP65
Working Altitude: ≤2000M
Load Balance: RS485 meter/CT-Clamp as optional
Application Site: Indoor/Outdoor
Working Temperature: -30°C - +50°C
Working Humidity: 5%-95%, No Condensation
Atmospheric Pressure: 80kPa-101kPa
Network Cateway: Bluetooth and WIFI as Default
Added APP functions under WIFI/4G: Charging records shown on mobile APP,view and update the PIN code.firmware updating function(OTA),multiple wallbox control
Packing Details

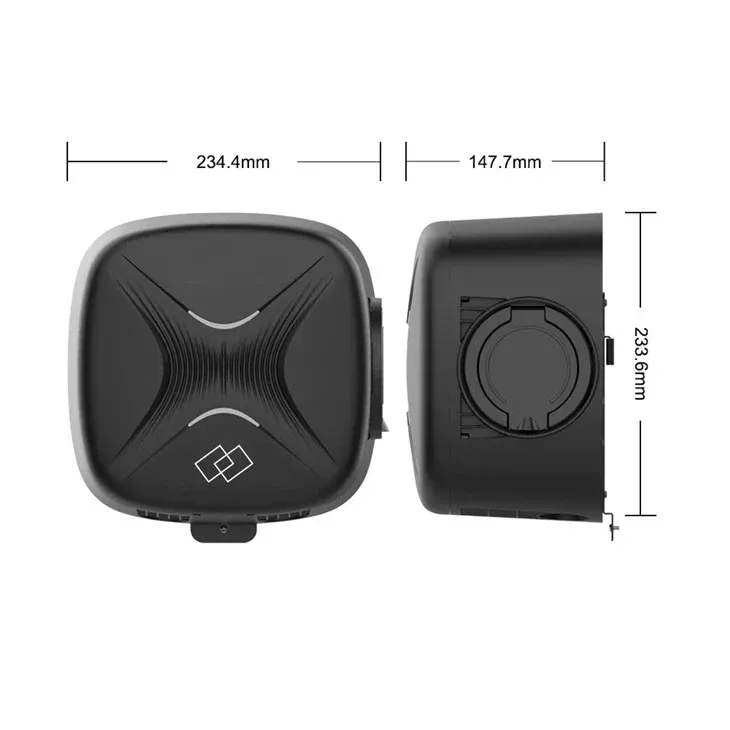

Product Size: 234.5*234.5*148mm
Product Weight: 4.4KG
Residual curent protection: TYPE B(AC 30MA+DC 6MA)as optional


AC EV Charger
