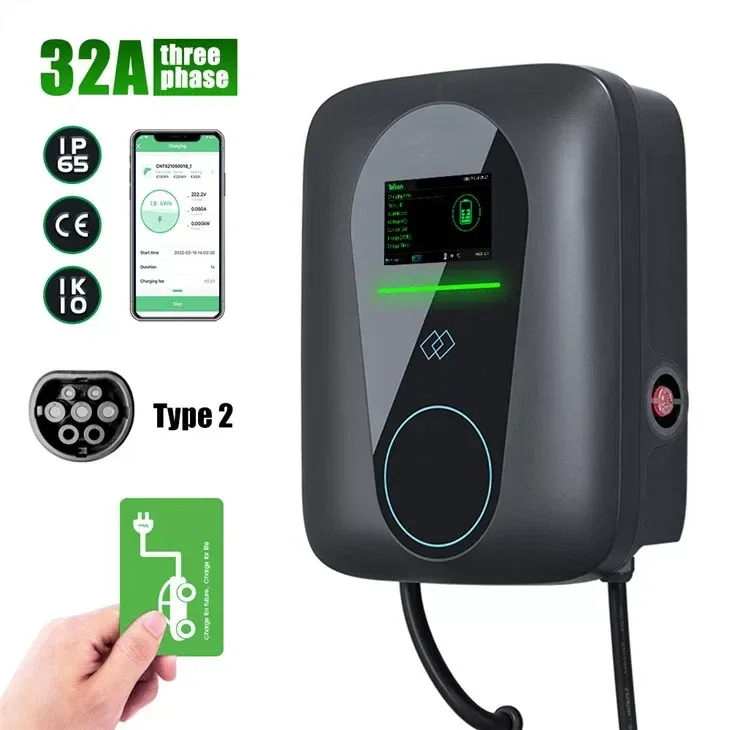

22kW EV Charging Station, 32A, OCPP1.6, IP65, Type 2 Socket
Key Specifications / Features
Model no.: EVCC-ACEVC-20240812-03 hits: 26
This versatile charging station is equipped with a Type 2 socket and supports 3-phase power with a 32A current, ensuring efficient and rapid charging for electric vehicles. It is compatible with the OCPP 1.6 protocol, enabling seamless integration with various charging networks. Designed for flexibility, the station can be wall-mounted or installed on a floor stand to suit different environments. With an IP65 protection rating, it is built to withstand harsh weather conditions, making it ideal for both indoor and outdoor use. This 22kW charging station delivers reliability and performance for all your EV charging needs.
Request a quoteDetail Information
Type 2 Socket EV Charging Station, 3 Phase, 32A, OCPP 1.6, Wall-mounted.
Product Specification
Voltage: 230V AC±10%
Output Current: 32A
Frequency: 50/60Hz
Output Power: 7kW
Residual Current Protection: TYPE B(AC 30mA+DC 6mA)
Display: 5 Inch LCD Touch Screen
RFID Function: 5pcs cards
Charging Outlet: One charging socket (Type 2)/4.5M charging cable
Power Incoming Line: 0.5M
Front Pane: PC
Installation Method: Wall-mounted/Floor Stand
Network Gateway: Ethernet/4G/Wifi
Communication Protocol: OCPP1.6(J-SON)
Protection Level: IP65
Working Altitude: ≤2000M
Working Temperature: -30°C - +50°C
Atmospheric Pressure: 80kPa-101kPa

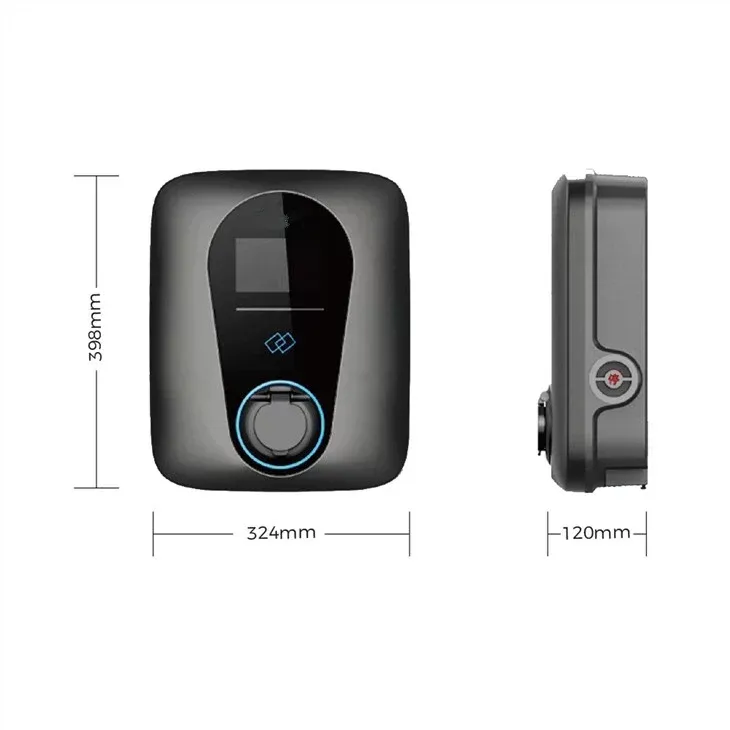

Product Size: 398*324*120mm
Product Weight: 10KG
Dynamic Load Balancing: RS485 meter or local junction box(optinal)
Safety Standard:
EN IEC61851-1:2019; IEC61851-1:2017; EN IEC61851-21-2:2021;
EN IEC61000-6-1:2019; EN IEC61000-6-2:2019; EN IEC61000-6-3:2021;
ETSI EN 300 330 V2.1.1:2017; ETSI EN301 489-1 V2.2.3-2019;
ETSI EN301 489-3 V21.1:2019; ETSI EN301 489-17 V3.2.4:2020;
EN IEC62311-2020;
Product Specification
Voltage: 230V AC±10%
Output Current: 32A
Frequency: 50/60Hz
Output Power: 7kW
Residual Current Protection: TYPE B(AC 30mA+DC 6mA)
Display: 5 Inch LCD Touch Screen
RFID Function: 5pcs cards
Charging Outlet: One charging socket (Type 2)/4.5M charging cable
Power Incoming Line: 0.5M
Front Pane: PC
Installation Method: Wall-mounted/Floor Stand
Network Gateway: Ethernet/4G/Wifi
Communication Protocol: OCPP1.6(J-SON)
Protection Level: IP65
Working Altitude: ≤2000M
Working Temperature: -30°C - +50°C
Atmospheric Pressure: 80kPa-101kPa
Product Size: 398*324*120mm
Product Weight: 10KG
Dynamic Load Balancing: RS485 meter or local junction box(optinal)
Safety Standard:
EN IEC61851-1:2019; IEC61851-1:2017; EN IEC61851-21-2:2021;
EN IEC61000-6-1:2019; EN IEC61000-6-2:2019; EN IEC61000-6-3:2021;
ETSI EN 300 330 V2.1.1:2017; ETSI EN301 489-1 V2.2.3-2019;
ETSI EN301 489-3 V21.1:2019; ETSI EN301 489-17 V3.2.4:2020;
EN IEC62311-2020;
