The Basics of EV Charging
Electric vehicles rely on large batteries to store energy, which powers an electric motor instead of a traditional internal combustion engine. Charging stations are the essential link between the electric grid and these vehicle batteries, providing power in a controlled way to ensure efficiency and safety.In essence, an EV charging station pulls electricity from the grid and transforms it to the voltage and type (alternating current, AC, or direct current, DC) needed by the EV battery. Depending on the type of station and the level of charging required, this transformation process may take place inside the vehicle or within the charging station itself.
EV chargers are generally divided into two main categories based on the type of current they provide:
1. Alternating Current (AC) Charging – Typically slower and used for home and standard public charging stations.
2. Direct Current (DC) Charging – Known as fast or rapid charging, found mostly at public stations, and provides a quicker charging experience.
AC Charging: The Standard for Most EV Owners
AC charging is the most common and widely accessible method, making it ideal for both residential and public charging. This type of charging takes AC power from the grid and passes it into the vehicle, where the car’s onboard charger converts it into the DC power required to charge the battery.Most home chargers and many public chargers use AC charging, as the infrastructure requirements are less complex than for DC charging. AC chargers are typically categorized by levels that reflect the speed and power they provide:
Level 1 Charging
Level 2 Charging
While AC charging is slower than DC fast charging, it meets the needs of most EV owners, who often charge their cars overnight or during the day while parked at work or home. This approach leverages the fact that, unlike conventional vehicles, EVs don’t need to be refueled as quickly since most people aren’t traveling significant distances every day.
DC Fast Charging: Power for Long-Distance and Public Use
DC chargers, found mainly in public locations such as highways, travel centers, and urban centers, are categorized by their power output and charging speed:
DC Fast Charging (Level 3)
DC fast chargers are critical for enabling EVs to be used on long road trips and for commercial fleets that need to keep vehicles running throughout the day. However, they are less common in residential areas, as they require substantial electrical infrastructure and incur higher costs for equipment and installation.
Home Charging Stations vs. Public Charging Station
Home Charging Stations
Home charging is convenient for EV owners, as it allows them to recharge overnight and start each day with a full battery. Home chargers are typically Level 1 or Level 2 AC chargers, as most homeowners don’t require the high speeds (or high costs) of a DC fast charger. A home charging station connects directly to the home’s electrical system, usually requiring a 240-volt outlet for Level 2 charging.
While home charging is ideal for daily driving needs, it may not be sufficient for long trips or for drivers with unpredictable schedules, which is where public charging stations become essential.
Public Charging Stations

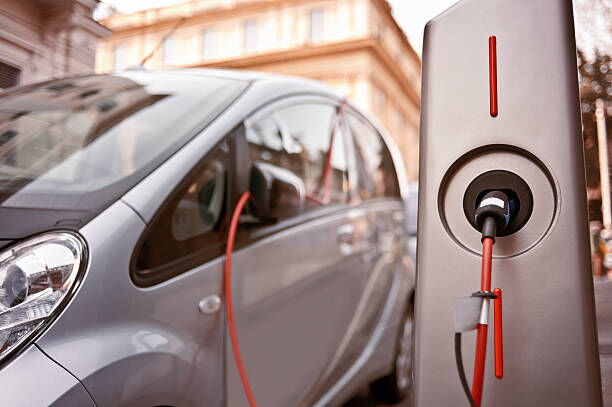

Public charging stations, especially DC fast chargers, are designed to accommodate EV drivers on the go. These stations are often located along highways, at shopping centers, and in urban areas, where drivers can plug in while they take a break or shop. Public chargers range from Level 2 AC chargers to high-powered DC fast chargers, offering a range of charging speeds to meet different needs.
DC fast chargers are becoming increasingly common in urban and high-traffic areas, enabling EV drivers to quickly charge their vehicles during short stops. Public charging networks often charge fees for usage, especially for faster DC options, though some Level 2 chargers may still be available free of charge.
The Future of EV Charging Technology
As EV adoption grows, so does the demand for faster, more efficient, and widely available charging infrastructure. Some exciting trends in EV charging technology include:
Ultra-fast charging
Advancements in DC fast-charging technology are increasing the power output of chargers, reducing charging times significantly. For instance, next-generation DC chargers may reach up to 500 kW, potentially allowing an EV to charge to 80% in under 10 minutes.
Wireless charging
Wireless, or inductive, charging technology is also on the horizon, allowing EVs to charge simply by parking over a special charging pad without plugging in a cable. Though still in the early stages of development, this technology could make charging even more convenient.
Vehicle-to-grid (V2G) systems
Some EVs are being designed with V2G capabilities, allowing them to send energy back to the grid when parked. This innovation could allow EVs to help stabilize the electrical grid during peak demand times and provide additional backup power for homes.
Conclusion
Understanding how EV charging stations work helps demystify electric vehicle technology and highlights the important role these stations play in the transition to cleaner transportation. Whether using an AC home charger for daily use or relying on DC fast charging during long trips, EV drivers have multiple options to keep their vehicles powered. As infrastructure expands and charging technology advances, EV owners will find it easier than ever to access reliable, fast, and convenient charging options across diverse locations. This progress not only helps current EV drivers but also encourages more people to make the switch to electric vehicles, accelerating the journey toward a more sustainable future.
