What Are EVSE Chargers?
On this page
The transition to electric vehicles (EVs) is reshaping the way we think about mobility and energy consumption. At the heart of this transformation is Electric Vehicle Supply Equipment (EVSE), often referred to as EV chargers. This article dives into what EVSE chargers are, how they work, and the different types available, providing an essential guide for understanding these critical devices.
Whether you hear the term EV charging station, EV charger, or charging equipment, they all fall under the EVSE category. This equipment acts as the vital interface between the power grid and the EV, facilitating safe and reliable energy transfer.
Here’s how the system works:
The plug is securely attached.
The EV is ready to accept a charge.
The EVSE is functioning properly.
If all conditions are met, the system activates the power flow. If the connection is disrupted, such as the plug being accidentally removed, the EVSE immediately halts power to prevent electrical hazards like arcing.
Best for:
Overnight home charging.
Drivers with short daily commutes.
What Is Electric Vehicle Supply Equipment (EVSE)?

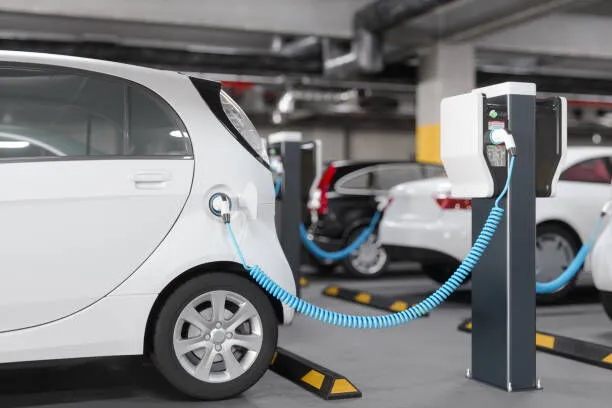

EVSE is the technical term for the equipment that delivers electrical energy from a source to an electric vehicle's battery. While they are commonly called EV chargers, EVSE encompasses more than just the charging functionality. It includes the necessary safety protocols, communication systems, and electrical components that ensure the charging process is efficient and secure.Whether you hear the term EV charging station, EV charger, or charging equipment, they all fall under the EVSE category. This equipment acts as the vital interface between the power grid and the EV, facilitating safe and reliable energy transfer.
How Does an EVSE Charger Work?
The primary function of an EVSE charger is to provide a controlled flow of electricity to the electric vehicle’s battery. It ensures safety for both the user and the vehicle throughout the charging process. Despite its common nickname, the actual battery charging occurs within the vehicle itself, not at the EVSE.Here’s how the system works:
1. Connection and Communication
When you plug the charging cable into your EV, the control module inside the EVSE verifies the connection. This involves a series of checks to ensure:The plug is securely attached.
The EV is ready to accept a charge.
The EVSE is functioning properly.
If all conditions are met, the system activates the power flow. If the connection is disrupted, such as the plug being accidentally removed, the EVSE immediately halts power to prevent electrical hazards like arcing.
2. Charging Process
The type of power provided—Alternating Current (AC) or Direct Current (DC)—determines how charging proceeds:AC Charging:

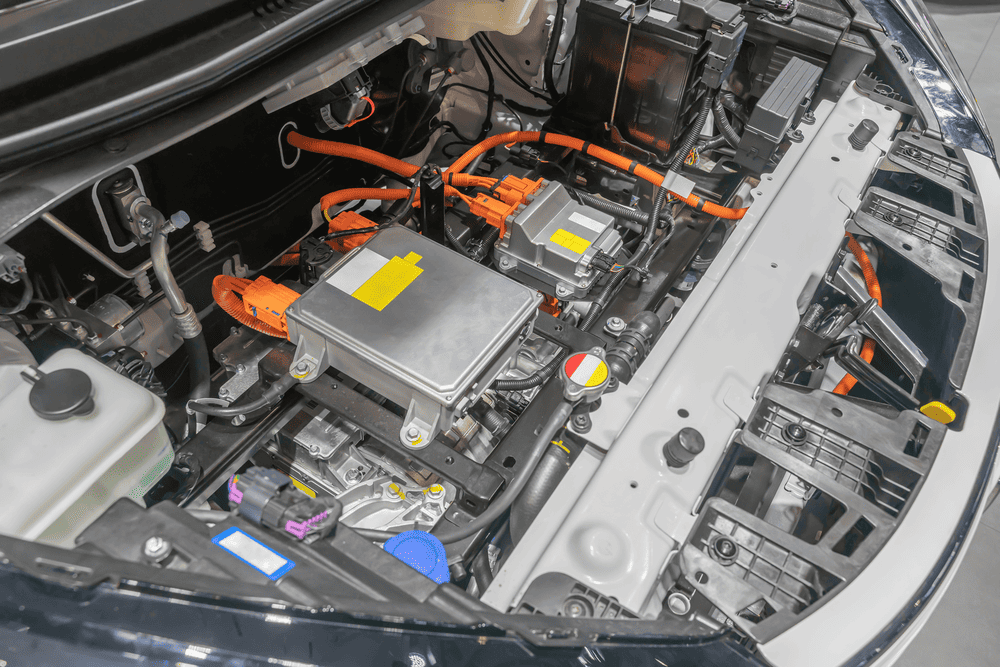

When using an AC charger, the EVSE supplies alternating current to the EV’s onboard charger. The onboard charger then converts the AC to direct current to charge the battery.DC Charging:
With DC charging, the EVSE delivers direct current directly to the battery, bypassing the onboard charger. This allows for significantly faster charging speeds.3. Completion
Once the battery is charged, you can unplug the vehicle and resume your journey. The EVSE’s software and communication protocols manage the entire process to ensure smooth operation.Types of EVSE Charging Systems
EVSE chargers are categorized into three main levels based on their charging speed and power delivery:1. Level 1 Charging
Level 1 charging is the most basic form, utilizing a standard household outlet (120 volts). It is slow, typically adding about 3-5 miles of range per hour. However, it requires no additional equipment and is often included with the EV purchase.Best for:
Overnight home charging.
Drivers with short daily commutes.
2. Level 2 Charging
Level 2 chargers require a dedicated 240-volt circuit, similar to what is used for appliances like dryers. These chargers significantly reduce charging times, adding 10-20 miles of range per hour. Most public charging stations are Level 2, and many EV owners install them at home for faster charging.Best for:
Home use for quicker charging.
Public and workplace charging stations.
However, this speed comes with limitations:
Not all EVs support DC fast charging.
The equipment is more expensive and requires a robust electrical infrastructure.
Best for:
Commercial charging stations.
Drivers needing rapid recharging during long trips.
As the world transitions toward cleaner transportation, understanding EVSE is crucial for both EV owners and those considering making the switch. With advancements in charging infrastructure and technology, the future of EVs looks brighter—and more electrified—than ever.
Home use for quicker charging.
Public and workplace charging stations.
3. DC Fast Charging (Level 3)
DC Fast Charging, also called Level 3 charging, is the fastest method. It bypasses the EV’s onboard charger, delivering high-voltage direct current directly to the battery. With the capability to charge an EV to 80% in under an hour, DC fast chargers are ideal for long-distance travel and high-traffic charging hubs.However, this speed comes with limitations:
Not all EVs support DC fast charging.
The equipment is more expensive and requires a robust electrical infrastructure.
Best for:
Commercial charging stations.
Drivers needing rapid recharging during long trips.
Key Components of EVSE Chargers
EVSE systems comprise several critical components to ensure efficient and safe operation:1. Control Module
This manages communication between the EVSE and the vehicle, verifying connection safety and initiating the charging process.2. Charging Cable
The cable is designed to handle high electrical loads while ensuring safety. Some cables also include a latch mechanism to prevent accidental disconnection.3. Power Supply
The power source can be a standard outlet, a dedicated circuit, or a high-voltage grid connection for DC fast chargers.4. Software and Communication Protocols
Advanced EVSE units integrate software to monitor charging, provide real-time updates, and enable features like remote start/stop and payment processing.Why EVSE Is Essential for EV Adoption
As the adoption of EVs grows, EVSE infrastructure is becoming increasingly vital. Here’s why:Convenience
Public charging stations and home charging options provide drivers with flexible and accessible ways to recharge their vehicles.Safety
EVSE units are designed with built-in safety features to prevent electrical hazards, such as overcharging, short circuits, and overheating.Efficiency
Faster charging options, like Level 2 and DC fast chargers, reduce downtime for EV drivers, making electric mobility more practical for everyday use.Scalability
With advancements in EVSE technology, charging networks can expand to accommodate growing EV ownership and support renewable energy integration.Future Trends in EVSE Technology
The EVSE landscape is evolving rapidly, driven by advancements in technology and growing environmental awareness. Here are some trends shaping the future of EVSE:Ultra-Fast Charging
New DC fast chargers are pushing the boundaries with even higher charging speeds, capable of adding hundreds of miles of range in minutes.Wireless Charging
Emerging wireless charging systems aim to eliminate cables entirely, providing seamless and automated energy transfer through electromagnetic fields.Smart Charging
Integration with smart grids allows EVSE systems to optimize energy consumption, balance grid load, and enable dynamic pricing based on demand.Renewable Energy Integration
Solar-powered EVSE units and energy storage solutions are making charging more sustainable by leveraging renewable energy sources.Vehicle-to-Grid (V2G) Technology
Future EVSE systems may enable vehicles to return power to the grid, acting as mobile energy storage units and supporting grid stability.Conclusion
Electric Vehicle Supply Equipment (EVSE) is an indispensable part of the EV ecosystem, enabling safe, efficient, and accessible charging. From Level 1 chargers for home use to advanced DC fast chargers at commercial stations, EVSE technology continues to evolve, meeting the demands of modern electric mobility.As the world transitions toward cleaner transportation, understanding EVSE is crucial for both EV owners and those considering making the switch. With advancements in charging infrastructure and technology, the future of EVs looks brighter—and more electrified—than ever.
