What is a Level 3 Charging Station?
On this page
Introduction
As electric vehicles (EVs) continue to grow in popularity, the demand for faster and more efficient charging solutions has spurred innovations in charging technology. Among these, Level 3 charging stations, also known as DC fast chargers, stand out for their ability to rapidly recharge EV batteries, making them ideal for long trips and quick stops. Level 3 charging provides a significant boost in charging speed compared to Level 1 and Level 2 options, but it also requires specialized infrastructure and higher power levels. This article explores what makes Level 3 charging unique, how it operates, its costs, and the compatibility considerations for EV drivers.

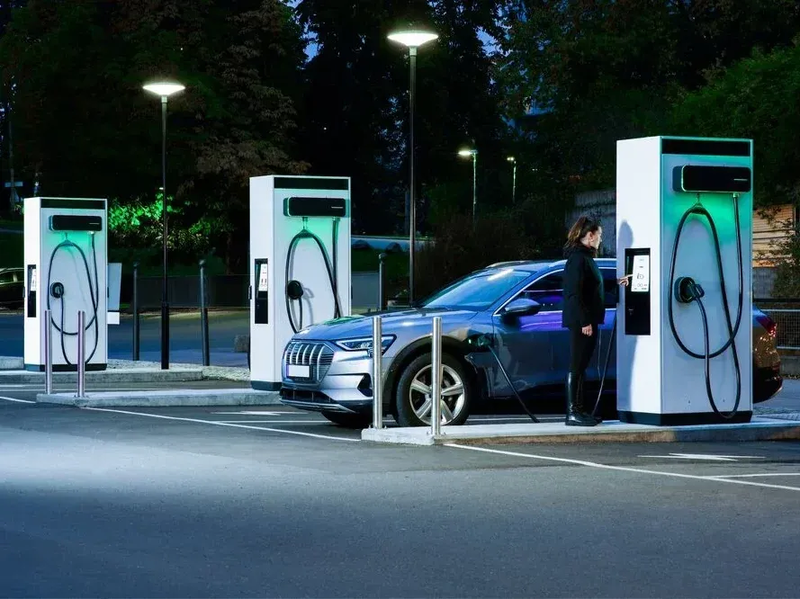

What is a Level 3 Charging Station?
Level 3 chargers are the fastest chargers available today, designed for EV drivers who need to charge their vehicles quickly and get back on the road. Unlike Level 1 and Level 2 charging, which primarily use alternating current (AC), Level 3 chargers use direct current (DC) to deliver energy directly to the EV’s battery, bypassing the vehicle’s onboard charger. This high-power delivery enables substantial range increases in a fraction of the time required by slower charging options. In about 30 to 45 minutes, Level 3 chargers can typically add 100 to 250 miles of range, making them particularly valuable for long journeys.How Level 3 Charging Works
The defining characteristic of Level 3 charging is its use of high voltage and direct current, typically operating at voltages between 400 and 800 volts, with some stations capable of delivering up to 500 kW of power. To handle this level of energy transfer, Level 3 chargers require specialized connectors that have additional pins compared to standard Level 1 and Level 2 connectors. These extra pins accommodate the higher voltage and allow for efficient, rapid charging.The high-power infrastructure required for Level 3 charging means that these stations are often located along highways, in urban centers, or at commercial locations where fast turnover is essential. In practice, Level 3 chargers are predominantly found at networks operated by Tesla’s Supercharger, EVgo, and Electrify America, among others. For example, Tesla’s proprietary Supercharger network offers dedicated Level 3 charging for Tesla owners, while EVgo and Electrify America cater to a variety of EVs with universal connector options.
Charging Rate and Battery Considerations
While Level 3 chargers are capable of delivering up to 500 kW, the actual charge rate depends on the compatibility between the charger and the vehicle. Each EV has a maximum charge rate that it can handle, determined by its battery management system. For instance, if an EV’s maximum charging capability is 50 kW, connecting it to a 350 kW Level 3 charger will not increase its charging speed beyond 50 kW. Therefore, the EV’s internal limitations play a significant role in determining the effective charging rate.Another factor influencing charging speed is the battery’s state of charge (SoC). As the battery approaches 80% capacity, most EVs automatically slow down the charging rate to prevent overheating or overcharging, a practice called “tapering.” This means that charging from 80% to 100% may take as long as the initial charge from 10% to 80%. While this slower rate can be an inconvenience, it helps to protect the battery’s longevity.

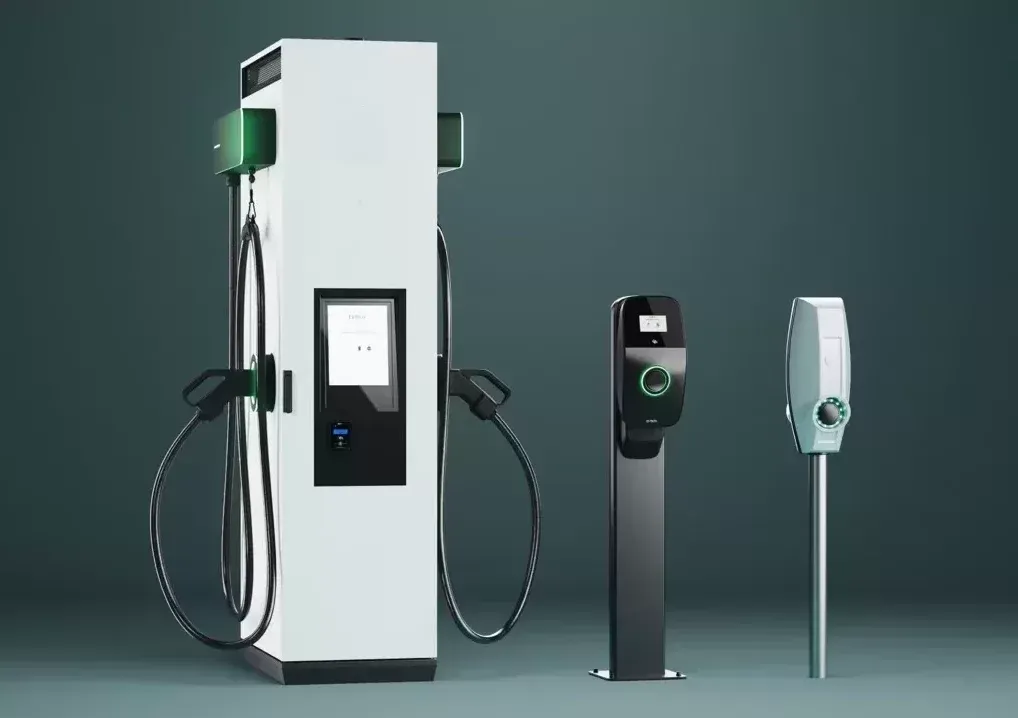

How Do Level 3 Charging Stations Work?
Level 3 charging stations operate with a different setup compared to home or public Level 1 and Level 2 chargers. They typically connect to high-voltage grid infrastructure and often require three-phase power, which enables the rapid transfer of DC electricity directly to the EV’s battery. Since EV batteries are already DC-powered, this direct connection bypasses the onboard AC-to-DC conversion that is necessary for Level 1 and 2 charging, making Level 3 significantly faster.The process begins when an EV is connected to a Level 3 charger, which communicates with the vehicle’s battery management system to determine the optimal charging rate based on factors like battery health, temperature, and current charge level. Once connected, the charger delivers power directly to the battery, providing a rapid influx of energy. Because Level 3 chargers are highly sophisticated, they also incorporate safety features to prevent overcharging, overheating, and power surges.
Cost of Level 3 Charging
One of the trade-offs of Level 3 charging is its cost. Due to the high power requirements and the substantial infrastructure investment involved, Level 3 charging is generally more expensive than Level 1 or Level 2 options. On average, a full charging session on a Level 3 charger costs between $25 and $50, though pricing varies depending on location, network provider, and sometimes the amount of time spent charging.In addition to the convenience factor of fast charging, users are also paying for the underlying infrastructure that makes rapid charging possible. Building and maintaining Level 3 charging stations require significant investment, from securing grid connectivity to setting up cooling systems for the high-power equipment. For drivers looking to quickly recharge their EVs on long trips, this premium cost is often a worthwhile trade-off.
Connector Compatibility: Do All EVs Use the Same Connector?
For Level 1 and Level 2 charging, most EVs in North America use a J1772 connector, a standard round plug compatible with most public and home charging stations. However, Level 3 chargers use different connectors to handle the higher power levels. Two main types of connectors are used for DC fast charging: the Combined Charging System (CCS) and the CHAdeMO connector.The CCS, also known as SAE Combo, is the most widely adopted standard in North America and Europe. It builds upon the J1772 design, adding two additional pins to support high-power DC charging. Many EV models, especially from American and European manufacturers, are equipped with CCS ports, making them compatible with the majority of Level 3 charging stations.
CHAdeMO, initially developed in Japan, is another common DC fast-charging standard, typically seen in vehicles from Japanese manufacturers like Nissan and Mitsubishi. However, CHAdeMO has become less common in recent years as more automakers opt for the CCS standard. Tesla, on the other hand, uses its own proprietary connector for its Supercharger network, although it has recently started incorporating CCS adapters for broader compatibility.
Advantages and Challenges of Level 3 Charging
Advantages
1. Speed
Level 3 charging significantly reduces downtime for EV drivers, providing nearly full charges in under an hour.
2. Convenience for Long Trips
The fast-charging capabilities are ideal for road trips and other situations where stopping to charge for long periods is not feasible.
3. Supporting Infrastructure
Many Level 3 chargers are strategically located along highways and in urban centers to cater to high-traffic areas.
Challenges
1. Higher Costs
Level 3 charging is generally more expensive, making it less viable for everyday use.
2. Infrastructure Demands
Building Level 3 stations requires substantial investments and grid upgrades, which can limit their availability in certain regions.
3. Battery Impact
Frequent use of Level 3 charging can potentially reduce battery life over time due to the high power levels involved.
Conclusion
Level 3 charging stations have transformed the EV landscape by providing a fast and convenient way to recharge electric vehicles, especially on long-distance trips. While the cost and infrastructure requirements are higher than for Level 1 and Level 2 charging, the convenience and time savings offered by Level 3 charging make it an essential component of the EV ecosystem. As technology advances and more EV models hit the market with improved battery capabilities, Level 3 charging is expected to become even more accessible, further supporting the transition to electric mobility.
