Pedestal AC EV Chargers, Dual Port, 22kW/44kW, 32A, OCPP1.6
Key Specifications / Features
Model no.: EVCC-ACEVC-20240809-06 hits: 19

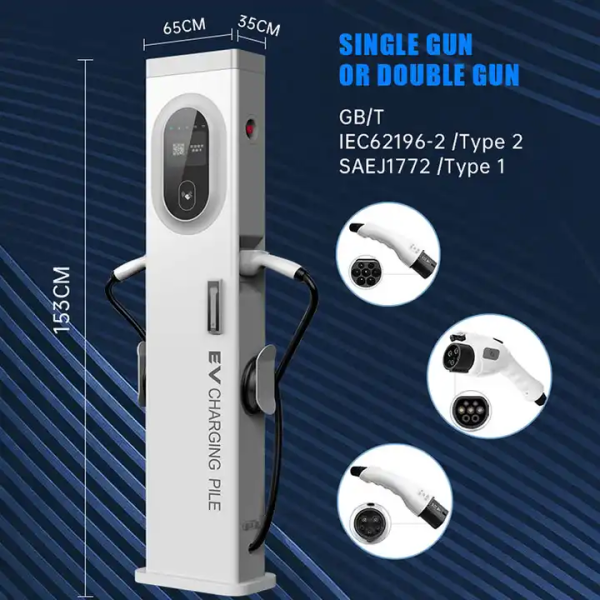

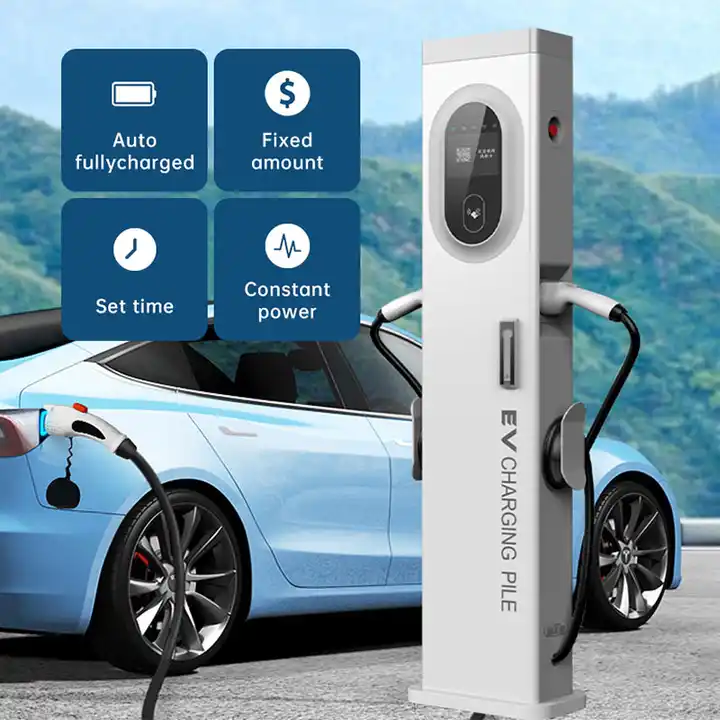

As a leading manufacturer of dual plug floor-mounted AC EV chargers, we offer a high-power solution featuring OCPP 1.6 and IP54 protection. This charger provides options for 22kW or 44kW output, operates on 380V AC with a frequency of 50±10Hz, and includes a 3.5m cable with a 32A output. Designed with a sleek cyberpunk aesthetic, this versatile AC charging station is ideal for home use. It supports both wall-mounted and floor-mounted installations. The charger operates on a 3-phase input and can be controlled via a smartphone app, offering convenient and efficient charging tailored to your needs.
Request a quoteDetail Information
Floor Mounted AC EV Chargers, OCPP1.6, IP54 Protection, 22kW/44kW Power Rating.
Power Rating: 22kW/44kW
Installation: Floor-Mounted
Charger Size: 410*240*1400mm
Cable Length: 3.5m
Input: 380V AC ±20%
Incoming Frequency: 50±10Hz
Output Voltage: AC380V±20%
Output: 32A
IP Protection: IP54
Limit the Protection Value: ≥110%
Working Temperature: -20°C - +50°C
Screen: The 4.3-inch display screen LED indicator light bar, The LED indicator light bar
Charging Method: APP payment, scan codecharging, credit card charging, Plug and plug, Swipe card to start
Communication: Ethernet/4G
Operative Norm: GB/T20234, GB/T18487, GB/T27930, NB/T33008, NB/T33002
Safety Function: Charging plug temperature detection, overvoltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
Power Rating: 22kW/44kW
Installation: Floor-Mounted
Charger Size: 410*240*1400mm
Cable Length: 3.5m
Input: 380V AC ±20%
Incoming Frequency: 50±10Hz
Output Voltage: AC380V±20%
Output: 32A
IP Protection: IP54
Limit the Protection Value: ≥110%
Working Temperature: -20°C - +50°C
Screen: The 4.3-inch display screen LED indicator light bar, The LED indicator light bar
Charging Method: APP payment, scan codecharging, credit card charging, Plug and plug, Swipe card to start
Communication: Ethernet/4G
Operative Norm: GB/T20234, GB/T18487, GB/T27930, NB/T33008, NB/T33002
Safety Function: Charging plug temperature detection, overvoltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
