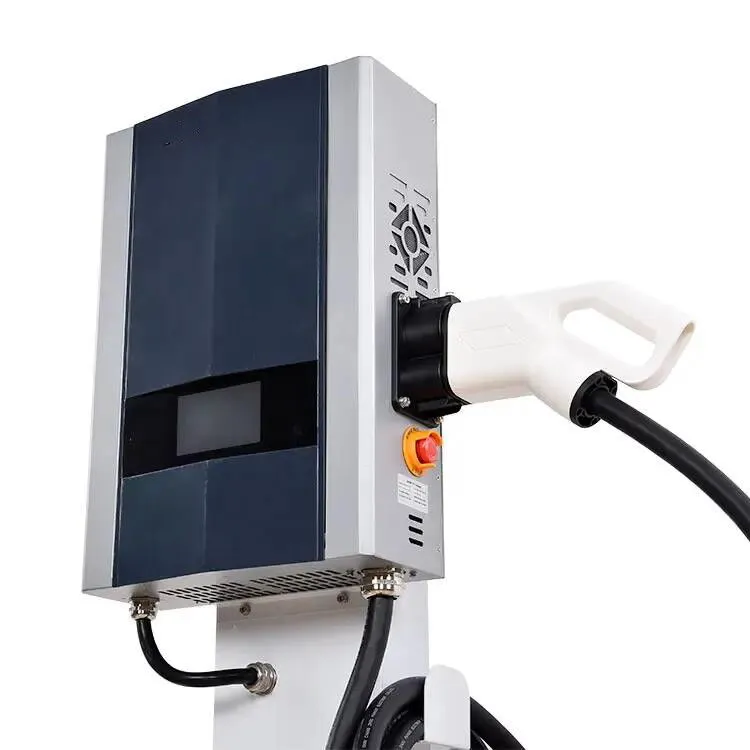

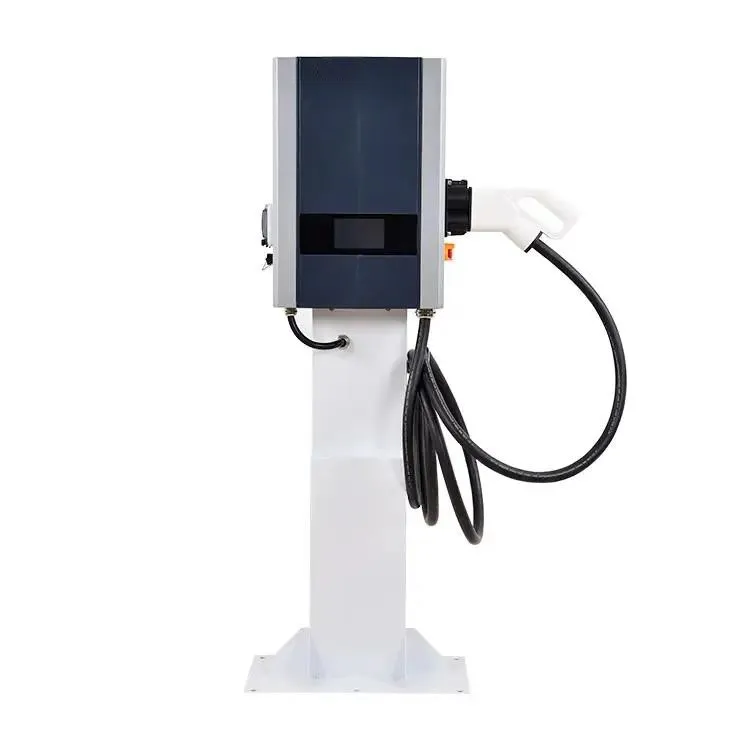

7kW DC Wallbox EV Charger Station, CCS2 Plug, 90V-265V, IP54

7kW DC Wallbox EV Charger Station, CCS2 Plug, 90V-265V, IP54

Key Specifications / Features

Model no.: EVCC-DCEVC-20240812-02 hits: 26

Request a quote

Detail Information

EV Charger Station, 7kW DC Wallbox, 90V-265V Input, CCS1, CCS2, IP54.

Production Parameters

Output Power: 7kW
Input Rating: 90V-265V
AC Input Connection: L2+L3+PE (NEMA,JPS)
Max. Input Current: 32A
Frequency: 50Hz/60Hz
Charging Protocol: CHAdeMO 2.0/DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24
Power Factor: >0.99
Efficiency: 95%
Output Voltage Range: 200-750V DC
Max. Output Current: 20A
User Interface: TFT-LCD Touch Panel, Push Buttons
Packing Dimension: W:548*378*160mm U:1500*520*250mm
Weight: Wall: 22KG, Upright:25KG
Operating Temperature: -40°C - 85°C
Working Altitude: 2000m
Cable Length: 5M (CHAdeMO), 5M (CCS), 5M(GB/T) Customized acceptable.
Regulation: EN61851-1
Certification: CE, ROHS



7kW DC Wallbox


DC Wallbox

DC Wallbox
