EV Fast Charger, OCPP1.6J, 200V-1000V, 50Hz-60Hz, 60kW-240kW

EV Fast Charger, OCPP1.6J, 200V-1000V, 50Hz-60Hz, 60kW-240kW

Key Specifications / Features

Model no.: EVCC-DCEVC-20240812-05 hits: 26

As a leading floor-mounted EV fast charger manufacturer in China, we offer high-performance chargers ranging from 60kW to 240kW. Our chargers feature CCS1 and CCS2 connectors and support a 3P+N+PE input connection with 50Hz/60Hz frequency. With an output range of 200V to 1000V and an IP55 protection rating, our chargers are built for durability and efficiency. Equipped with dual charging ports and intelligent load balancing, they allow for the simultaneous charging of two electric vehicles, ensuring optimal power distribution and reduced charging times.

Request a quote

Detail Information

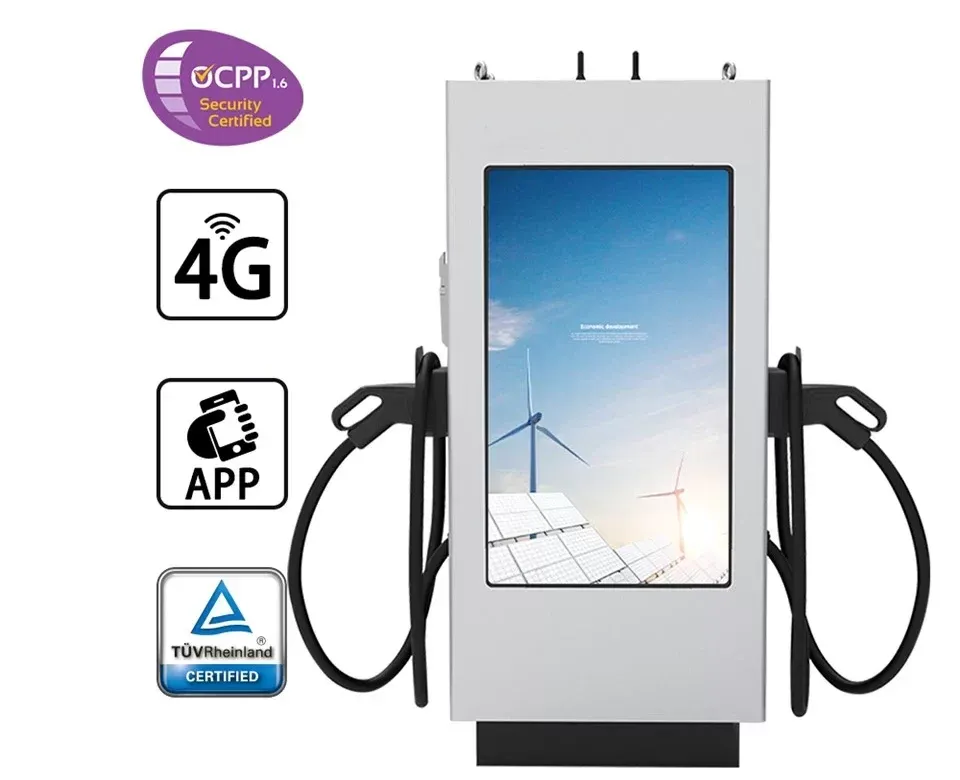

OCPP1.6J Floor Mounted EV Charger, 60kW-240kW, CCS1, CCS2, 200V-1000V Output.

Product Specification

Input Rating: AC 400V(±15%) 3 Phase
AC Input Connection: 3P+N+PE
Rate Input Current: 3φ100A
Frequency: 50Hz/60Hz
IP protection: IP55
Enclosure Protection: IK10
Power Factor: ≥0.99
Efficiency: ≥95%
Output Voltage Range: 200V-1000V
Max. Output Current: 200A (system)
Max. Output Power: DC 60kW
Voltage Accuracy: ≤±0.5%
Current Accuracy: ≤±1%
Communication:  External: Ethernet, WIFI, 3G/4G
Internal: CAN, RS485, RS232
Operating Temperature: -30°C - +50°C
Humidity: <95% relative humidity, non-condensing
Working Altitude: ≤2000m (6000 feet)
Cooling: Air Forced
Installation Method: Floor Mounted
Certificate: CE/CB/TUV
Standard: EN IEC-61851-1:2019; EN61851-23:2014; EN 61851-24:2014;EN IEC 61851-21-2:2021


Floor-Mounted EV Charger
