Key Specifications / Features
Our DC EV Charging Station, compliant with OCPP 1.6 and IEC 61851 standards, offers a powerful range from 60kW to 240kW. It operates on a 3-phase 380V or 480V input and supports a DC voltage range of 200-1000V. Equipped with a 5-meter cable length. As the fastest charging option available, it provides up to 250 miles of range per hour, depending on the vehicle and equipment. The station typically charges up to 80% in just 20 to 30 minutes, ensuring rapid and efficient power delivery for electric vehicles.
- Model no.: EVCC-DCEVC-20240809-07
- Hits: 24
- Categories: DC EV Chargers
Detail Information

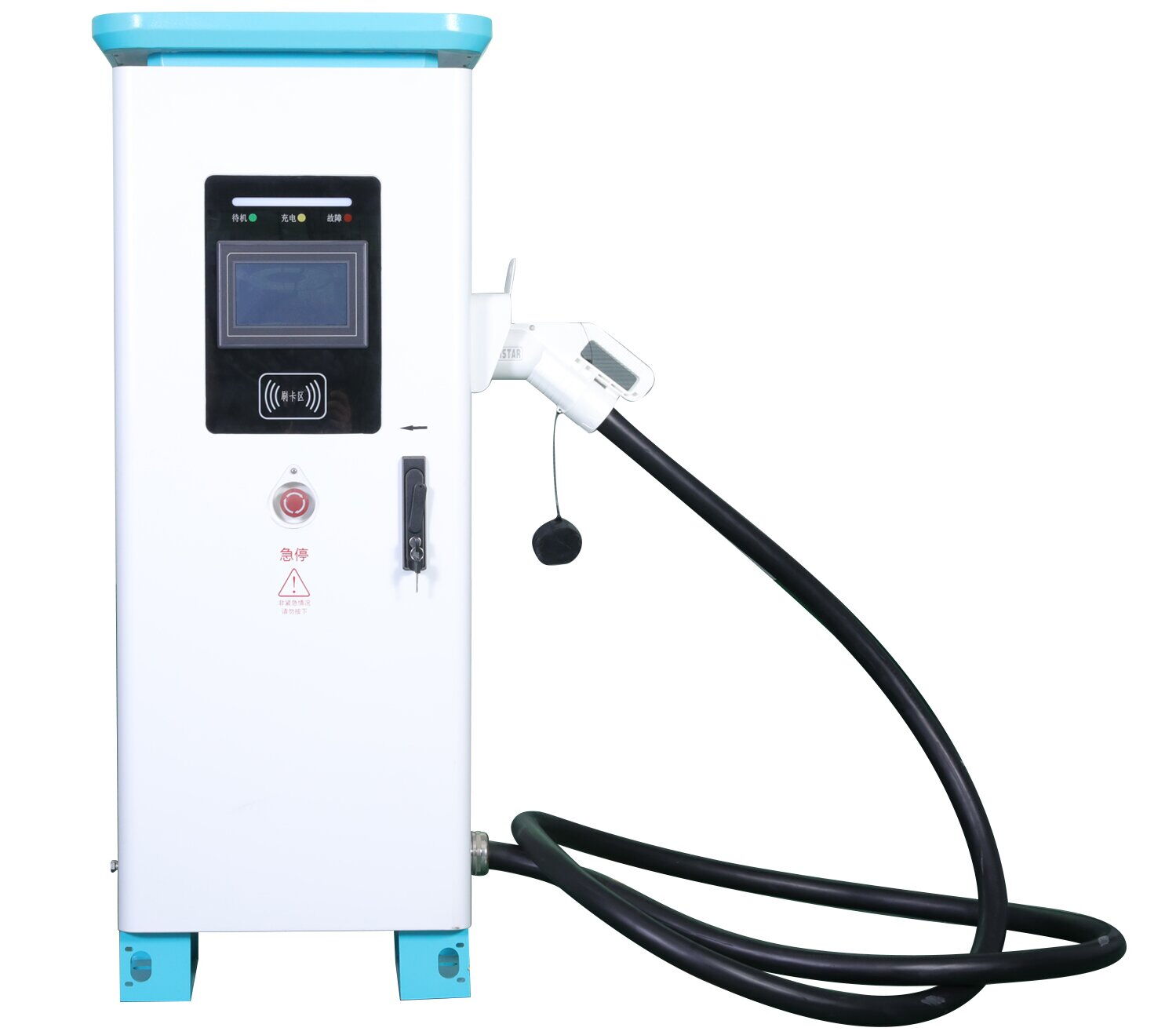

OCPP1.6 DC EV Charging Station, 60kW-240kW, 200-1000V DC, 5M Cable Length.
Rated Power: 60kW - 240kW
Dimensions: 810*511*1686mm (Whole Pile)
Display Screen: 7 inch Touch Screen
AC Input Voltage Range: 3-phase 380V (CCS2), 3-phase 480V (CCS1)
Current harmonics (THDI): ≤5%
DC Output Voltage Range: 200-1000V DC
Output Current: 0-250A (GBT), 0-200A (CCS1 & CCS2)
Cooling Method: Air Cooling
Cable Length: 5 Meter
Noise: <65dB
Power Distribution: Equalization, Intelligent distribution, Cutting
Communication: CAN / PLC
Communication Protocol: ISO 15118 / OCPP1.6 (American standard), IEC 62196-3 (European standard).
Charging Protocol: DIN 70121
Charging Plug Standard: CCS1 (American standard), CCS2 (European standard)
Charging Mode: IEC 61851 Charging Mode 4
Rated Power: 60kW - 240kW
Dimensions: 810*511*1686mm (Whole Pile)
Display Screen: 7 inch Touch Screen
AC Input Voltage Range: 3-phase 380V (CCS2), 3-phase 480V (CCS1)
Current harmonics (THDI): ≤5%
DC Output Voltage Range: 200-1000V DC
Output Current: 0-250A (GBT), 0-200A (CCS1 & CCS2)
Cooling Method: Air Cooling
Cable Length: 5 Meter
Noise: <65dB
Power Distribution: Equalization, Intelligent distribution, Cutting
Communication: CAN / PLC
Communication Protocol: ISO 15118 / OCPP1.6 (American standard), IEC 62196-3 (European standard).
Charging Protocol: DIN 70121
Charging Plug Standard: CCS1 (American standard), CCS2 (European standard)
Charging Mode: IEC 61851 Charging Mode 4
