Key Specifications / Features
Our Level 3 DC EV Charger offers robust performance with an output range of 90kW to 120kW and supports DC output voltages from 200V to 750V, with an output current of 0-250A. Featuring IP54 protection and operating at a frequency of 50±1Hz, it ensures durability and reliable performance. This charger meets international safety standards and is certified with GB/T, cULus, CE, and RoHS listings, guaranteeing compliance with global safety and environmental regulations.
- Model no.: EVCC-DCEVC-20240809-08
- Hits: 27
- Categories: DC EV Chargers
Detail Information

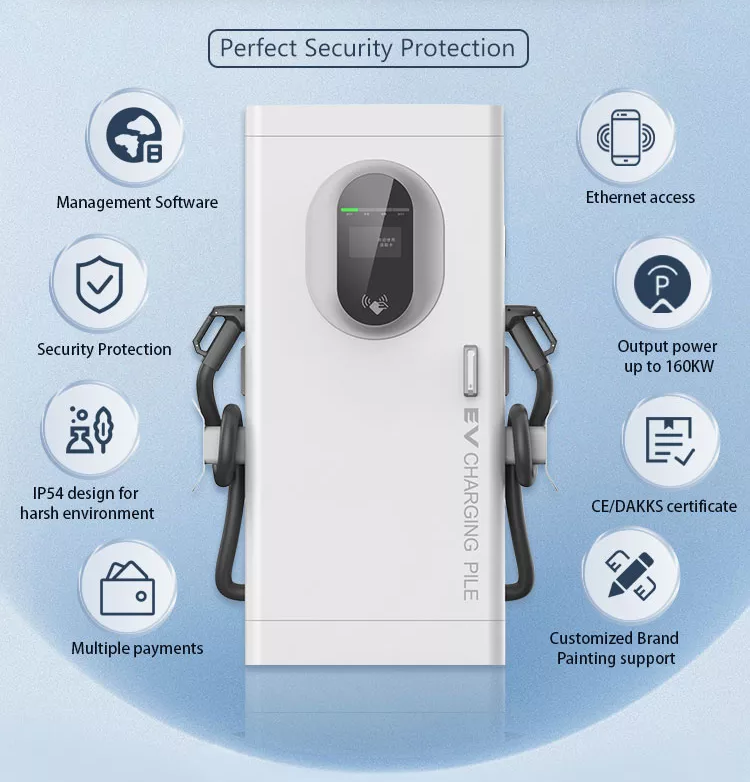

IP54 DC EV Charger, Level 3, 90kW-120kW, 200-750V DC.
Rated Power: 90kW - 120kW
Equipment Dimension: 1620*750*560mm
Input Voltage: 380V AC±15%
Input Frequency: 50±1Hz
IP Protection: IP54
Communication: Ethernet / 4G
Output Voltage: 200-750V DC
Output Current: Constant Power:0-250A, Partial Power: 0-210A
Cable Length: 5 Meter
Efficiency: ≥95%
Power Factor: ≥0.98(above 50% load）
Screen: 7 inch Highlight Color Touch Screen
Charging Mode: Automatic Charging Full, Fixed Power Fixed Amount, Fixed time

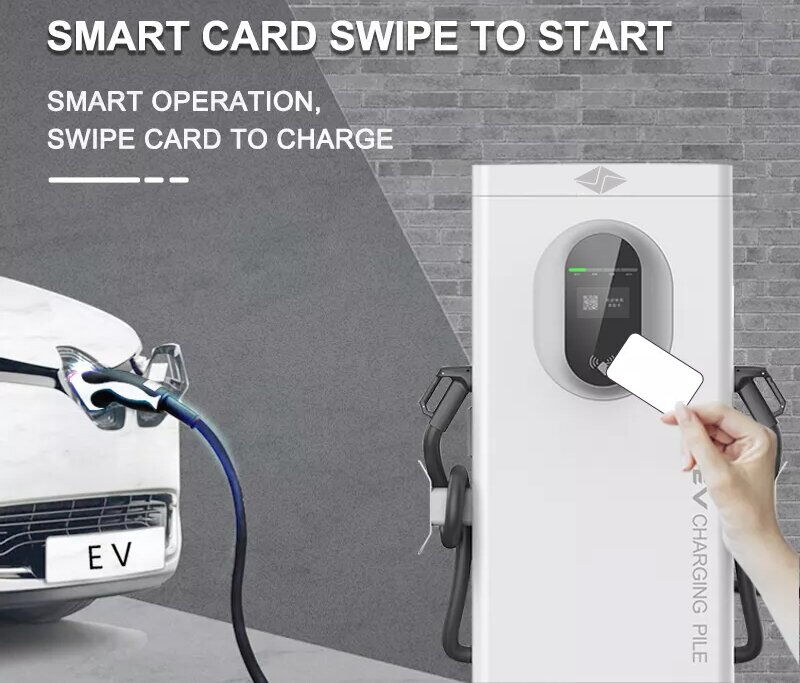

Charging Method: Swipe card / Scan Code / Password
Network Way: Ethernet/4G
Safety Function: Charging plug temperature detection, overvoltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
Working Temperature: -20°C - +50°C
Altitude: <2000m
Cooling Method: Air Cooling
Noisy Control: ≤60dB
Rated Power: 90kW - 120kW
Equipment Dimension: 1620*750*560mm
Input Voltage: 380V AC±15%
Input Frequency: 50±1Hz
IP Protection: IP54
Communication: Ethernet / 4G
Output Voltage: 200-750V DC
Output Current: Constant Power:0-250A, Partial Power: 0-210A
Cable Length: 5 Meter
Efficiency: ≥95%
Power Factor: ≥0.98(above 50% load）
Screen: 7 inch Highlight Color Touch Screen
Charging Mode: Automatic Charging Full, Fixed Power Fixed Amount, Fixed time
Charging Method: Swipe card / Scan Code / Password
Network Way: Ethernet/4G
Safety Function: Charging plug temperature detection, overvoltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, lightning protection, emergency stop protection, leakage protection
Working Temperature: -20°C - +50°C
Altitude: <2000m
Cooling Method: Air Cooling
Noisy Control: ≤60dB
