AC vs DC Charging: What Are The Differences?

On this page

Introduction

In the rapidly evolving world of electric vehicles (EVs), one question frequently pops up among new owners and curious drivers alike: What’s the difference between AC and DC charging?

To answer that, we first need to understand the basics of how electricity works. The fundamental distinction lies in how electric current flows. AC, or Alternating Current, is the form of electricity that we commonly use in homes and businesses. It flows in a wave-like, sinusoidal pattern, reversing direction at regular intervals. That’s the type of current delivered through the power grid, powering your lights, appliances, and, yes — your EV’s home charging station.

DC, or Direct Current, works differently. This current flows in a single, steady direction, like water running through a pipe without changing course. Batteries — including the ones in your smartphone, laptop, and electric vehicle — store energy in DC form. This means that whether you’re plugging your car in at home overnight or using a high-powered charging station on a road trip, at some point, AC power must be converted to DC to charge the battery.

This conversion process defines the core difference between AC and DC charging for electric vehicles — where the conversion happens, how fast energy flows, and what that means for your time and wallet. Let’s explore how it works and why it matters.

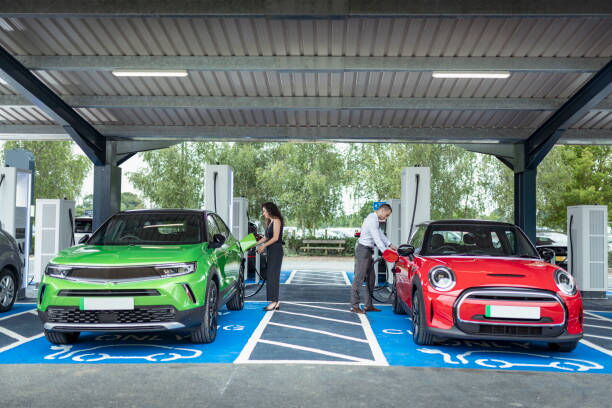

EV Charging Stations

How Electric Car Batteries Work

At the heart of every electric vehicle is its battery — a sophisticated unit that stores energy and delivers power to the electric motor. EV batteries are massive compared to everyday batteries but work on the same basic principle: they store and discharge electricity as DC power.

However, the grid — your home’s electrical supply — only delivers AC power. So, whenever you plug your car into an AC outlet, the electricity must be converted from AC to DC before it can be stored in the battery.

This conversion doesn’t happen magically. It’s handled by a built-in device called the onboard charger. The onboard charger sits between the charge port and the battery, managing the conversion and ensuring the battery receives the correct voltage and current without being overcharged or damaged.

AC Charging: Slow, Steady, and Perfect for Home Use

When you plug your EV into your home charger, you’re using AC charging by default. Most home EV chargers — including Level 1 and Level 2 chargers — supply AC power straight from your household supply.

Here’s what makes AC charging so practical for daily use:

Onboard Conversion

The vehicle’s onboard charger takes care of converting AC to DC, so you don’t need any extra equipment beyond your charging cable and wall box.

Safe for Overnight Charging

AC charging is relatively slow, which might sound like a disadvantage, but it’s ideal for overnight charging. You can plug your car in when you get home, and by morning, it’s topped up and ready to go.

Lower Installation Cost

Installing an AC charger at home is straightforward. Many drivers can simply plug their car into an existing household socket for Level 1 charging or install a dedicated Level 2 wall box for faster speeds.

Flexibility

AC chargers can be used virtually anywhere — from your garage to your workplace to parking lots with public chargers.

However, AC charging does have its limitations. The speed is largely determined by the capacity of your car’s onboard charger. For example, if your car has a 7 kW onboard charger, plugging into a 22 kW AC charger won’t give you faster charging; you’ll still be limited to 7 kW.

Typical AC Charging Speeds

Level 1 (120V, common in North America)

Adds about 3-5 miles of range per hour — very slow, but easy to use with no special equipment.

Level 2 (208-240V, common in North America and Europe)

Adds about 12-40 miles of range per hour, depending on the charger and the vehicle’s onboard converter.

In essence, AC charging is your everyday solution for keeping your EV ready without stress.

DC Fast Charging: The Need for Speed

While AC charging is great for overnight top-ups, sometimes you need to get back on the road — fast. That’s where DC fast charging comes in.

Unlike AC charging, DC fast charging does not rely on your car’s onboard charger for the AC-to-DC conversion. Instead, the conversion happens inside the charging station itself. The charger converts AC power from the grid to DC and sends that DC power directly to your battery. By bypassing the onboard charger’s limitations, DC charging can deliver significantly more power in a shorter time.

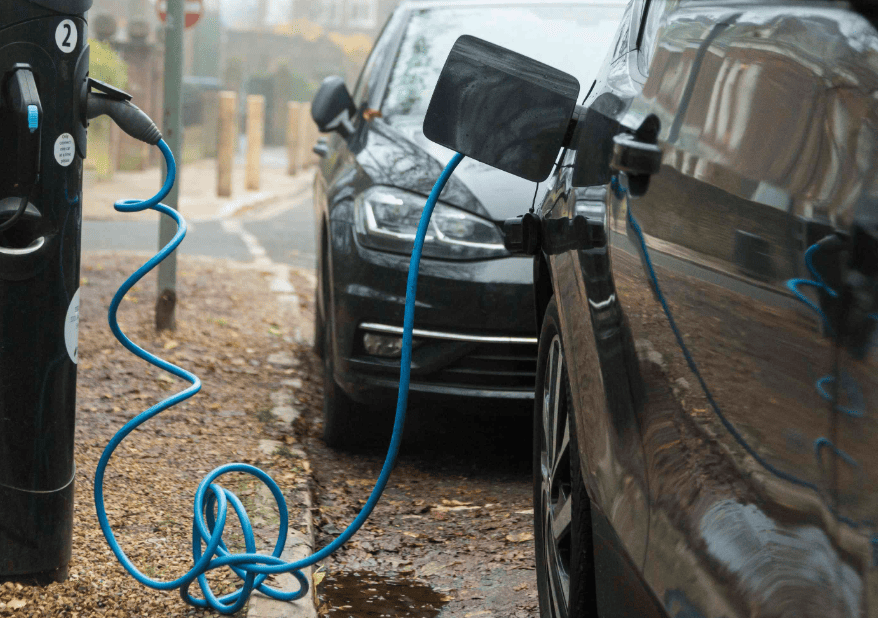

Public EV Charging

Key Benefits of DC Fast Charging

Much Faster: DC fast chargers can deliver anywhere from 50 kW to 350 kW, depending on the charger and your vehicle’s capability. This can add up to 100 or more miles of range in about 20-30 minutes.

Ideal for Long Trips: On road trips, DC fast chargers are essential. They’re typically installed at highway rest stops, shopping centers, and service areas where drivers need a quick turnaround.

Supports Heavy-Duty Use: Fleet operators and commercial EVs rely on DC fast charging to keep vehicles on the road with minimal downtime.

Technical Details

Higher Voltage: DC fast charging stations often operate at 400V to 800V or even higher, compared to the 120V-240V range for AC charging.

Special Connectors: Because of the higher power levels, DC fast charging requires specialized connectors, like CCS (Combined Charging System), CHAdeMO, or Tesla Supercharger plugs.

Understanding the Limitations

With all its speed and convenience, DC fast charging isn’t without drawbacks:

Expensive Infrastructure

Installing a DC fast charging station is far more costly than a simple AC wall box. It requires robust electrical connections, heavy-duty transformers, and sometimes upgrades to the local grid.

Battery Health Considerations

Repeated high-speed charging can accelerate battery degradation over time. Most manufacturers recommend using DC fast charging sparingly, supplementing it with regular AC charging whenever possible.

Availability

DC fast chargers are mostly found along highways and major travel routes, not in residential areas. They’re intended for quick top-ups on the go, not daily use.

How Do AC and DC Chargers Actually Work?

To better appreciate the differences, let’s break down how each system works step-by-step.

AC Charging Workflow

Grid Power: AC power flows from the grid to your home charger or public Level 2 station.

Onboard Charger: Inside your EV, the onboard charger converts the AC to DC.

Battery Storage: The DC power is stored in the battery cells, powering your vehicle when you drive.

DC Charging Workflow

Grid Power: AC power from the grid reaches the DC fast charging station.

External Converter: The station’s built-in converter turns AC power into DC.

Direct to Battery: The DC power bypasses the onboard charger and goes straight into your battery pack.

The result? Faster charging because the process eliminates the bottleneck of the onboard charger’s limited capacity.

Which One Should You Use?

In reality, most EV drivers use both AC and DC charging, depending on their needs:

At Home: AC charging is the go-to. It’s convenient, cost-effective, and works overnight.

At Work or Around Town: Many public chargers are AC Level 2 units. They’re great for topping up while you’re parked for an hour or two.

On the Road: When you’re traveling longer distances or need a quick boost, DC fast charging stations save the day.

Your choice depends on your driving habits. If your daily commute is short and predictable, you may rarely need DC fast charging at all.

Looking to the Future

As EV technology advances, both AC and DC charging are evolving:

Onboard Chargers Are Improving: Many new EVs come with higher-capacity onboard chargers, allowing faster AC charging than older models.

Ultra-Fast DC Charging: New charging stations are pushing the limits, with ultra-fast chargers delivering up to 350 kW. This could make long-distance EV travel as convenient as refueling a gasoline car.

Smart Charging: Future charging networks will balance loads on the grid, adjust charging speeds based on demand, and integrate renewable energy sources, all while keeping your battery healthy.

Bidirectional Charging: Some advanced systems allow EVs to return power to the grid or a building — called V2G (vehicle-to-grid) or V2H (vehicle-to-home). This technology uses the DC power stored in your car battery, further blurring the line between charging and power supply.

Conclusion

Understanding the difference between AC and DC charging isn’t just about electrical jargon — it’s about making the best choice for your needs as an EV driver.

AC charging is perfect for slow, steady, everyday use, especially at home or work.

DC fast charging provides the speed and power needed for long trips or quick top-ups.

Both play a vital role in building a reliable, flexible charging ecosystem that keeps electric vehicles on the move. As the EV market grows, charging infrastructure will continue to expand, delivering faster, smarter, and more convenient solutions for drivers around the world.

Whether you’re plugging in overnight in your garage or topping up at a highway rest stop, you’re part of a future that’s cleaner, greener, and — thanks to the flow of AC and DC power — more electrifying than ever.
