The rapid adoption of electric vehicles (EVs) has highlighted the importance of reliable and efficient charging systems. While much attention is often placed on charging speed, plug standards, and charging infrastructure, a critical but less discussed component is the electrical filtering system built into both alternating current (AC) and direct current (DC) EV chargers.
Electrical filters—whether passive or active—are essential for maintaining voltage stability, protecting EV batteries, and ensuring safety during charging sessions. Passive filters use inductors and capacitors to redirect or attenuate unwanted signals at specific frequencies, helping smooth out voltage harmonics and transient disturbances. Active filters go a step further by dynamically adjusting inductance and capacitance to counteract real-time fluctuations in voltage, thereby preventing instability and the risks of thermal runaway.
Both passive and active filters also play a vital role in reducing electromagnetic interference (EMI) and radio frequency interference (RFI). Without these protective mechanisms, disturbances can cause incomplete charging cycles, overcharging, undercharging, or even catastrophic failures such as overheating and battery fires.
This article examines how filtering works in EV charging, its role in both AC and DC systems, and why it is a cornerstone for safe and efficient electrification.
When EV chargers operate without adequate filtering, several risks emerge:
Voltage fluctuations can mislead charging systems, resulting in batteries being charged beyond their recommended capacity or insufficiently charged. Overcharging accelerates cell degradation, raises the risk of thermal runaway, and can compromise battery integrity, while undercharging reduces range and disrupts vehicle operation.
EMI and RFI create unpredictable fluctuations in power delivery. This can disrupt battery management systems (BMS), onboard chargers (OBC), and other critical vehicle electronics. Left unchecked, EMI/RFI contributes to excess heat, mechanical stress, and inefficiency.
Heat generation is an unavoidable byproduct of charging, but poor filtering amplifies this effect by introducing voltage irregularities. Over time, uncontrolled heat accelerates wear on electronic components, jeopardizing the safety of both the charger and the vehicle.
To counter these issues, electrical filters stabilize current flow, maintain clean signals, and regulate energy transfer, ensuring EV batteries are charged efficiently, safely, and with maximum lifespan.
Alternating current (AC) is the global standard for power transmission and consumption. Its defining characteristic is that the flow of electric charge periodically reverses direction. Invented by Nikola Tesla and commercialized by George Westinghouse, AC power proved superior to direct current for long-distance transmission because it can easily change voltage levels via transformers.
AC power flows from power plants through substations and transformers into homes and businesses, powering everything from lights and refrigerators to televisions and air conditioners.
For EVs, AC charging involves drawing alternating current from the grid and converting it into direct current using the vehicle’s onboard charger (OBC). Since EV batteries store energy as DC, this conversion step is critical.
Level 1 AC Charging: Uses a standard 120V outlet, common in North American households. It is the slowest option, typically providing 2–5 miles of range per hour.

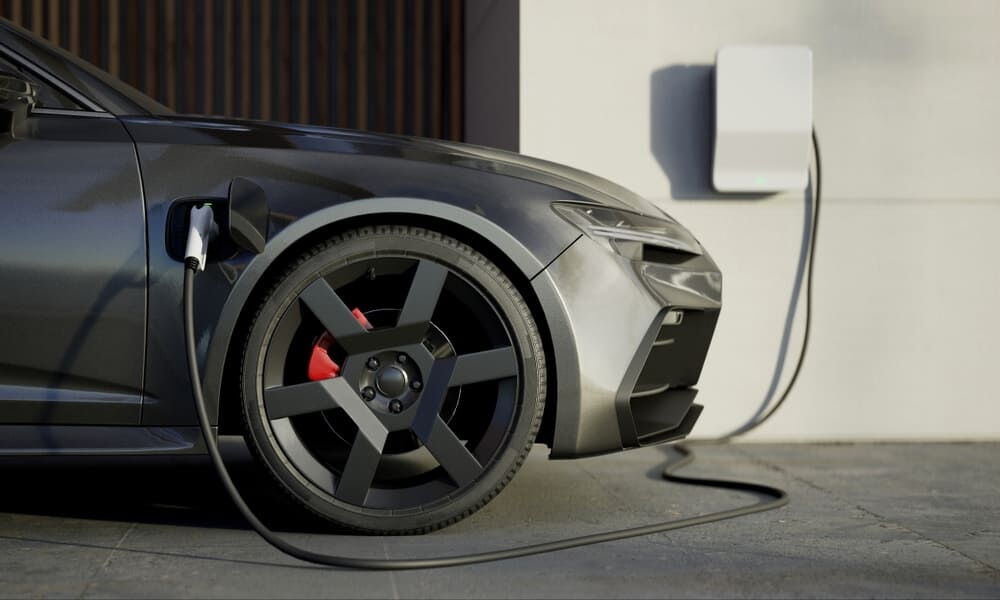

Level 2 AC Charging: Uses a 208–240V outlet, often installed in garages or workplaces. It adds 10–60 miles of range per hour and is the most common choice for home charging.
While slower than DC fast charging, AC charging is highly practical for overnight replenishment and day-to-day commuting needs.
AC chargers incorporate multiple filtering techniques:
These suppress high-frequency noise originating from the AC supply or external devices, ensuring compliance with electromagnetic compatibility (EMC) standards.
Non-linear loads in modern electrical systems introduce harmonics—distorted waveforms that cause overheating and inefficiency. Harmonic filters correct these distortions, stabilizing the voltage profile and protecting sensitive EV components.
PFC circuits improve how efficiently electrical power is drawn from the grid, reducing energy waste and ensuring smoother operation.
These defend against sudden voltage spikes caused by lightning strikes, grid disturbances, or equipment faults, preventing damage to both chargers and EVs.
Direct current (DC) is characterized by a constant, unidirectional flow of electric charge. Unlike AC, it does not alternate. Thomas Edison was one of its earliest champions. While AC ultimately dominated power distribution, DC found niches in electronics, batteries, and renewable energy systems because of its stability and compatibility with storage devices.
DC fast charging bypasses the EV’s onboard charger by delivering direct current straight to the battery. This eliminates conversion steps, enabling significantly faster charging speeds.
Level 3 DC Charging (Fast Charging): Typically delivers 400–900V of direct current, adding 60–250 miles of range in 20–40 minutes. These chargers are strategically placed along highways and in commercial hubs to support long-distance travel.
Given the higher voltages and faster charging rates, DC chargers demand advanced filtering and regulation:
These suppress switching noise generated by rapid high-frequency electronic components within DC chargers. Without them, interference could disrupt EV electronics and nearby equipment.
Stabilize direct current output to prevent overvoltage and undervoltage scenarios. This is crucial for protecting battery health during high-speed charging.
DC fast charging generates significant heat. Integrated cooling systems and thermal management filters prevent overheating, reducing stress on both chargers and EV batteries.
Though less pronounced in DC than AC, harmonic issues may still arise in certain power electronics. DC chargers employ filters to counter these disturbances and ensure clean energy delivery.
To maximize convenience, many public charging stations and commercial setups now offer dual-mode chargers that support both AC and DC charging. These versatile systems integrate:
EMI/RFI suppression for both alternating and direct currents
Harmonic filters to manage distortion from non-linear loads
Surge protection and voltage stabilization for high reliability
Thermal management to ensure stable operation across charging modes
Such hybrid systems reflect the growing demand for flexible charging infrastructure that can serve different EVs with varying charging needs.
Best for residential use.
Very slow but requires no special installation.
Common in homes, workplaces, and public areas.
Faster, practical for overnight or daytime charging.
Public fast-charging stations.
Essential for road trips and commercial EV fleets.
While AC and DC charging systems share common filtering goals—stabilizing current, suppressing EMI/RFI, and protecting electronics—their methods differ:
AC Filters: More focused on harmonics, power factor correction, and grid noise suppression.
DC Filters: More concerned with voltage regulation, heat management, and suppressing high-frequency switching noise.
Electrical filters go beyond improving efficiency; they are vital for safety and reliability:
By preventing overvoltage and thermal runaway, filters extend battery lifespan and reduce fire risks.
Filters reduce stress on internal charger components, lowering maintenance costs and extending equipment life.
Filters help chargers interact smoothly with the grid, reducing strain during peak demand and ensuring compliance with regulatory standards.
Safe, efficient, and reliable charging systems encourage broader EV adoption, supporting the transition to sustainable transportation.
As EV technology evolves, so too will the sophistication of filtering systems. Key trends include:
Integration with AI and digital monitoring tools will allow real-time adaptation to grid conditions, optimizing performance dynamically.
As vehicle-to-grid (V2G) and vehicle-to-home (V2H) applications grow, filters will play a crucial role in managing bidirectional energy flow safely.
EV chargers increasingly connect to solar panels and wind turbines. Filters will ensure stable current delivery despite the intermittent nature of renewable sources.
Advances in materials and design will lead to smaller, more efficient filter systems, reducing installation space and improving performance.
With more EVs and chargers on the grid, global regulatory agencies will tighten electromagnetic compatibility standards, pushing manufacturers to adopt advanced filtering solutions.
Electrical filtering may not grab headlines like fast-charging times or battery ranges, but it is one of the most critical enablers of safe, efficient EV charging. By suppressing EMI/RFI, stabilizing voltage, and managing thermal effects, filters protect EV batteries, chargers, and power grids alike.
In AC charging, filters focus on harmonics, power factor correction, and grid noise suppression, ensuring stable overnight charging for everyday use.
In DC charging, filters emphasize voltage regulation, noise suppression, and thermal management to support rapid, high-power energy transfer.
In dual-mode chargers, both filtering sets combine, creating versatile infrastructure ready for varied user needs.
As EV adoption accelerates worldwide, electrical filters will continue to underpin the charging ecosystem, quietly ensuring that every charge is not only fast and convenient but also safe and reliable.
