Introduction

As the electric vehicle (EV) market expands, the demand for efficient, versatile, and fast charging systems has become paramount. Among the many charging technologies available, the Combined Charging System (CCS) stands out for its ability to cater to various charging needs, from slow AC charging to ultra-fast DC charging.

Widely adopted in Europe and North America, CCS has proven to be a reliable, high-performance solution that meets the diverse requirements of EV users. In this article, we delve into what CCS is, its types, benefits, limitations, compatibility, and how it compares to other charging systems. We'll also explore its role in the future of EV infrastructure.

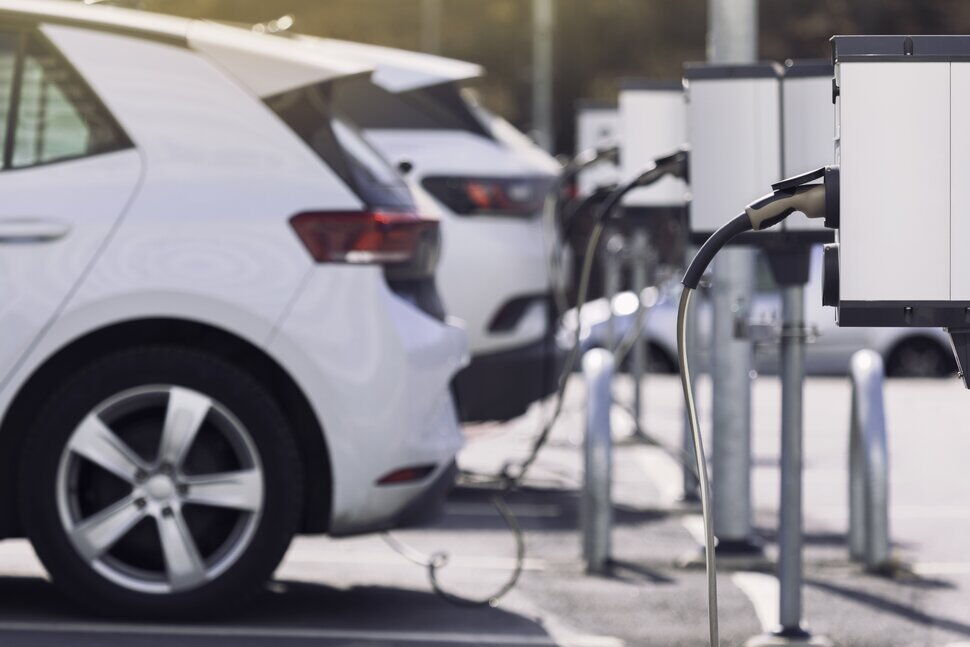

Public EV Charger

What is CCS (Combined Charging System)?

The Combined Charging System, commonly known as CCS, is a state-of-the-art EV charging standard designed to provide both AC (alternating current) and DC (direct current) charging options through a single connector. Its versatility allows EV owners to switch seamlessly between slow and rapid charging, depending on their needs and the available infrastructure.

Unlike traditional chargers, CCS builds on the Type 2 plug (commonly used in Europe for slow AC charging) by incorporating two additional DC power lines. These lines enable the connector to handle higher voltages and deliver faster charging rates, making it ideal for ultra-rapid charging.

The term "combined" in CCS reflects its dual capability to support both AC and DC charging. This adaptability has made it a favorite among automakers and charging network providers, as it simplifies the charging process for users while ensuring compatibility with a wide range of vehicles.

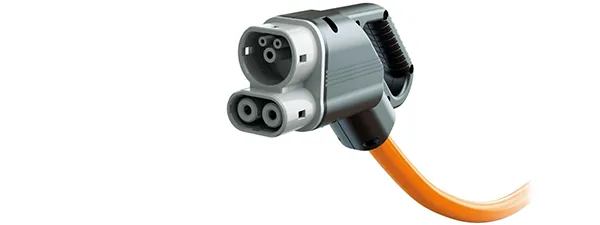

CCS

Types of CCS Chargers

CCS chargers are available in two main configurations, each tailored to the specific needs of different regions and markets:

1. CCS Combo 1 (CCS1)

Region: North America and Japan.

Design: Combines the SAE J1772 connector for Level 2 AC charging with the CCS connector for DC fast charging.

Key Features: Widely used in countries that follow the SAE standards, CCS1 ensures compatibility with most EVs sold in these regions.

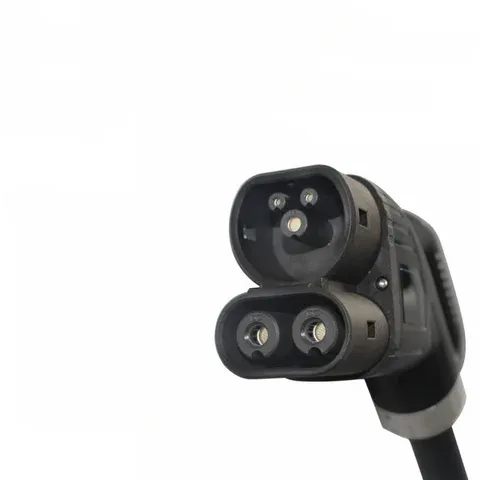

2. CCS Combo 2 (CCS2)

Region: Europe and other regions adhering to IEC standards.

Design: Combines the Type 2 connector for Level 2 AC charging with the CCS connector for DC fast charging.

Key Features: Favored in Europe due to its compatibility with the Type 2 plug, which is the standard for AC charging in the region.

Despite their differences in AC connectors, both CCS1 and CCS2 use the same design for DC fast charging. This standardization ensures global compatibility and simplifies the development of charging infrastructure.

Benefits of CCS Charging

The Combined Charging System offers a range of advantages that have made it a leading choice for EV manufacturers and consumers:

1. Ultra-Fast Charging Speeds

CCS chargers support power ratings of up to 350 kW, allowing vehicles to gain up to 200 miles of range in approximately 12 minutes. This makes them faster than Tesla’s Superchargers, which currently max out at 250 kW and take about 15 minutes to deliver the same range.

2. Wide Adoption Across Brands

Unlike proprietary systems such as Tesla’s NACS (North American Charging Standard), CCS technology is supported by numerous automakers, including Hyundai, Kia, Mercedes-Benz, Volvo, and Lucid. This widespread adoption ensures greater accessibility and flexibility for EV owners.

3. Dual Charging Capability

CCS combines AC and DC charging in a single connector, providing users with the flexibility to choose between slow and fast charging depending on their requirements and available infrastructure.

4. Plug-and-Charge Convenience

Similar to Tesla’s plug-and-charge feature, CCS allows users to simply connect their vehicle to the charger and begin charging without needing to manually authorize payment or access.

5. Greater Geographic Coverage

While Tesla’s Supercharger network boasts more individual ports, CCS chargers are distributed across a broader range of locations, ensuring better accessibility in many regions.

Challenges and Disadvantages of CCS Charging

While CCS offers significant advantages, it is not without its challenges:

1. Complex Connector Design

The CCS connector is bulkier and more intricate than simpler designs like NACS. This can make it slightly less user-friendly, particularly for first-time users.

2. Variable User Experience

The performance of CCS charging stations can vary depending on the provider and vehicle model. Inconsistent charging speeds or functionality may lead to user frustration.

3. Slower AC Charging

Although CCS excels in DC fast charging, its AC charging capabilities are less impressive compared to some systems specifically designed for high-power AC charging.

4. Infrastructure Gaps

Despite its widespread adoption, CCS infrastructure is still unevenly distributed in some regions, particularly in rural or less-developed areas.

5. High Implementation Costs

Installing high-power CCS chargers can be expensive, which may increase the cost of charging services for consumers.

CCS Charger Compatibility

One of the strengths of CCS technology is its broad compatibility with various EV models. Automakers equip their vehicles with the appropriate CCS connector (CCS1 or CCS2) based on the target market, ensuring seamless integration with existing charging networks.

Additionally, CCS chargers are backward-compatible with Type 2 connectors, allowing users to charge their vehicles using slower AC charging when necessary. This versatility makes CCS an attractive option for both manufacturers and consumers.

CCS vs. Other Charging Standards

CCS competes with other EV charging standards, including CHAdeMO and Tesla’s NACS. Here’s how they compare:

CHAdeMO

Primarily used in Japan and some Asian markets.

Slower charging speeds and less widespread adoption in newer EV models.

Tesla’s NACS

Offers a streamlined design and strong integration with Tesla’s ecosystem.

Limited to Tesla vehicles, although efforts are underway to open the network to other brands.

CCS

Delivers faster charging speeds and greater compatibility with a diverse range of EVs.

Supported by numerous automakers and widely adopted in Europe and North America.

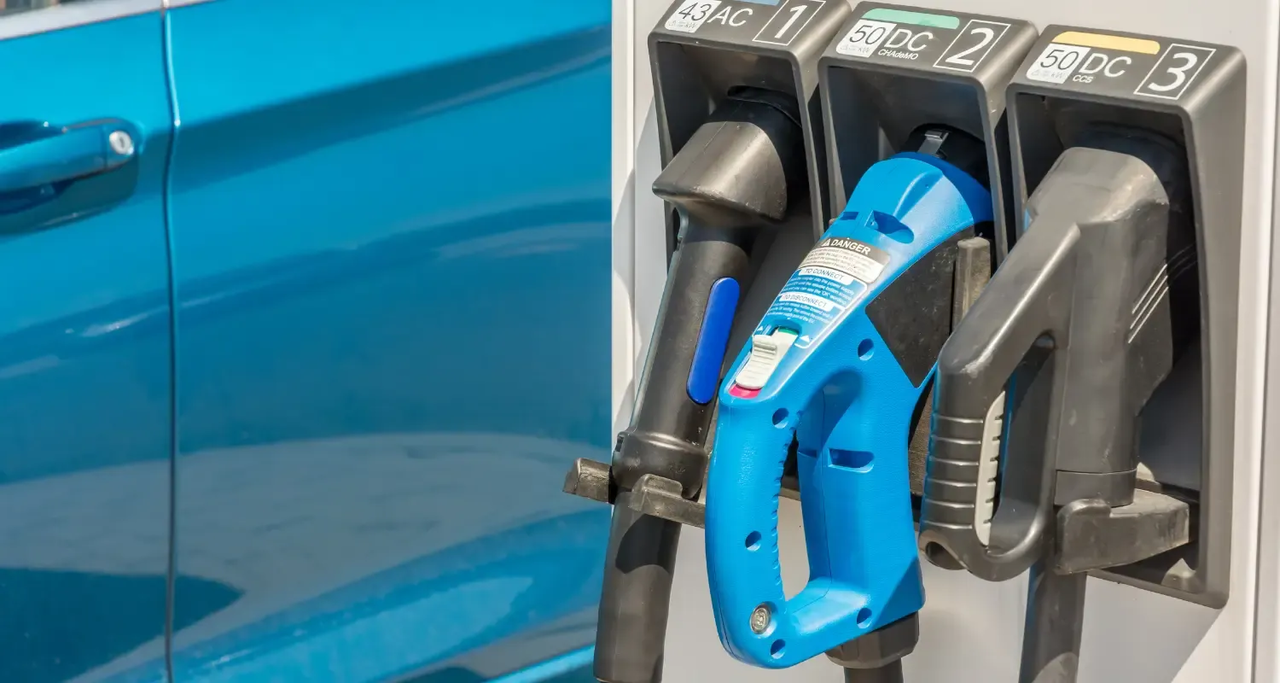

The Future of CCS Charging

As the EV industry continues to evolve, CCS technology is poised to play a critical role in shaping the future of charging infrastructure. Key trends include:

1. Enhanced Charging Speeds

Ongoing research and development aim to push CCS charging speeds beyond the current 350 kW threshold, enabling even faster charging times and reducing downtime for EV owners.

2. Broader Adoption

With more automakers and charging network providers embracing CCS, its availability and accessibility are expected to grow significantly in the coming years.

3. Integration with Smart Grids

CCS chargers are increasingly being integrated with smart grids, allowing for better energy management and the use of renewable energy sources such as solar and wind power.

4. Improved User Experience

Advances in technology are focused on enhancing the user experience by improving software interfaces, standardizing charging protocols, and ensuring reliable performance across all CCS stations.

5. Global Standardization

Efforts are underway to establish CCS as a global charging standard, further simplifying the development and deployment of EV infrastructure.

Conclusion

The Combined Charging System (CCS) has emerged as a cornerstone of modern EV charging infrastructure, offering a versatile, efficient, and high-performance solution for electric vehicle owners. Its ability to support both AC and DC charging, coupled with its compatibility with a wide range of EV models, makes it a crucial component of the global transition to sustainable transportation.

While challenges remain, such as infrastructure gaps and high implementation costs, the rapid growth of CCS networks and ongoing technological advancements are addressing these issues. As the EV market continues to expand, CCS will undoubtedly play a central role in shaping the future of electric mobility, ensuring a seamless and convenient charging experience for users worldwide.
