As electric vehicles (EVs) continue to evolve from an emerging trend into a mainstream mode of transportation, charging technology is advancing just as rapidly. One of the most important developments in recent years is the widespread adoption of fast and ultra-fast DC charging systems, which are fundamentally transforming how drivers refuel their vehicles. To understand why DC fast charging makes such a difference—and how it compares to traditional AC charging—it’s essential to first understand the basics of how electric cars receive and store energy.
Most residential and public AC EV chargers rely on alternating current, meaning the electricity coming from the grid must pass through an onboard charger located inside the vehicle. This onboard charger converts AC power into the direct current required by the EV battery. The process is safe and reliable, but inherently limited by the capabilities of the onboard charging system. Depending on the make and model, onboard chargers typically handle between 3.6 kW and 11 kW—occasionally reaching up to 22 kW in certain vehicles. These limitations mean that AC charging remains relatively slow, even with high-quality Level 2 equipment.
DC fast charging, however, takes a completely different approach. Instead of routing power through the onboard charger, DC fast chargers send direct current straight to the battery. The conversion from AC to DC takes place inside the charging station itself, allowing for far higher power delivery—often 50 kW, 150 kW, 350 kW or more. This bypass dramatically reduces charging time, making fast charging ideal for long-distance travel, commercial fleets, or quick top-ups during busy schedules.
To summarize simply:
AC (slow/Level 2) charging:
Grid power → vehicle’s onboard charger → EV battery
DC fast charging:
Grid power → converted from AC to DC inside the station → EV battery
This fundamental difference is the reason DC fast charging can fill a battery in minutes, not hours. But to fully appreciate how fast charging works, we need to look deeper at the charging process, the chemistry inside EV batteries, and the technologies that enable high-speed power delivery.
At its core, EV charging is the process of delivering electrical energy from an external source to the vehicle’s battery. What makes EV charging unique compared to traditional fueling is the underlying electrochemical process happening inside the battery cells.
All EV batteries operate on direct current. The power coming from electrical grids, however, is alternating current. This means AC-to-DC conversion is essential for charging.
When plugged into an AC charger, the car performs this conversion internally using the onboard charger.
When using a DC fast charger, the station itself handles the conversion and supplies direct current directly to the battery pack.
Lithium-ion batteries—the dominant battery type in modern EVs—operate using a reversible chemical reaction. Charging and discharging are essentially the movement of lithium ions between the positive electrode (cathode) and the negative electrode (anode).
During charging:
Lithium ions shift from the cathode to the anode, storing energy.
During discharging:
Lithium ions flow back to the cathode, releasing energy that powers the EV motor.
The electrons moving through the external circuit generate the electrical power delivered to the motor, ultimately driving the wheels.
When lithium ions accumulate fully in the anode, the battery is fully charged. When they return fully to the cathode, the battery is depleted. The careful management of this entire process—handled by the car’s battery management system (BMS)—ensures safety, efficiency, and long battery life.
EV charging is commonly divided into three categories:
Very slow, typically used in households with standard outlets.
Faster and more efficient; commonly found in homes, workplaces, and public areas.
Offers rapid charging times by bypassing the onboard charger and delivering high-power DC electricity directly to the battery.
Fast and ultra-fast charging are the technologies that enable EVs to be more competitive with internal combustion vehicles in terms of refueling convenience.
As EV adoption accelerates worldwide, drivers expect charging to be more convenient, more available, and faster than ever before. Fast and ultra-fast charging stations are now essential infrastructure—and they offer several clear advantages.
One of the most compelling benefits of fast and ultra-fast charging is the dramatic reduction in charging time. Instead of waiting for hours, drivers can recharge a significant portion of their battery in minutes.
Typical fast-charging experiences:
20–40 minutes to reach 80% capacity, depending on:
Battery size
EV model
Charging station output
Environmental conditions
For example:
A 50 kW fast charger may take 30–40 minutes to add substantial range.
A 150 kW charger can reduce that time to around 15–25 minutes.
Ultra-fast chargers (300 kW and above) can add hundreds of kilometers of range in under 10–15 minutes for compatible vehicles.
This rapid turnaround meets the real-world needs of drivers who travel long distances or rely heavily on their vehicles for work.

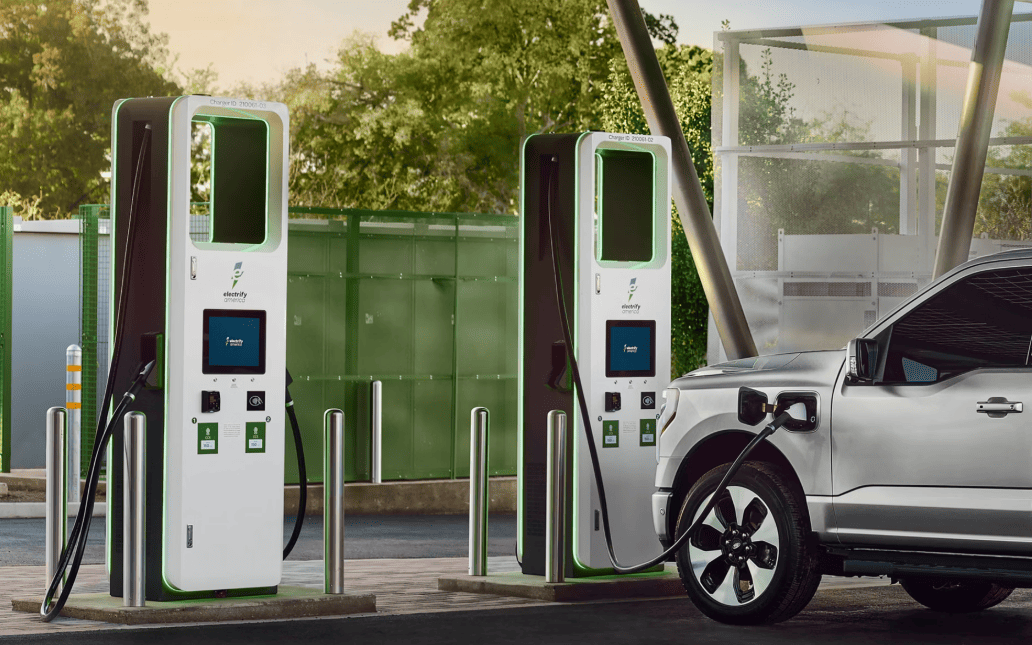

Fast charging stations are strategically positioned along highways, major transport corridors, airports, shopping centers, and commercial hubs. This makes it possible for EV drivers to enjoy seamless, uninterrupted travel.
Infrastructure providers like Atlante place fast and ultra-fast chargers near:
Major roads and expressways
Service stations and rest stops
Business districts
Airports and transport hubs
Retail centers and supermarkets
Tourist and leisure locations
These locations often include additional amenities—restaurants, restrooms, convenience stores, and seating areas—allowing drivers to comfortably use their charging time.
Fast charging stations improve the efficiency of EV networks by enabling more vehicles to use the same charger in a shorter time.
Benefits include:
Reduced queues and wait times
Higher station throughput
Improved user satisfaction
More efficient land and resource use
For charging operators, faster turnover boosts operational efficiency and makes charging stations more economically viable.
Most fast and ultra-fast chargers are located on public land and support a wide range of vehicle brands. Thanks to open standards and interoperability protocols, drivers can access charging using mobile apps from various e-Mobility Service Providers (eMSPs).
This interoperability ensures:
Drivers don’t need multiple accounts for different stations
EVs from different manufacturers can use the same fast chargers
More consistent access to real-time station availability and pricing
The result is a more unified and user-friendly charging ecosystem.
To understand why DC charging is so much faster, it helps to look at the underlying engineering.
Fast charging stations include high-powered rectifiers and converters that transform AC grid power into DC electricity at a controlled voltage and current.
Before charging begins, the station and the vehicle exchange critical information:
Battery temperature
Current charge level
Maximum allowable charging power
Safety and thermal limits
Charging protocol support
This communication ensures the EV receives only as much power as it can safely handle.
DC fast chargers operate at:
400–1000 V
Up to several hundred amperes
This high-voltage, high-current delivery enables rapid energy transfer.
The vehicle’s BMS plays a critical role in managing:
Charging curve (constant current then constant voltage)
Heat generation
Cell balancing
Overcurrent and overvoltage protection
As the battery approaches 80% capacity, the charging speed naturally slows to protect battery health—a phenomenon known as the charging taper.
A common misconception is that DC fast charging always damages EV batteries. In reality, modern EVs are designed with advanced thermal and battery management systems that minimize long-term degradation.
Safe Practices:
Avoid charging to 100% frequently using DC fast chargers
Maintain moderate battery temperatures when possible
Rely on AC charging for daily use when convenient
Fast charging is safe when used as intended—primarily for long trips or when quick energy replenishment is needed.
As EV markets mature, fast charging systems continue to evolve.
These next-generation stations will support new EV platforms capable of ultra-high-speed charging.
Liquid-cooled charging cables allow extremely high current delivery without overheating.
Integration with renewable energy, AI-based load balancing, and energy storage systems will improve efficiency and reduce grid strain.
Future fast chargers will support energy flow both ways, enabling EVs to power homes or stabilize the electrical grid.
Modern EVs are increasingly transitioning to 800-volt battery systems, enabling even faster charging speeds.
Fast and ultra-fast EV charging represents one of the most transformative leaps in modern transportation infrastructure. By bypassing the limitations of onboard AC chargers and delivering high-power DC electricity straight to the battery, fast charging dramatically shortens recharge times, improves travel convenience, and enhances the overall EV ownership experience.
As the charging ecosystem continues to expand—with strategically placed stations, improved technologies, and universal accessibility—EV drivers will enjoy faster, easier, and more reliable charging than ever before. In the broader transition toward sustainable mobility, fast charging plays a crucial role in enabling mass EV adoption and supporting the future of zero-emission transportation.
