Safety Features in Electric Vehicle Chargers You Should Know About

In the field of electric vehicle (EV) charging, safety and reliability are always the primary concerns. With the popularity of electric vehicles and the expansion of charging infrastructure, ensuring the safety of the charging process has become a critical task. Electric vehicle chargers must be embedded with a complex set of protection features to deal with a variety of potential risks that may arise and ensure the stable operation of the system under a variety of conditions. These protection features are not only important for the device itself, but also provide users with the confidence and security they need during the charging process.

The Importance of Protection Functions

Electric vehicle chargers may be affected by a variety of external factors during the working process, such as power grid fluctuations, ambient temperature changes and even weather conditions. If these external influences are not effectively controlled, they may cause damage to the charger and the electric vehicle itself, which in turn affects the safety and stability of the entire charging process. By introducing a variety of protection features into the charger, you can effectively address these potential threats and greatly improve the overall security, stability and durability of the device.

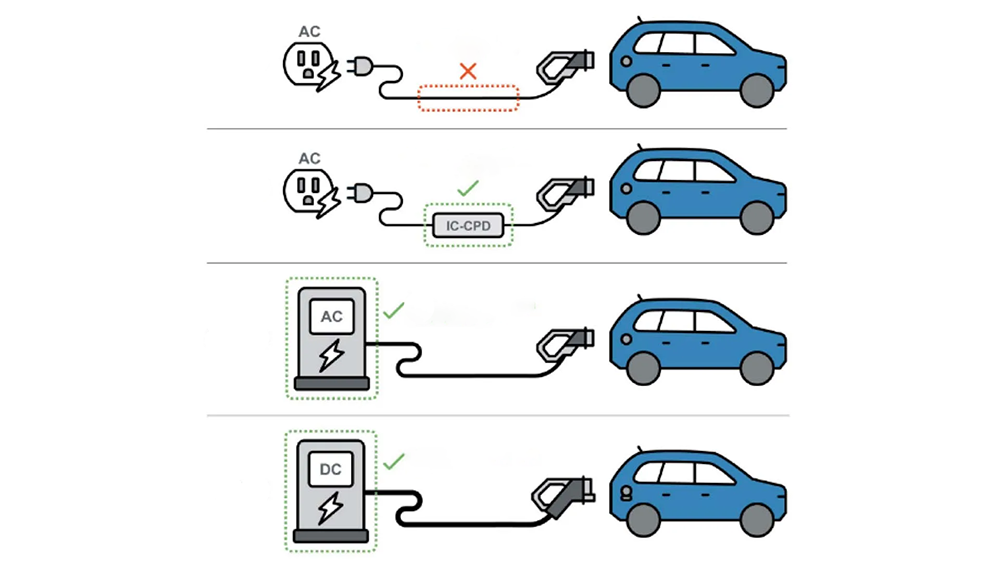

The protection function of electric vehicle charging system involves many aspects, including voltage, current, temperature, grounding, leakage and other aspects of protection measures. Each protection feature has been carefully designed to address specific risks and play a key role in the charging process. The following is a detailed description of these protection features.

Protection of Electric Vehicle Charging

Overvoltage Protection

Corresponding to the undervoltage protection, the overvoltage protection function is used to detect whether the voltage of the input power supply exceeds the safety limit. When the system detects that the voltage is too high, it immediately interrupts the charging process. Excessive voltage may cause irreversible damage to the EV charger and the internal circuit of the electric vehicle. Overvoltage protection can effectively prevent overvoltage caused by power grid voltage fluctuations or other external factors, and ensure the safety of equipment and vehicles.

Undervoltage Protection

The undervoltage protection function is mainly used to monitor the voltage level of the input power supply. When the voltage is lower than the preset safety threshold, the system immediately interrupts the charging process. Too low a voltage may cause the electric car charger to not work properly and even cause damage to the device. Undervoltage protection can effectively prevent potential threats to devices caused by unstable power grid voltage or abnormally low voltage, ensuring the security of the charging process.

Leakage Protection

The leakage protection function detects whether there is leakage current during charging through the residual current device. Once a leak is detected, the system immediately interrupts the power supply to prevent the user from suffering an electric shock due to the leakage of current. Leakage protection is one of the core measures to ensure charging safety, which can effectively prevent potential safety hazards caused by equipment failure or line damage and ensure human safety.

Lightning Protection

The lightning protection function is designed to prevent lightning damage to the charger through the surge protector. Lightning is a significant threat to electric vehicle chargers, especially during thunderstorms. Lightning protection can respond quickly when lightning strikes occur, avoid equipment damage caused by power surges, and ensure stable operation of the charger in bad weather conditions.

Ground Protection

The ground protection function ensures that the metal components inside the electric vehicle charger can be effectively grounded, thus reducing the possibility of electric shock. During the working process of the charger, the electrical parts may be charged due to internal failure or external factors. If these live parts are not properly grounded, it may pose a serious safety threat to users. Grounding protection can effectively mitigate this risk and enhance overall safety measures.

Overcurrent Protection

The overcurrent protection function is used to monitor the current level during charging. When the detected current exceeds the rated value, the system automatically interrupts the charging to prevent the failure of the device due to overload. Excessive current will cause great pressure on the charger and the internal circuit of the electric vehicle, and may even cause serious accidents such as fire. Overcurrent protection is one of the important measures to ensure the safety of equipment.

Overtemperature Protection

The overtemperature protection function monitors the temperature of the electric vehicle charger through the temperature sensor. When the temperature exceeds the safe range, the system will automatically stop the charging process. Excessive temperature may cause damage to the internal components of the device and even cause safety accidents such as fire. Overtemperature protection can effectively prevent the fault caused by the abnormal increase of the device temperature, and ensure the stability and safety of the charging process.

CP Signal Exception Protection

CP (Control Guidance) signals are used to communicate between the electric vehicle and the charger to coordinate the charging process. The CP signal exception protection function is used to check the communication integrity of CP signal during charging. When an abnormal CP signal is detected, the system immediately interrupts the charging process to protect the communication system between the charger and the vehicle from interference. This feature ensures a smooth charging process and prevents potential problems due to communication failures.

Neutral Line, Live Line Reverse Protection

Neutral line and Live line reverse connection protection Check the connection status of the live line and the neutral line in the power supply to ensure that the connection is correct. If an incorrect connection between the live line and the neutral line is detected, the system interrupts the charging process in time to prevent the device from being damaged or causing security risks due to improper connection. This function ensures the normal operation of the charger in different power grid environments.

Contactor Adhesion Protection

The contactor adhesion protection function is used to identify potential clogging or adhesion issues with contactors inside electric vehicle chargers. If the contactor sticks during the charging process, the charging process may not be interrupted normally, resulting in damage to the equipment and the vehicle. Contactor adhesion protection can effectively detect and correct this problem to ensure the reliability and safety of charging equipment.

Conclusion

These protection features not only provide a solid security guarantee for charging devices and electric vehicles, but also enhance user confidence in the charging process. As electric vehicle technology continues to advance and charging infrastructure expands, ensuring the safety of charging systems will become even more important. By continuously improving and optimizing these protection functions, we can provide users with a safer and more stable charging experience, thus promoting the healthy development of the electric vehicle industry.

In the future, we expect electric vehicle charging technology to make greater breakthroughs in safety and reliability, and further enhance the user experience. At the same time, continuous attention and improvement of the protection measures of the charging system will help to cope with the changing challenges and provide strong support for the popularization and development of electric vehicles.
