As electric vehicles (EVs) continue to gain popularity worldwide, the need for standardized and efficient charging solutions has become increasingly important. Among the various charging connectors available, the Type 2 EV connector stands out as the dominant standard in Europe, Australia, and several other regions.
This comprehensive guide explores everything you need to know about the Type 2 connector, including its design, charging capabilities, compatibility, and how it compares to other charging standards. Whether you're an EV owner, a charging infrastructure provider, or simply interested in the future of electric mobility, this article provides valuable insights into one of the most widely used EV charging solutions today.

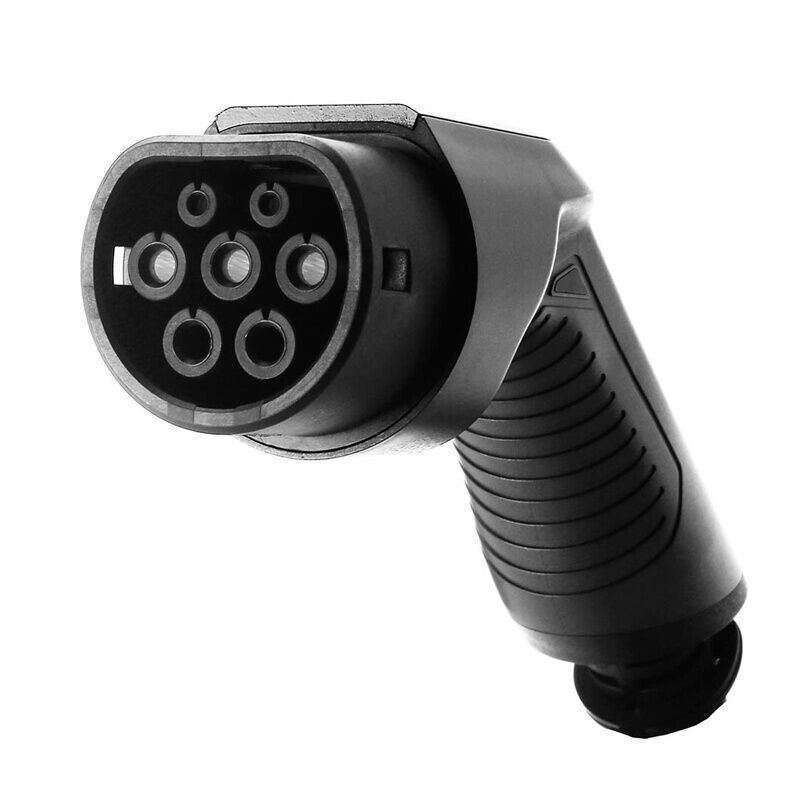

The Type 2 EV connector (also known as the Mennekes connector) is a seven-pin plug designed for alternating current (AC) charging of electric vehicles. It is the standard AC charging connector in Europe, mandated by the European Union (EU) for all public charging stations since 2014.
Key Features of the Type 2 Connector:
Seven-pin design (allowing for single-phase and three-phase charging).
Supports up to 22 kW of power (depending on the electrical supply).
Automatic locking mechanism (secures the cable during charging).
Compatible with most modern EVs (including Tesla models in Europe).
Unlike the Type 1 (J1772) connector commonly used in North America and Japan, the Type 2 connector is designed for higher power outputs and three-phase electricity, making it more efficient for faster home and public charging.
The Type 2 connector is often referred to as the "Mennekes connector" because it was originally developed by Mennekes, a German industrial manufacturer specializing in electrical solutions. The company played a crucial role in standardizing this connector for European EV charging infrastructure.
Design and Safety Features:
Robust and ergonomic shape for easy handling.
Locking mechanism prevents accidental disconnection.
Weather-resistant for outdoor charging.
Smart communication pins (allowing for secure data exchange between the car and charger).
These features make the Type 2 connector one of the safest and most reliable options for EV charging.
One of the biggest advantages of the Type 2 connector is its ability to support higher power outputs compared to older charging standards. However, the actual charging speed depends on several factors, including:
Single-phase (230V): Typically found in residential settings, delivering up to 7.4 kW (32A).
Three-phase (400V): Common in commercial and public chargers, supporting up to 22 kW (32A per phase).
While the Type 2 connector can theoretically support 22 kW, most EVs have onboard chargers that limit charging speeds. For example:
Tesla Model 3 (Europe): Supports 11 kW on three-phase power.
Nissan Leaf: Typically maxes out at 6.6 kW on single-phase.
Porsche Taycan: Can handle the full 22 kW with an optional upgrade.
|
Charging Location |
Power Output |
Approx. Charging Speed |
|
Home (Single-Phase, 7.4 kW) |
7.4 kW |
~30-40 km/h |
|
Public (Three-Phase, 11 kW) |
11 kW |
~60-70 km/h |
|
Fast Public (Three-Phase, 22 kW) |
22 kW |
~120-150 km/h |
To better understand the Type 2 connector’s role in EV charging, let’s compare it to other major standards:
5-pin design (single-phase only).
Max power: 7.2 kW (32A, 240V).
No locking mechanism (manual latch).
Used in older EVs like the Nissan Leaf (US version).
Extends the Type 2 connector with two additional DC pins.
Supports ultra-fast charging (50-350 kW).
Used by most European EVs for rapid charging.
Separate plug design (not compatible with Type 2).
Used by Nissan and Mitsubishi EVs.
Gradually being replaced by CCS in Europe.
North America: Uses a proprietary plug (compatible with J1772 via adapter).
Europe: Uses the Type 2 connector (no adapter needed for AC charging).
Most European, Australian, and UK-market EVs use the Type 2 connector for AC charging. Here’s how to check:
Type 2 ports have seven circular pins.
CCS Combo 2 ports have two extra DC pins at the bottom.
Manufacturers like BMW, Volkswagen, Tesla (Europe), and Mercedes-Benz typically use Type 2 as standard.
If your EV can plug into European public chargers without an adapter, it likely uses Type 2.
While the Type 2 connector remains the dominant AC charging standard in Europe, advancements in ultra-fast DC charging (CCS, Tesla Superchargers) are changing the landscape. However, since most home and workplace charging still relies on AC power, the Type 2 connector will remain relevant for years to come.
Potential Upgrades:
Higher power AC charging (beyond 22 kW).
Bi-directional charging (V2G – Vehicle-to-Grid).
Enhanced smart charging features.
The Type 2 EV connector is a versatile, future-proof, and widely adopted standard that offers safe and efficient charging for electric vehicles. Its three-phase support, automatic locking, and high compatibility make it the go-to choice for European EV owners.
As the EV market grows, understanding charging standards like Type 2 will help consumers make informed decisions about home chargers, public charging, and long-distance travel. Whether you own a Tesla, Volkswagen ID.4, or Hyundai Kona Electric, the Type 2 connector ensures seamless and reliable charging across Europe and beyond.
Type 2 is the European standard for AC charging.
Supports up to 22 kW (three-phase) for faster charging.
Compatible with most modern EVs, including Tesla.
Safer and more advanced than Type 1 (J1772).
Likely to remain dominant as EV adoption grows.
For EV owners, investing in a Type 2 home charger or ensuring compatibility with public stations is crucial for a smooth electric driving experience. As charging technology evolves, the Type 2 connector will continue to play a key role in Europe’s transition to sustainable mobility.
