Introduction
As electric vehicles (EVs) continue to gain popularity, the demand for faster and more efficient charging solutions has grown exponentially. Among the latest innovations in EV charging technology is the DC Wallbox charger, a compact and powerful solution designed to meet the needs of both individual EV owners and businesses. But what exactly is a DC Wallbox charger, and how does it differ from traditional AC chargers? This article delves into the workings, benefits, and applications of DC Wallbox charging, providing a detailed overview of this cutting-edge technology.

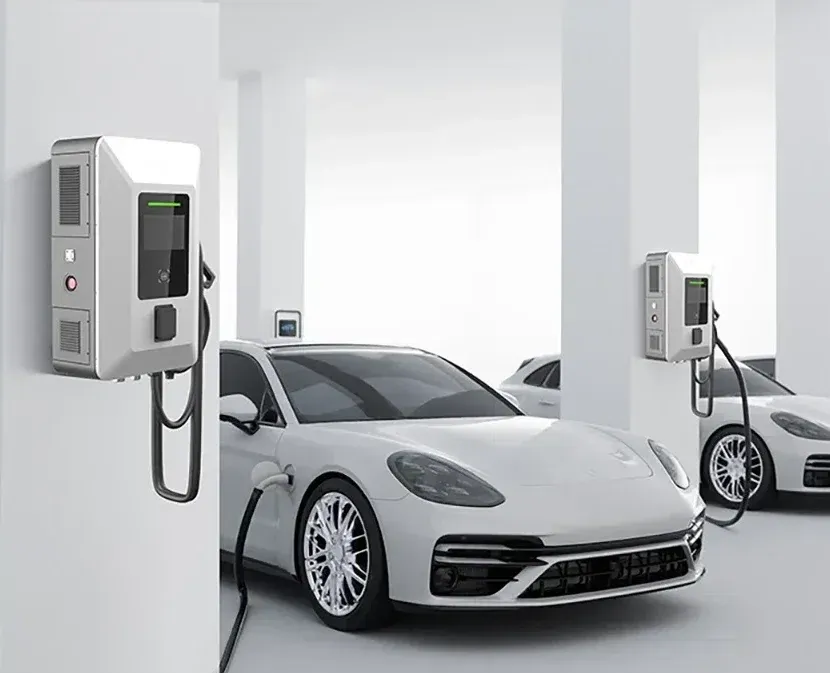

What Is a DC Wallbox EV Charger?
A DC Wallbox EV charger is a wall-mounted, direct current (DC) fast charger specifically designed for electric vehicles. Unlike alternating current (AC) chargers, which rely on the vehicle’s onboard charger to convert AC power into DC power for the battery, DC Wallbox chargers bypass this step entirely. Instead, they deliver DC power directly to the vehicle’s battery, significantly reducing charging times. This makes DC Wallbox chargers an ideal choice for EV owners who need quick charging solutions or businesses looking to provide efficient charging services to their customers.
DC Wallbox chargers are particularly well-suited for locations where space is limited but high-power charging is required. Their compact design and advanced features make them a versatile option for homes, workplaces, and public charging stations.
How Does a DC Wallbox Charger Work?
The operation of a DC Wallbox charger involves several key steps, each designed to ensure fast, safe, and efficient charging. Here’s a breakdown of how these chargers work:
AC-to-DC Conversion
The primary function of a DC Wallbox charger is to convert alternating current (AC) from the power grid into direct current (DC), which is the form of electricity required by an EV’s battery. Unlike AC chargers, which rely on the vehicle’s onboard charger for this conversion, DC Wallbox chargers perform this process internally. This allows them to deliver power directly to the battery, bypassing the vehicle’s onboard systems and enabling faster charging.
Communication with the Vehicle
Before charging begins, the DC Wallbox charger communicates with the vehicle’s Battery Management System (BMS). This communication ensures that the charger delivers the appropriate amount of power based on the battery’s current state of charge, temperature, and capacity. The charger and vehicle typically communicate using standardized protocols such as CCS (Combined Charging System) or CHAdeMO, which are widely adopted in the EV industry.
Smart Power Delivery
Once the charger and vehicle have established communication, the DC Wallbox charger adjusts its power output to match the battery’s requirements. This dynamic power delivery ensures that the battery is charged as quickly as possible without compromising safety or longevity. For example, the charger may deliver higher power levels when the battery is nearly empty and gradually reduce the power as the battery approaches full capacity.
Safety Monitoring
Safety is a top priority in DC Wallbox charging. These chargers are equipped with advanced monitoring systems that continuously track key parameters such as voltage, current, and temperature. If any irregularities are detected, the charger can automatically adjust its output or stop charging altogether to prevent damage to the vehicle or the charging equipment.
Key Advantages of DC Wallbox Charging
DC Wallbox chargers offer several significant advantages over traditional AC chargers, making them an attractive option for a wide range of users. Here are some of the key benefits:
Faster Charging Times
One of the most notable advantages of DC Wallbox chargers is their ability to significantly reduce charging times. By delivering power directly to the battery, these chargers can achieve charging speeds that are up to 75% faster than those of AC chargers. This is particularly beneficial for EV owners who are on the go and need to recharge their vehicles quickly.
Smart Power Management
DC Wallbox chargers are equipped with advanced load balancing capabilities, which help prevent grid overload and ensure efficient energy use. This is especially important in settings where multiple chargers are operating simultaneously, such as public charging stations or workplace charging hubs. By intelligently distributing power, these chargers can optimize energy consumption and reduce the risk of power outages.
Bi-Directional Charging (Vehicle-to-Home Functionality)
Many DC Wallbox chargers support bi-directional charging, also known as Vehicle-to-Home (V2H) functionality. This feature allows the EV’s battery to serve as a backup power source for the home or building during power outages or periods of high energy demand. By storing energy in the vehicle’s battery and releasing it when needed, users can reduce their reliance on the grid and lower their energy costs.
Compact and Space-Saving Design
Despite their high power output, DC Wallbox chargers are designed to be compact and space-efficient. Modern DC Wallbox units are approximately 30% smaller than their first-generation counterparts, making them easier to install in a variety of settings. This compact design is particularly advantageous for urban environments or locations with limited space.

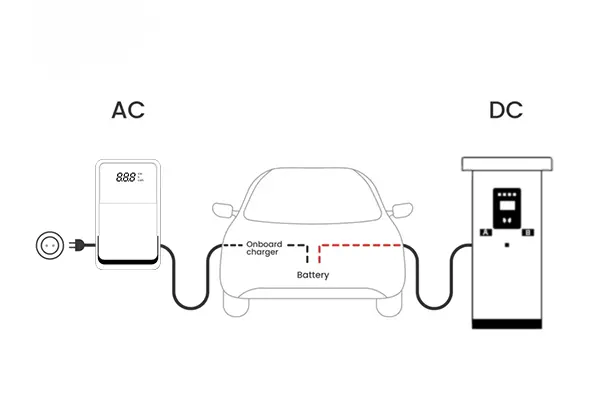

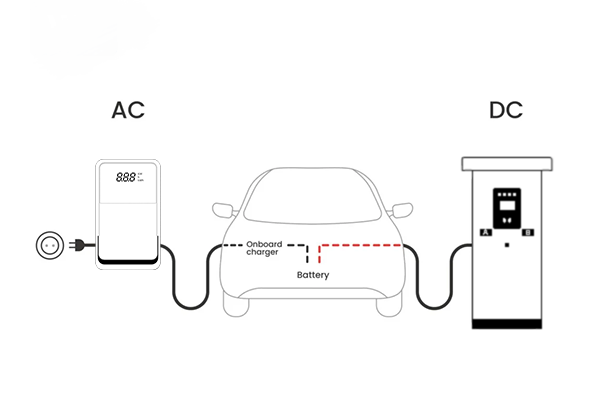

Onboard Charger (OBC) vs. DC Wallbox: What’s the Difference?
To fully understand the benefits of DC Wallbox chargers, it’s important to compare them with onboard chargers (OBCs), which are commonly found in electric vehicles. Here’s a closer look at the key differences between these two technologies:
Functionality
An onboard charger is an integral component of an electric vehicle that converts AC power from the grid into DC power for the battery. It is typically designed to handle a 220V AC input and convert it to high-voltage DC suitable for the vehicle’s battery. In contrast, a DC Wallbox charger performs this conversion externally, delivering DC power directly to the battery without relying on the vehicle’s onboard systems.
Charging Speed
Because DC Wallbox chargers bypass the vehicle’s onboard charger, they can deliver power to the battery much faster than AC chargers. This makes them ideal for situations where time is of the essence, such as long-distance travel or commercial charging stations.
Safety Features
Both onboard chargers and DC Wallbox chargers are equipped with safety mechanisms to protect the vehicle and charging equipment. However, DC Wallbox chargers often include additional monitoring systems that provide real-time data on voltage, current, and temperature, ensuring a safer and more reliable charging experience.
Flexibility
While onboard chargers are limited by the vehicle’s design and capabilities, DC Wallbox chargers offer greater flexibility in terms of power output and compatibility. This makes them a more versatile option for users who own multiple EVs or plan to upgrade their vehicles in the future.
Applications of DC Wallbox Chargers
DC Wallbox chargers are suitable for a wide range of applications, from residential use to commercial and public settings. Here are some of the most common use cases:
Residential Charging
For homeowners who want to reduce charging times and take advantage of bi-directional charging capabilities, DC Wallbox chargers are an excellent choice. Their compact design makes them easy to install in garages or driveways, while their high power output ensures fast and efficient charging.
Workplace Charging

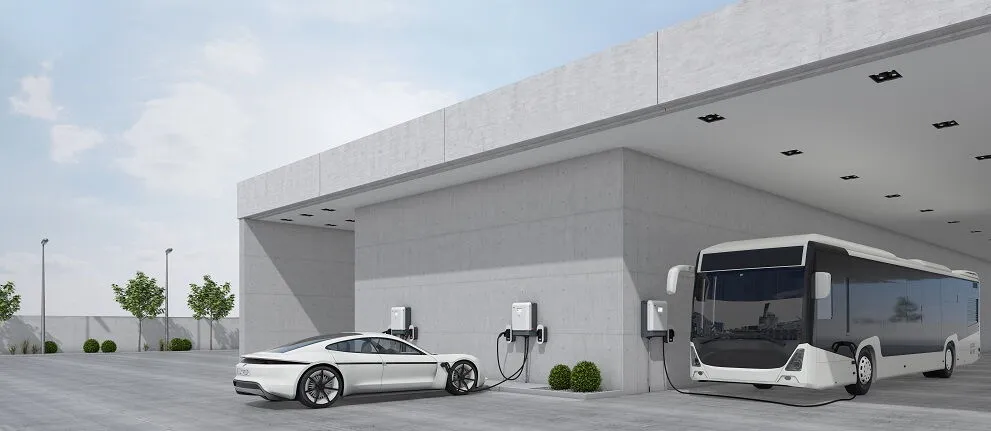

Many businesses are now installing EV charging stations to attract and retain employees who drive electric vehicles. DC Wallbox chargers are particularly well-suited for this purpose, as they can accommodate multiple vehicles and provide fast charging during the workday.
Public Charging Stations
Public charging stations, such as those found in shopping centers, parking lots, and highway rest stops, often require high-power chargers to serve a large number of vehicles. DC Wallbox chargers are an ideal solution for these locations, offering fast charging speeds and advanced power management features.
Fleet Charging
Companies that operate electric vehicle fleets, such as delivery services or ride-sharing platforms, can benefit from the efficiency and reliability of DC Wallbox chargers. These chargers can help reduce downtime and keep vehicles on the road for longer periods.
Conclusion
DC Wallbox charging represents a significant advancement in EV charging technology, offering faster charging times, greater efficiency, and enhanced flexibility compared to traditional AC chargers. Whether you’re an individual EV owner looking to upgrade your home charging setup or a business seeking to provide reliable charging solutions for customers and employees, DC Wallbox chargers are a powerful and versatile option. As the demand for electric vehicles continues to grow, innovations like DC Wallbox charging will play a crucial role in shaping the future of transportation and energy use.
