Introduction
The transition to electric vehicles (EVs) marks a monumental shift in the way we think about transportation. At the heart of this transition are EV charging stations, which are integral to the daily operation of electric vehicles. As EV adoption continues to rise globally, understanding how these charging stations work becomes increasingly important for consumers, businesses, and governments. In this article, we will explore the intricacies of how EV charging stations function, from the moment you plug in your car to when it's ready to hit the road again.
How the Charging Process Works
When you plug your EV into a charging station, the process is far from simple. A series of sophisticated steps are involved, ensuring that the vehicle gets the appropriate power needed for a safe and efficient charge. Let’s break it down step-by-step:
1. Initial Handshake
The moment the EV is connected to the charger, the process begins with a series of communications between the vehicle and the charging station. This is known as the "initial handshake," where the charging station and the EV exchange critical information. The charging station validates the connection to ensure that it’s safe to deliver power.
During this stage, the vehicle reports its current battery status, such as its current charge level, battery health, and any specific charging preferences it might have. This information allows the charger to tailor its output to the needs of the car.
2. Safety Systems Activate
Safety is paramount in electric vehicle charging. As part of the handshake process, the charging station activates a series of safety mechanisms. These include checks for proper grounding, ensuring there are no electrical faults, and confirming that the voltage and current levels are within safe operating limits.
The vehicle also runs diagnostics on its own battery to ensure that no issues are present that could lead to overcharging, overheating, or other dangerous scenarios.
3. Power Negotiation
Once the initial safety protocols are in place, the next step is power negotiation. This is where the charging station and the vehicle agree on the amount of power that will be delivered. EV chargers come in various levels (Level 1, Level 2, and DC fast charging), each offering different power outputs, so the vehicle requests a specific power level based on its capabilities and current charge state.
The charging station will then confirm the available power capacity and adjust its output accordingly. The vehicle and the station work together to set charging parameters that are safe and efficient.
4. Active Charging
Now that the power negotiation has taken place, active charging can begin. The charging station begins to deliver electrical current to the vehicle’s battery, carefully monitoring the delivery to ensure optimal charging. During this process, several factors are constantly being monitored to ensure everything is functioning properly.
Real-Time Monitoring:
Temperature
Both the charger and the vehicle continuously monitor temperature to prevent overheating of the battery, charging components, or cables.
Voltage Levels
Voltage is adjusted to ensure that it remains within safe limits. Too high a voltage can damage the battery, while too low can result in inefficient charging.
Current Flow
The current is regulated to ensure the vehicle is receiving the appropriate power.
Battery Response
The vehicle’s battery management system (BMS) monitors how the battery is accepting the charge and makes adjustments as necessary.
5. Charge Management
Charging doesn’t just involve pumping power into the vehicle’s battery; it also requires intelligent management to ensure the battery is charged in the most efficient and safest manner possible.
Dynamic Power Adjustment:
Charging power isn’t a one-size-fits-all process. Based on the vehicle’s needs and the battery’s current state of charge, the power output from the charging station may be dynamically adjusted throughout the session. As the battery nears full charge, the current flow is gradually reduced to prevent overcharging.
Thermal Management:
Battery temperature is a critical factor in the charging process. If the battery gets too hot, it can suffer from long-term damage or even malfunction. Many EVs come with an active cooling system that works alongside the charging station’s cooling mechanisms to maintain an optimal temperature during the charging process.
Safety System Monitoring:
In addition to thermal and power monitoring, the charging station is constantly monitoring other safety parameters, ensuring that everything from the connectors to the wires remains safe and secure. If a fault is detected at any point, the charging process is paused, and the user is notified.
How Does EV Charging Work?
At its core, the basic principle of EV charging is not so different from charging other household devices. An EV charger pulls electrical current from the power supply and delivers it to the vehicle’s battery. This is typically done through an alternating current (AC) or direct current (DC) depending on the type of charger being used.
Level 1 Charging
This is the slowest type of charging, typically using a standard 120-volt outlet found in most homes. It’s primarily used for overnight charging or when other options aren’t available.
Level 2 Charging
This method uses a 240-volt supply and is much faster than Level 1, making it the most common choice for home charging and public stations. These chargers are found in most public charging locations.
DC Fast Charging
This is the fastest form of charging, found at commercial EV charging stations. DC fast chargers deliver high power directly to the vehicle’s battery, reducing charging time significantly, often to 30 minutes or less for an 80% charge.
While the specific power delivery method may differ, the overall process of transferring electricity from the charger to the battery remains fundamentally the same.

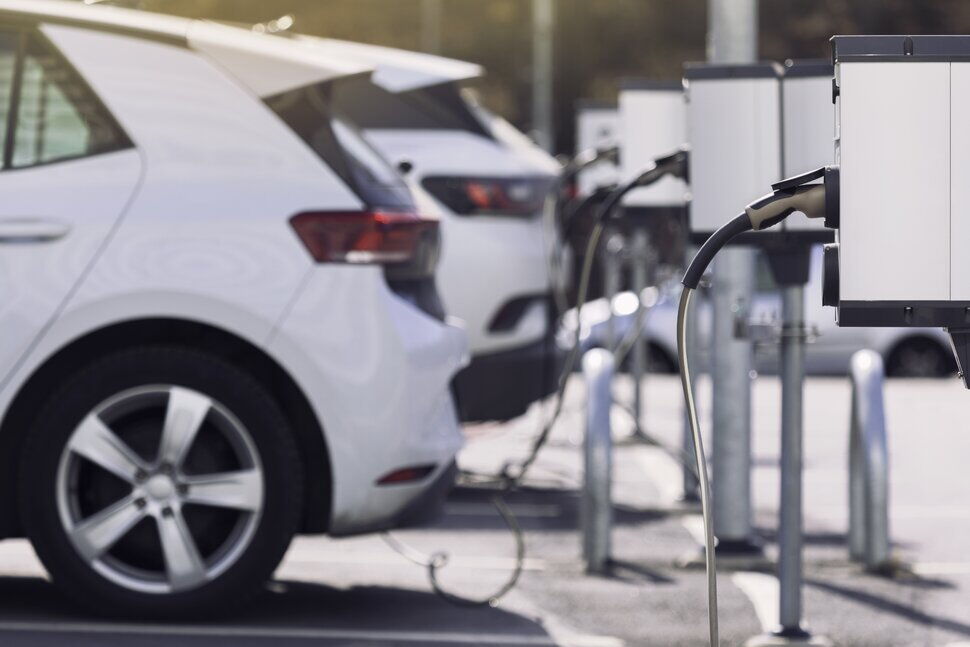

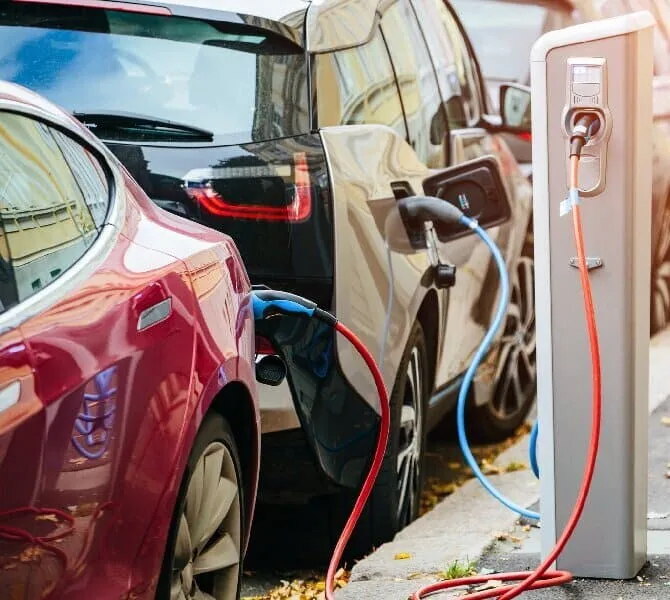

How Do Public EV Charging Stations Work?
Public EV charging stations have become more common as the demand for electric vehicles grows. Understanding how to use these stations effectively can make a big difference in your EV experience.
When you park your EV in front of a charging station, there are a few factors you’ll need to consider. Some charging stations are free to use, while others may require payment. Payment options can include credit cards, mobile apps, RFID cards, or subscription-based systems.
Many charging stations are located in public spaces, such as shopping centers, office parks, and highway rest stops. These stations often offer Level 2 or DC fast charging to accommodate the various needs of different EV owners.
Before using a charging station, be sure to look for posted instructions or signs indicating how to initiate the charging session. Some stations may require you to swipe a card, scan a QR code, or use a smartphone app to start the process.
1. Access Control and Payment Options
Depending on the location, public charging stations may use access control mechanisms to restrict who can use the chargers. These may include:
Key Fobs or RFID Cards
Many stations require you to swipe a key fob or an RFID card before you can access the charger.
Mobile Apps
Many charging networks now allow users to start and monitor charging via smartphone apps.
Credit Card Payments
Some stations may allow direct payment through credit or debit cards, making it easier for casual users.
Some public charging stations even allow owners to set pricing for their own charging stations, letting businesses or organizations control when, how, and for how long others can use their chargers.
2. Commercial Charging Solutions
For businesses and organizations looking to add EV charging stations to their properties, there are a range of commercial charging solutions available. EvoCharge, for example, offers customizable charging stations that allow businesses to manage charging times, output levels, and access control using RFID technology.
These systems can also be connected to a network for monitoring, diagnostics, and even payment processing, enabling businesses to track usage and revenue from their charging stations. This makes it easier for organizations to add EV charging infrastructure in a way that is both efficient and profitable.
3. Features of Public Charging Stations
Many commercial charging solutions come with a variety of features that allow property owners to manage the charging experience. Some of the most common features include:
Output Control
Ability to regulate power output depending on the needs of the vehicle and available grid power.
Time-Based Charging
Set specific charging hours or time limits for public use, especially in busy locations.
Payment Integration
Some stations are integrated with networks that allow users to pay for their charge through apps or credit cards.
Conclusion
EV charging stations are a critical component of the growing electric vehicle infrastructure. From the moment you plug in your car to when it’s ready to go, a complex but highly coordinated process ensures that the vehicle is charged safely and efficiently. As technology continues to evolve, so too will the systems that power these stations, enabling faster, smarter, and more efficient charging solutions for the next generation of electric vehicles.
Whether you’re charging at home or using a public station, understanding the process behind EV charging can help you make the most of your electric vehicle experience.
