As the global shift toward electric vehicles (EVs) accelerates, the need for standardized charging infrastructure has become paramount. One of the most critical elements in ensuring a smooth transition to a world powered by electric mobility is the standardization of connectors and charging systems. Two of the most widely adopted charging standards are SAE J1772, which is prevalent in North America, and IEC 62196, used globally, particularly in Europe and Asia. While both of these standards serve the same purpose—providing a reliable interface between electric vehicles and charging stations—they differ significantly in their design, applications, and regions of adoption.
Understanding the differences between SAE J1772 and IEC 62196 is essential for manufacturers, charging station operators, and electric vehicle users, as it can influence the choice of equipment and impact the overall EV charging experience. This article takes an in-depth look at the SAE J1772 and IEC 62196 standards, exploring their histories, features, differences, and the impact they have on the EV charging infrastructure.
The SAE J1772 connector, also known as the J plug or Type 1 connector, is a North American standard for EV charging, developed by the Society of Automotive Engineers (SAE). It serves as the primary interface for connecting electric vehicles (EVs) to the charging infrastructure across the United States and Canada. SAE J1772 has become synonymous with Level 1 (120V) and Level 2 (240V) charging stations in North America, offering a safe, efficient, and widely compatible solution for EV charging.
SAE J1772 is the most common charging connector in North America, and as of now, nearly every non-Tesla EV manufactured for the North American market is equipped with a J1772-compliant inlet. This universal compatibility has made it the standard for charging infrastructure in the region.
The J1772 connector primarily supports single-phase alternating current (AC) power delivery, which is ideal for home charging and public charging stations, especially in residential areas.
Tesla vehicles use a proprietary charging port, but they are designed to work with SAE J1772 connectors through an included adapter. This makes it easy for Tesla owners to access the extensive network of Level 1 and Level 2 charging stations available across North America.

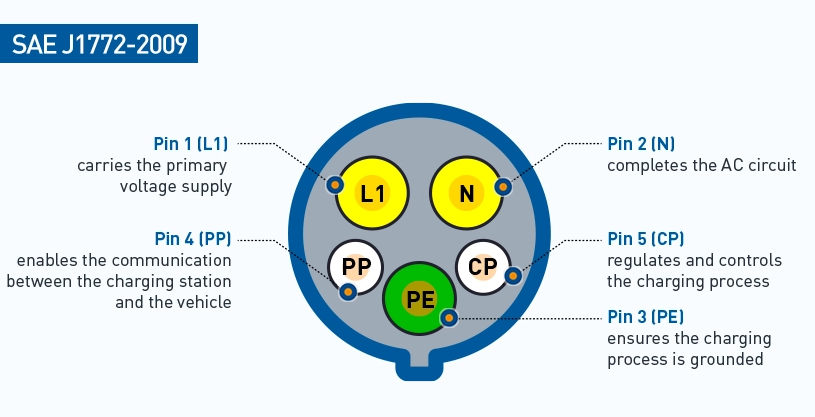

The SAE J1772 connector has five pins, which include two for power (L1 and L2), one for ground, and two for communication (control pilot and proximity) between the vehicle and the charging station.
SAE J1772 supports charging speeds of up to 19.2 kW at Level 2, making it suitable for both home and public charging. It is generally slower than DC fast charging systems, but still provides a reasonable charge time for most daily use cases.

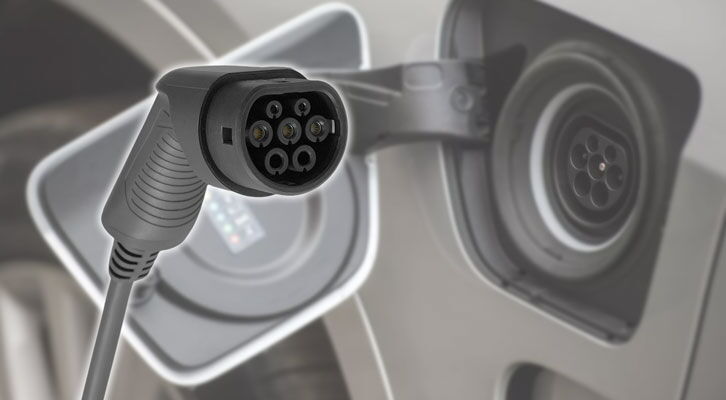

The IEC 62196 standard, developed by the International Electrotechnical Commission (IEC), sets the guidelines for EV connectors and charging stations around the world. Unlike SAE J1772, which is largely used in North America, IEC 62196 serves as a global standard, helping to ensure that EVs and charging stations in different countries and regions can communicate effectively. This standard is critical as the global EV market continues to grow, providing consistency in charging connectors and ensuring interoperability across different regions.
The IEC 62196 standard includes various types of connectors, most notably Type 1 and Type 2 connectors, as well as CCS (Combined Charging System) for DC fast charging, which has become increasingly popular.
Prior to the establishment of IEC 62196, different countries and manufacturers had proprietary charging connectors, leading to confusion and difficulty for EV users. The introduction of this standard helped unify the charging experience and made it easier for international travelers to use EVs in different regions.
IEC 62196 includes several different types of connectors, each designed for specific applications:
Type 1 (J1772): This is the same connector used in North America and Japan for single-phase AC charging.
Type 2: A more advanced connector designed for three-phase AC charging, primarily used in Europe. Type 2 connectors are capable of handling higher power levels and are considered the European standard.
CCS (Combined Charging System): CCS connectors enable DC fast charging and can support both Type 1 and Type 2 connectors for high-speed charging up to 350 kW.
Four Charging Modes: IEC 62196 also defines the various charging modes:
Mode 1: Basic charging using a household socket.
Mode 2: Charging using a special cable with integrated control and protection.
Mode 3: Charging using a dedicated EVSE (Electric Vehicle Supply Equipment) unit with control and protection.
Mode 4: High-speed DC fast charging.
Three-Phase Power: A key advantage of IEC 62196, particularly the Type 2 connector, is its ability to support three-phase AC power, which enables faster charging speeds and higher power delivery, ideal for public charging stations and commercial applications.
While both standards serve the same fundamental purpose—connecting electric vehicles to charging stations—they have notable differences in terms of design, power levels, installation, and regional adoption. Here’s a closer look at these key differences.
SAE J1772:
Designed primarily for single-phase AC charging, the SAE J1772 connector is ideal for home use and Level 2 charging stations.
It provides 19.2 kW of power for Level 2 charging, sufficient for most residential and light commercial applications.
The connector has five pins and is compatible with standard North American household 120V and 240V electrical systems.
IEC 62196:
IEC 62196 Type 2 connectors support three-phase AC power, enabling higher charging speeds—up to 43 kW for Type 2 and even more with DC fast charging (CCS).
With seven pins, the connector is designed for both AC and DC charging, allowing it to handle more complex charging systems.
The Type 2 connector is the European standard for EV charging, designed for more advanced infrastructure.
SAE J1772:
Typically supports Level 1 (120V) and Level 2 (240V) charging speeds.
Level 2 charging provides up to 19.2 kW, which can charge most EVs in 4-8 hours, depending on the battery capacity.
Ideal for home charging stations and public Level 2 chargers across North America.
IEC 62196:
Type 2 connectors can support three-phase AC charging and DC fast charging (with CCS) up to 350 kW.
DC fast charging is becoming increasingly popular for highway rest stops and commercial charging stations, allowing for much quicker charging times—sometimes as little as 30 minutes for an 80% charge.
The three-phase capabilities make the IEC 62196 system better suited for high-demand, commercial, and public charging infrastructures.
SAE J1772:
The SAE J1772 connector is dominant in North America, with nearly all EVs and charging stations in the region supporting this connector.
The standard is tailored to North American electrical systems, including 120V and 240V power grids.
Tesla vehicles in North America also use the J1772 connector with the included adapter for third-party charging stations.
IEC 62196:
The IEC 62196 Type 2 connector is the standard in Europe and Asia, where three-phase AC power systems are more common.
Type 2 connectors have been adopted by almost all European automakers, making them the preferred choice for EV infrastructure across the continent.
CCS Type 2 has also become the standard for DC fast charging in Europe, offering faster charging speeds for long-distance travel.
SAE J1772:
Installation of SAE J1772 connectors is relatively simple, requiring single-phase AC power and compatible electrical systems.
Most Level 1 and Level 2 charging stations in North America already support the J1772 connector, simplifying installation and reducing setup costs.
Maintenance is relatively low, as the system operates at moderate power levels with fewer components compared to high-speed DC chargers.
IEC 62196:
Installation of IEC 62196 connectors, particularly for Type 2 and CCS DC fast chargers, is more complex. It often requires three-phase AC power and a more sophisticated electrical infrastructure.
For DC fast charging, the setup can be costly and require specialized expertise, making installation and maintenance more expensive compared to the simpler J1772 systems.
The choice between SAE J1772 and IEC 62196 connectors impacts EV users in several ways. For North American consumers, the widespread availability of SAE J1772 charging stations makes it easy for owners to find compatible chargers. Tesla’s use of a J1772 adapter further increases the convenience of this standard for users.
For European and Asian consumers, the prevalence of IEC 62196, particularly Type 2 connectors and CCS DC fast charging, ensures fast and efficient charging options. As EV adoption continues to rise, especially in long-distance travel and commercial applications, the adoption of high-speed DC charging is becoming increasingly important.
As electric vehicle adoption grows globally, the EV industry is pushing toward greater standardization and interoperability. Efforts are underway to ensure global compatibility between SAE J1772 and IEC 62196, which would facilitate smoother travel for EV owners across regions. Moreover, emerging technologies like wireless charging and bidirectional charging are likely to influence the future of EV infrastructure.
SAE J1772 and IEC 62196 represent the current evolution of electric vehicle charging standards. SAE J1772, with its widespread use in North America, has become the go-to connector for home and public charging stations in the region. On the other hand, IEC 62196, with its three-phase power capabilities and DC fast charging support, is the preferred choice in Europe and other parts of the world. Understanding the differences between these standards is crucial for EV owners, infrastructure developers, and manufacturers, as it helps navigate the complexities of global electric mobility. With the ongoing development of universal charging systems and faster charging technologies, the future of EV charging looks bright, offering seamless experiences for users across the globe.
