In the world of electric vehicle (EV) chargers, ensuring that the equipment can perform safely and efficiently in various environments is crucial. One of the most important factors to consider when selecting EV charging equipment is its Ingress Protection (IP) rating. IP ratings are standardized codes that define the level of protection an enclosure provides against both solid particles (such as dust) and liquids (such as water). This guide will delve into the significance of IP ratings, helping business owners understand how they impact the durability, safety, and reliability of EV chargers.

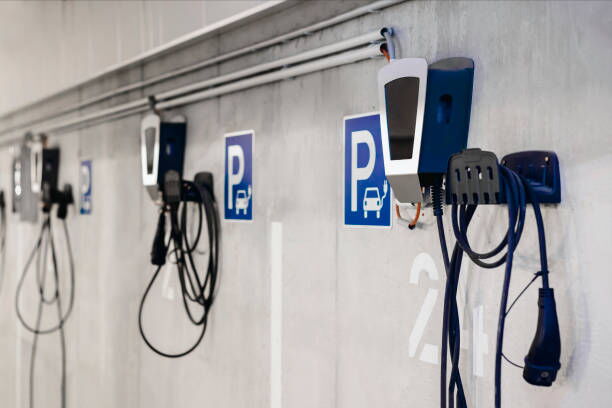

Public EV Charger

What Is an IP Rating?

An IP rating is a two-digit code that specifies the protection level provided by an enclosure. The first digit represents the protection against solid particles, such as dust, while the second digit represents the protection against liquids, including water. The higher the number, the greater the protection level offered. Understanding these ratings is critical for choosing the right EV charger, as it ensures that the charger can withstand environmental challenges such as dust, moisture, and other harsh elements.

Breaking Down IP Ratings

IP ratings are composed of two digits:

1. First Digit – Protection Against Solid Objects

The first digit in the IP rating indicates how well the device is protected against dust and other solid particles. The scale ranges from 0 (no protection) to 6 (completely dust-tight). This rating is important for ensuring that the internal components of the charger remain safe from dust, dirt, and debris that may affect its performance.

2. Second Digit – Protection Against Liquids

The second digit refers to the protection level against water. It ranges from 0 (no protection) to 9K (protection against high-pressure water jets and steam). This is essential for protecting chargers against water ingress, which can cause malfunctions, short circuits, or even electrical hazards.

For example, EV chargers may have IP ratings like IP54, IP65, or IP67:

IP54: Protected against limited dust ingress and water splashes from any direction.

IP65: Dust-tight and protected against water jets from any direction.

IP67: Dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.

These ratings are common in EV chargers because they provide adequate protection against the elements while maintaining optimal charging performance.

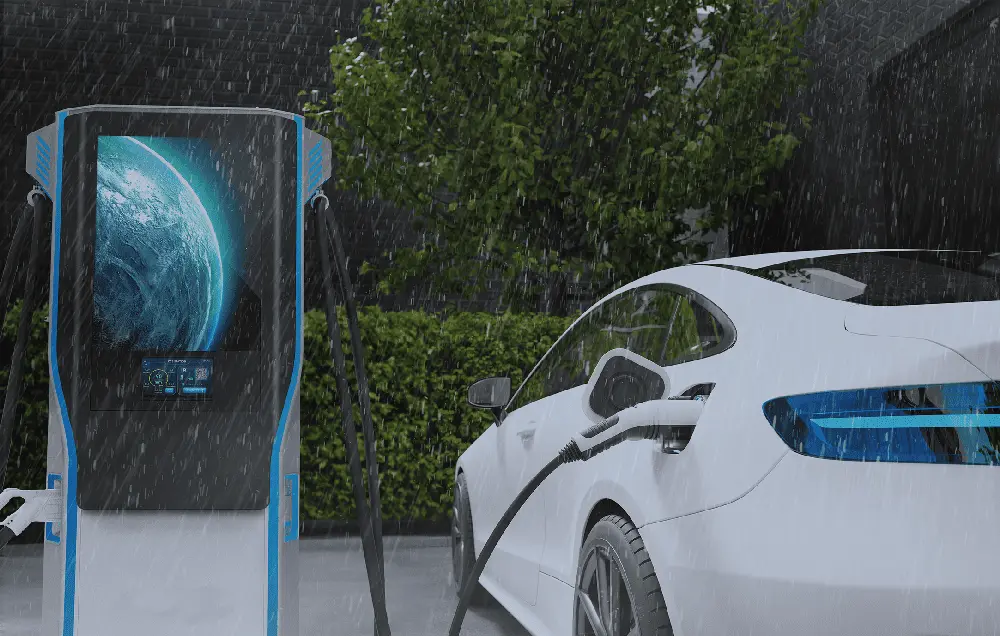

IP Ratings for EV Charger

The Importance of IP Ratings for EV Chargers

EV chargers, particularly those installed outdoors or in environments exposed to elements like dust, rain, and humidity, need to be built with appropriate IP ratings to ensure safe and efficient operation. Here’s why choosing the right IP rating is so important:

1. Environmental Protection

EV chargers are often exposed to outdoor elements, including rain, snow, and dirt. For example, a DC charger installed in a parking lot or at a public charging station must be protected from the ingress of water, dirt, and debris. Without an appropriate IP rating, dust could damage internal components, and water could lead to short circuits or equipment failure.

Dust Protection: Dust can cause damage to sensitive electrical components, including the charger’s wiring, connectors, and circuit boards. A higher IP rating, such as IP65 or IP67, ensures that the charger remains free from dust and dirt that can affect its functionality and performance.

Water Protection: EV chargers are also at risk from water exposure due to rain, snow, or splashes from car washing. A suitable IP rating ensures that water cannot enter the charger and cause damage. For example, IP67 chargers can be submerged in up to 1 meter of water for 30 minutes, making them ideal for areas prone to flooding or heavy rain.

2. Enhanced Safety

Protecting chargers from water and dust is essential not only for their durability but also for safety. Water ingress into the charger could result in short circuits, sparking, or even fires. Dust can accumulate inside the unit, leading to overheating or obstruction of ventilation systems.

By choosing EV chargers with higher IP ratings, such as IP65 or IP67, you ensure that the chargers remain safe for use in public or semi-public spaces, mitigating the risk of electrical hazards, fires, or electrocution.

3. Durability and Reliability

The harsh outdoor environments where EV chargers are often installed can lead to wear and tear on equipment over time. However, choosing a charger with an appropriate IP rating significantly extends the lifespan of the unit. A high IP rating ensures that the charger can withstand extreme weather conditions, reducing the need for frequent maintenance and replacements.

For example, IP65 rated chargers are dust-tight and water-resistant, meaning they can function reliably in outdoor environments without the need for constant repairs. With such durability, businesses can benefit from a long-lasting charging solution that remains in service for years.

4. Cost-Efficiency

While chargers with higher IP ratings may have an initial higher cost, they ultimately save money in the long run by reducing maintenance needs and repair costs. Chargers with low IP ratings may require frequent servicing or replacement due to exposure to dust and water, leading to higher operational costs.

An IP65 or IP67 rated charger offers long-term cost-efficiency due to its robust design and lower maintenance requirements. These chargers perform reliably in even the harshest conditions, making them a wise investment for businesses.

5. Compliance and Standards

In many regions, regulations and standards require certain IP ratings for electrical equipment used in public spaces or exposed environments. Meeting these standards is not only necessary for legal compliance but also for ensuring market acceptance.

For example, certain regions may mandate that public charging stations provide IP65 or IP67 protection to ensure user safety and equipment longevity. By choosing chargers that meet these standards, business owners can avoid regulatory challenges and ensure that their EV charging infrastructure is compliant with industry norms.

Choosing the Right IP Rating for Your EV Charger

When selecting an EV charger for your business or public space, it’s essential to consider the specific environmental conditions the charger will be exposed to. Here’s how to determine the right IP rating:

Evaluate the Location

Consider whether the charger will be installed indoors or outdoors. Outdoor chargers are more susceptible to weather conditions like rain, snow, and dust, so a higher IP rating (IP65 or IP67) is necessary.

Assess Environmental Factors

Think about the amount of dust or water exposure in the area. In high-traffic areas, such as public parking lots, an IP65 or IP67 charger will provide greater protection against water jets or immersion.

Understand Local Regulations

Ensure that the selected charger meets the IP rating requirements for your region, especially if the charger will be located in public or semi-public spaces.

Consider the Type of Charger

DC chargers often require higher IP ratings than AC chargers due to their more complex electrical components and higher power output. As a result, IP65 or IP67 is often the best choice for DC chargers.

Long-Term Investment

Although chargers with higher IP ratings may come with a higher initial investment, they provide better reliability, safety, and lower maintenance costs, making them more cost-effective over time.

Conclusion

IP ratings are a critical consideration when selecting EV chargers, especially for outdoor or public installations. With EV chargers exposed to weather conditions, dust, and water, choosing the right IP rating ensures the durability, reliability, and safety of the equipment. By selecting a charger with an appropriate IP rating—whether IP54, IP65, or IP67—business owners can ensure their chargers will withstand harsh environments, meet legal requirements, and provide consistent service for years to come. Investing in high-quality EV chargers with the right IP rating is key to building a safe, sustainable, and reliable EV charging infrastructure.
