As the electric vehicle (EV) revolution gains momentum, charging infrastructure has become a focal point for manufacturers, policymakers, and consumers alike. One of the most widely used and accessible types of EV charging systems is the Level 2 AC charging station. Positioned between the slower Level 1 chargers and the ultra-fast Level 3 DC fast chargers, Level 2 EV chargers strike an ideal balance of speed, cost, and convenience.
Level 2 charging stations are now found in homes, workplaces, parking garages, shopping centers, and public spaces. They are crucial in supporting the day-to-day charging needs of millions of EV drivers, helping ensure a seamless transition from internal combustion engine vehicles to sustainable electric transportation.
But what exactly is a Level 2 EV charger? How does it work, and why is it so important in today’s EV ecosystem? Let’s break it down.
A Level 2 EV charger uses a 240-volt power supply—similar to what powers large home appliances such as ovens or dryers—and delivers significantly more power to an electric vehicle’s battery than a standard Level 1 charger, which runs on a basic 120-volt outlet.
These chargers typically operate at current levels between 16 and 80 amps, though most home installations hover around 32 to 40 amps. This configuration allows Level 2 chargers to deliver charging speeds that are considerably faster than those of Level 1, making them an ideal solution for both residential and commercial use.
Depending on the vehicle and charger configuration, a Level 2 charger can deliver anywhere from 12 to 60 miles of driving range per hour of charging. This means an average EV with a 60 kWh battery can be fully charged in 4 to 8 hours—a timeframe that aligns well with overnight home charging or a full day parked at work.
For EV owners, one of the greatest advantages of Level 2 charging is the ability to install a unit at home. This provides the freedom to conveniently charge overnight, ensuring that the vehicle is ready to go each morning.
Installing a Level 2 charger at home requires access to a 240-volt circuit. Many homeowners already have these for laundry rooms or garages, and in some cases, installing a charger may simply require minor electrical work. However, depending on your home's electrical capacity, you may need to upgrade your panel or add a dedicated circuit, especially if you plan to install a high-amperage charger.
Smart Level 2 chargers also come with features such as:
Wi-Fi connectivity and mobile apps
Scheduled charging to take advantage of off-peak electricity rates
Load balancing to prevent overloads
Energy usage tracking to monitor charging costs and consumption
With the right setup, a Level 2 charger at home becomes more than just a plug—it’s a smart energy management tool.
Charging speed is a primary consideration for EV drivers. Level 2 EV chargers typically provide power ranging from 3 kW to 19.2 kW in the United States, with up to 22 kW available in Europe. However, the actual speed of charging depends on two factors:
1. The Power Output of the Charger
2. The Onboard Charging Capacity of the EV
Every electric vehicle has a built-in charger, often called an onboard charger, that determines how much power it can accept. For example, even if you connect a 19.2 kW Level 2 charger to your EV, if your car's onboard charger only accepts 11 kW, the maximum speed will be limited to that level.
Generally, Level 2 chargers deliver 10 to 75 miles (16 – 120 km) of range per hour of charging, depending on the vehicle and setup. That’s up to 19 times faster than Level 1 charging, which typically adds just 3 to 5 miles of range per hour.
While Level 2 chargers are significantly faster than Level 1, they don’t compete with DC fast chargers (Level 3), which can charge some EVs to 80% in under 30 minutes. However, for daily use, Level 2 is often more than sufficient and much more affordable to install and operate.

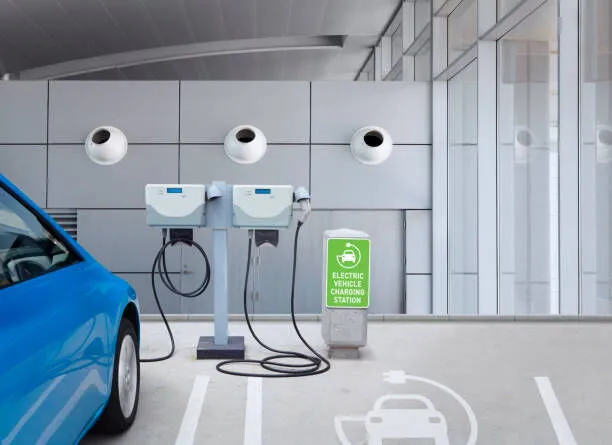

Level 2 charging stations aren’t just for homes—they’re widespread in public settings. In fact, they make up a significant portion of the public charging infrastructure across North America, Europe, and Asia.
You’ll find Level 2 AC charging stations in locations such as:
Office buildings
Retail centers and malls
Hotels and resorts
University campuses
Municipal parking lots
Hospitals and medical facilities
These stations provide a convenient way for drivers to “top off” while they go about their day. For instance, while shopping or dining, a couple of hours on a Level 2 charger can add 40–80 miles of range—enough to get most drivers through several more days of commuting.
Increasingly, businesses and municipalities are recognizing the value of providing EV charging as an amenity. It encourages customer visits, supports sustainability goals, and positions the location as forward-thinking and eco-conscious.
Installing Level 2 chargers, especially in shared or commercial settings, comes with the challenge of power load management. Large installations—such as those in multi-family residences or office buildings—can place significant strain on the electrical grid if not properly managed.
To address this, many Level 2 charging systems include dynamic load balancing and smart energy distribution. These technologies help ensure that power is shared efficiently among multiple chargers without overloading the system.
In residential installations, electricians often use a technique called load shedding or throttling, which reduces the amperage during peak times or based on the home's total energy consumption. This ensures the charger doesn’t draw more power than the home can handle safely.

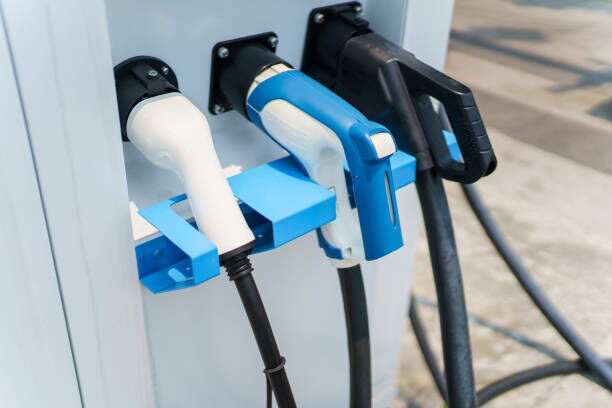

Level 2 EV chargers use standardized connectors to ensure compatibility with the vast majority of electric vehicles. In North America, the SAE J1772 connector is the universal standard for Level 2 charging, and nearly all EVs sold in the U.S. support it—except Tesla vehicles, which require an adapter.
In Europe, Level 2 chargers commonly use the Type 2 (Mennekes) connector. Tesla vehicles sold in Europe natively support the Type 2 standard.
Interoperability is key to the success of public charging networks. Most modern Level 2 charging stations are networked, meaning they can communicate with cloud services for:
Billing and payments
Session monitoring
Maintenance alerts
User access control
As a result, EV drivers can easily locate, start, and pay for a charging session using mobile apps or RFID cards—making Level 2 public charging seamless and user-friendly.
The cost of a Level 2 charger depends on the brand, amperage, features, and installation complexity. Here's a general breakdown:
Home chargers:
$400–$900 for the hardware
$500–$2,000 for professional installation, depending on electrical upgrades required
Commercial chargers:
$1,500–$5,000+ per unit, with installation costs ranging from $2,000 to $10,000 or more, depending on site conditions, networking requirements, and available infrastructure
Fortunately, government incentives, utility rebates, and tax credits are available in many regions to reduce these costs significantly. Programs such as the U.S. federal EV charger tax credit and state-level rebate programs encourage the adoption of home and public charging systems.
Widespread adoption of Level 2 chargers plays a critical role in the broader transition to electric vehicles. By enabling convenient daily charging, these stations help eliminate “range anxiety” and make EV ownership viable for a much larger segment of the population.
On a macro level, increased use of EVs reduces tailpipe emissions, curbs air pollution, and decreases dependence on fossil fuels. When Level 2 charging stations are paired with renewable energy sources like solar panels, the environmental benefits are even more significant.
From an economic perspective, businesses that invest in public Level 2 charging infrastructure may see increased foot traffic and longer customer dwell times, while also supporting ESG (Environmental, Social, and Governance) initiatives.
As EV adoption accelerates, the demand for flexible and efficient charging options will grow. Level 2 chargers are expected to remain the backbone of everyday charging—at home, at work, and in communities.
Future advancements may include:
Faster Level 2 chargers with higher power outputs
Bi-directional charging (V2G) to allow EVs to send energy back to the grid
AI-based smart load balancing for larger installations
Integration with solar and battery storage systems
Universal payment and access platforms to improve usability
Level 2 AC charging stations are more than just convenient—they are essential to the mass adoption of electric vehicles. Offering a significant boost in charging speed over Level 1 while remaining cost-effective and widely deployable, Level 2 chargers empower drivers to keep their EVs powered up wherever they go.
Whether installed at home, at work, or in public spaces, Level 2 EV chargers provide the reliability and flexibility that modern drivers expect. And as charging technology continues to evolve, these chargers will remain at the center of a cleaner, smarter, and more sustainable transportation future.
